Connecting the Main Controller Outputs to Ranger Converter 3000 Station Inputs
3.1.4. Connecting the Main Controller Outputs to Ranger Converter
3000 Station Inputs

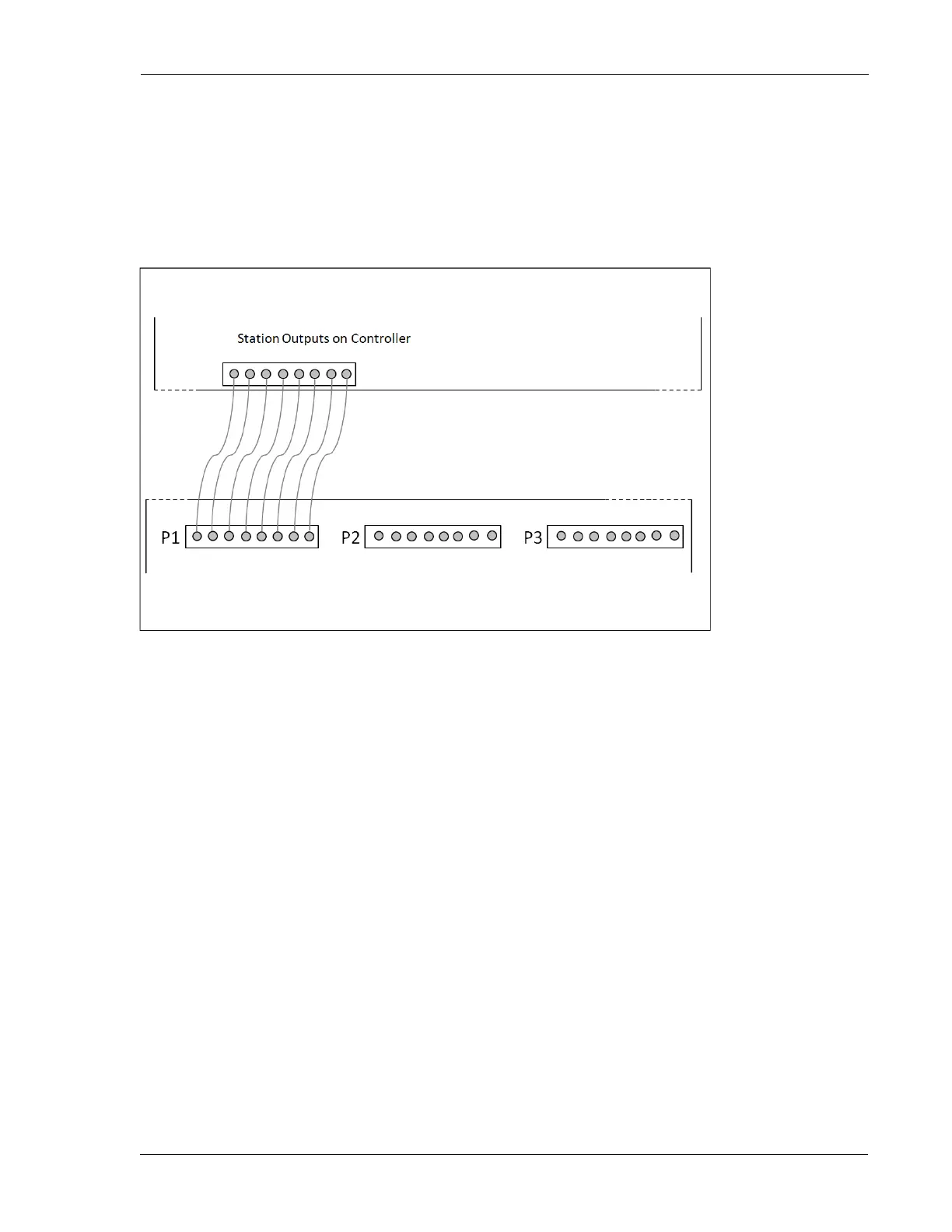

Using a flat head screwdriver, connect the main controller's outputs to the Ranger Converter 3000
station inputs. Refer to the illustration below and to the Ranger Converter 3000 Installation diagram at
the end of this chapter.
Ranger Converter
3000 Board
