Connecting the Ranger Converter 3000 Extender to the Board
3.1.9.
Connecting the Ranger Converter 3000 Extender to the Board
Use the expansion terminal to connect the optional Ranger Converter 3000 Extender to the Ranger
Converter 3000 Board enabling the expansion of up to 48 additional stations and a master valve.
Using a flat head screwdriver connect the wires as follows:
• Terminal 1 on the Ranger Converter 3000 Board connects to terminal 2 on the Ranger Converter 3000 Extender
Board.
• Terminal 2 on the Ranger Converter 3000 Board connects to terminal 1 on the Ranger Converter 3000 Extender
Board.
• Terminal 3 on the Ranger Converter 3000 Board connects to terminal 3 on the Ranger Converter 3000 Extender
Board.
• Terminal 4 on the Ranger Converter 3000 Board connects to terminal 4 on the Ranger Converter 3000 Extender
Board.

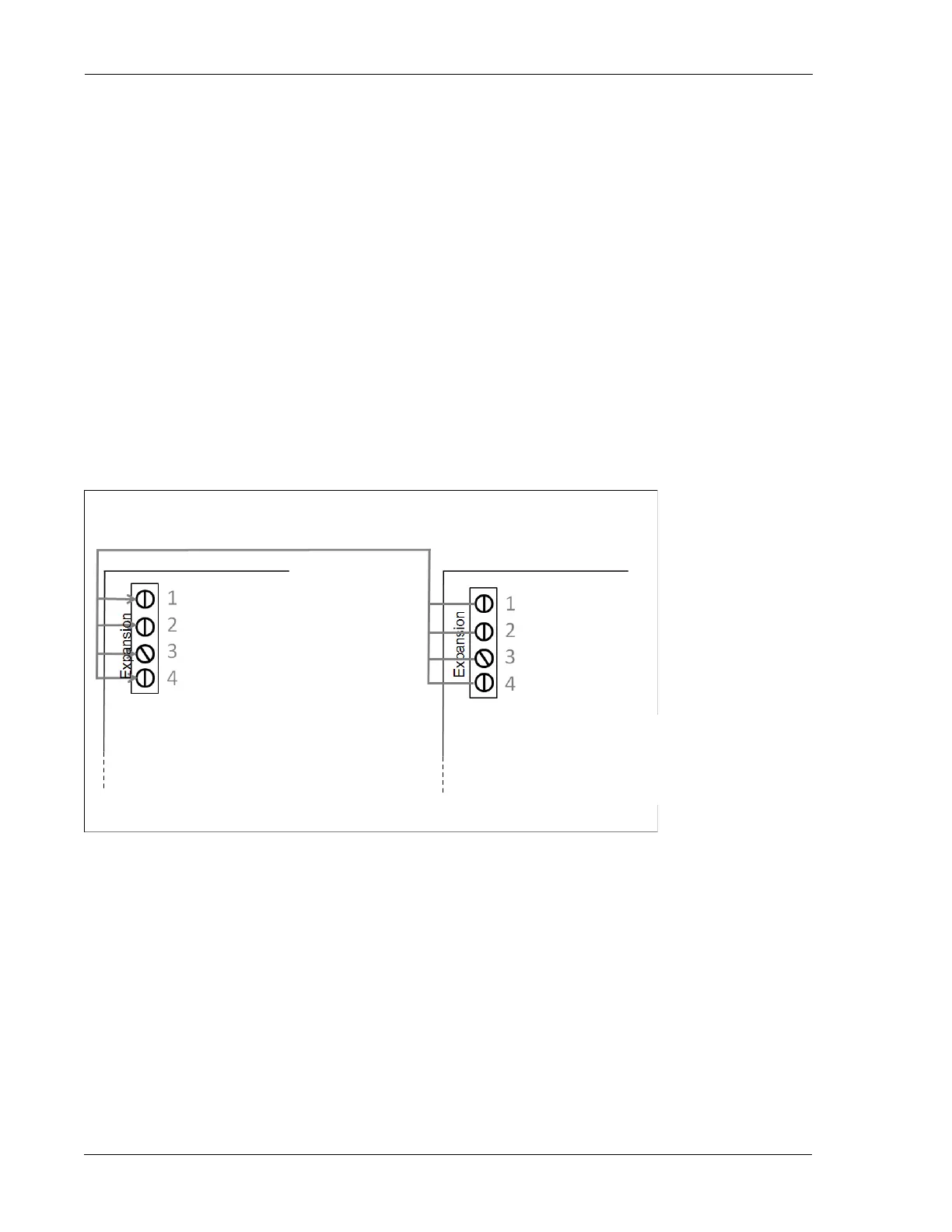

Note that terminal 1 is towards the top of the board. Also refer to the illustration below when connecting the
Ranger Converter 3000 Extender.
3000 Board
3000 Extender Board
