Ranger Converter 3000 Installation Diagram
3.2. Ranger Converter 3000 Installation Diagram

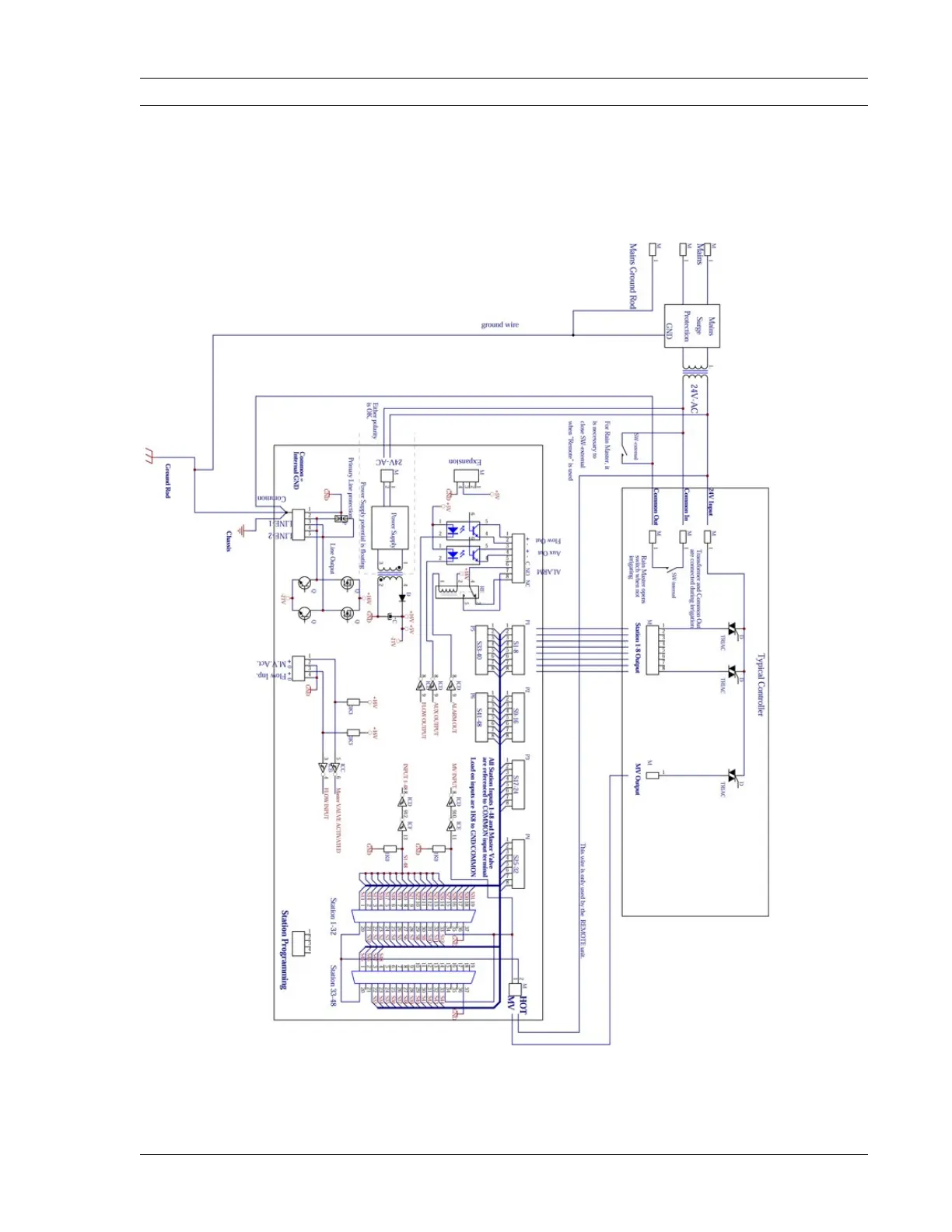

Refer to the Ranger Converter 3000 Installation diagram below for a full overview of the Ranger Converter
3000 Board and its terminal connections.
