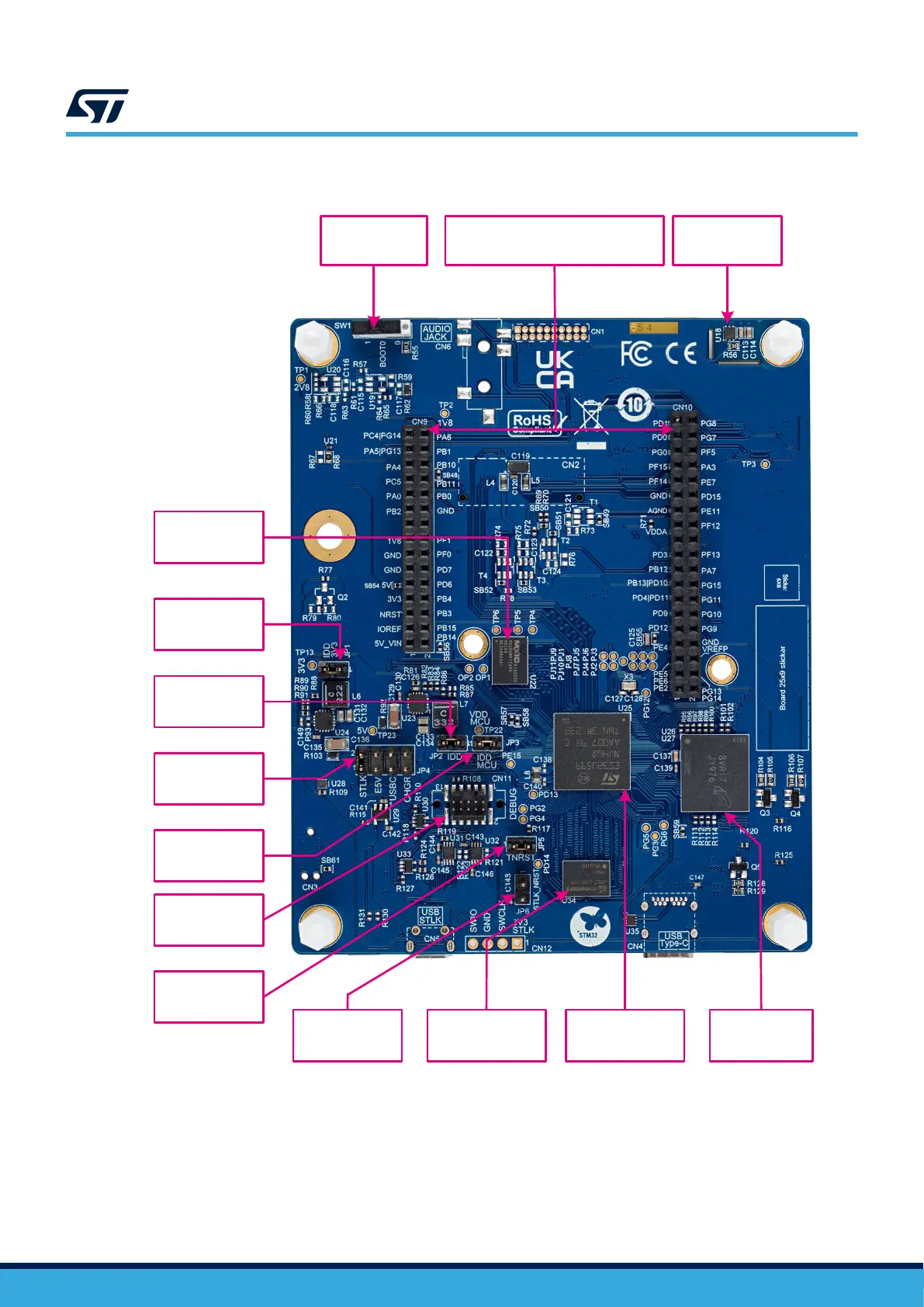

Figure 6. STM32U5A9J-DK bottom layout view

DT56158V1

Boot0 switch

SW1

Temperature

sensor (U18)

Expansion connectors

(CN9 and CN10)

IDD 3V3

header (JP1)

IDD

header (JP2)

IDD_MCU

header (JP3)

Power source

header (JP4)

MIPI10

connector

(CN11)

Hexadeca-SPI

PSRAM (U34)

STM32U5A9

MCU (U25)

Octo-SPI flash

(U22)

eMMC flash

(U26)

TNRST

header (JP5)

STLK_NRST

header (JP6)

UM2967

Product layout (top and bottom)

UM2967 - Rev 1

page 10/68
