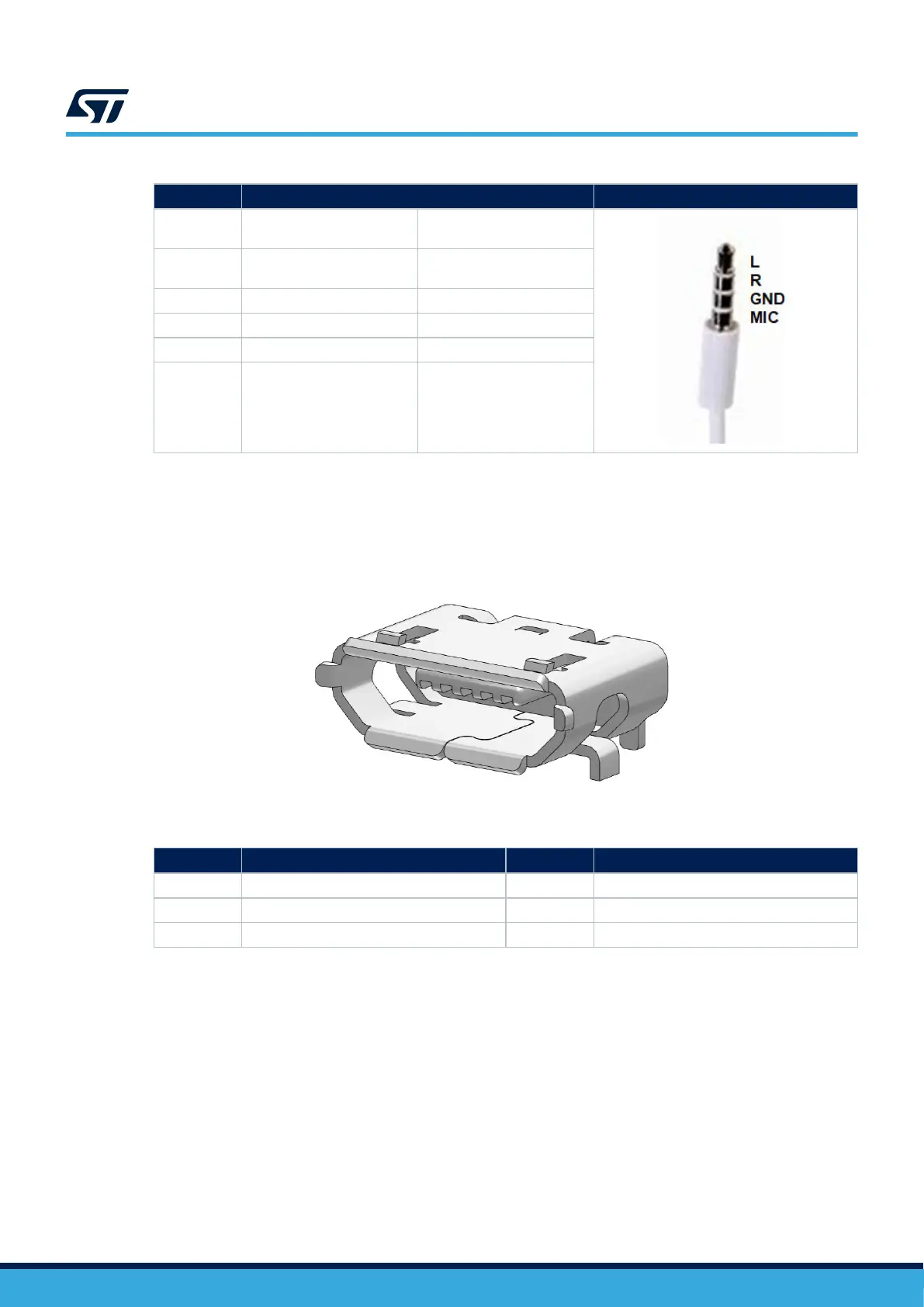

ST UM2967 User Manual

Table 27. Audio jack (CN6) pinout
Pin number Description Audio jack mating pinning
6 OUT_Left
SPK_L (33 Ω typical, 16 Ω
minimum)
4 OUT_Right
SPK_R (33 Ω typical, 16 Ω
minimum)
3 GND GND
2 MIC_IN MIC (1.5 kΩ typical)
1 NC -
5 NC -
13.6 STLINK-V3E USB Micro-B connector (CN5)
The USB connector (CN5) is used to interface with STLINK-V3E. It is compatible with USB 2.0 high‑speed
transfer data rate.
Figure 31. USB Micro-B connector (CN5)
DT59054V1
1 2 3 4 5
6
Table 28. USB Micro-B (CN5) pinout
Pin number
Description Pin number Description
1 VBUS 4 ID (not used)
2 DM 5,6 GND, Shield
3 DP - -
UM2967
STLINK-V3E USB Micro-B connector (CN5)
