Product layout (top and bottom)
Figure 5.

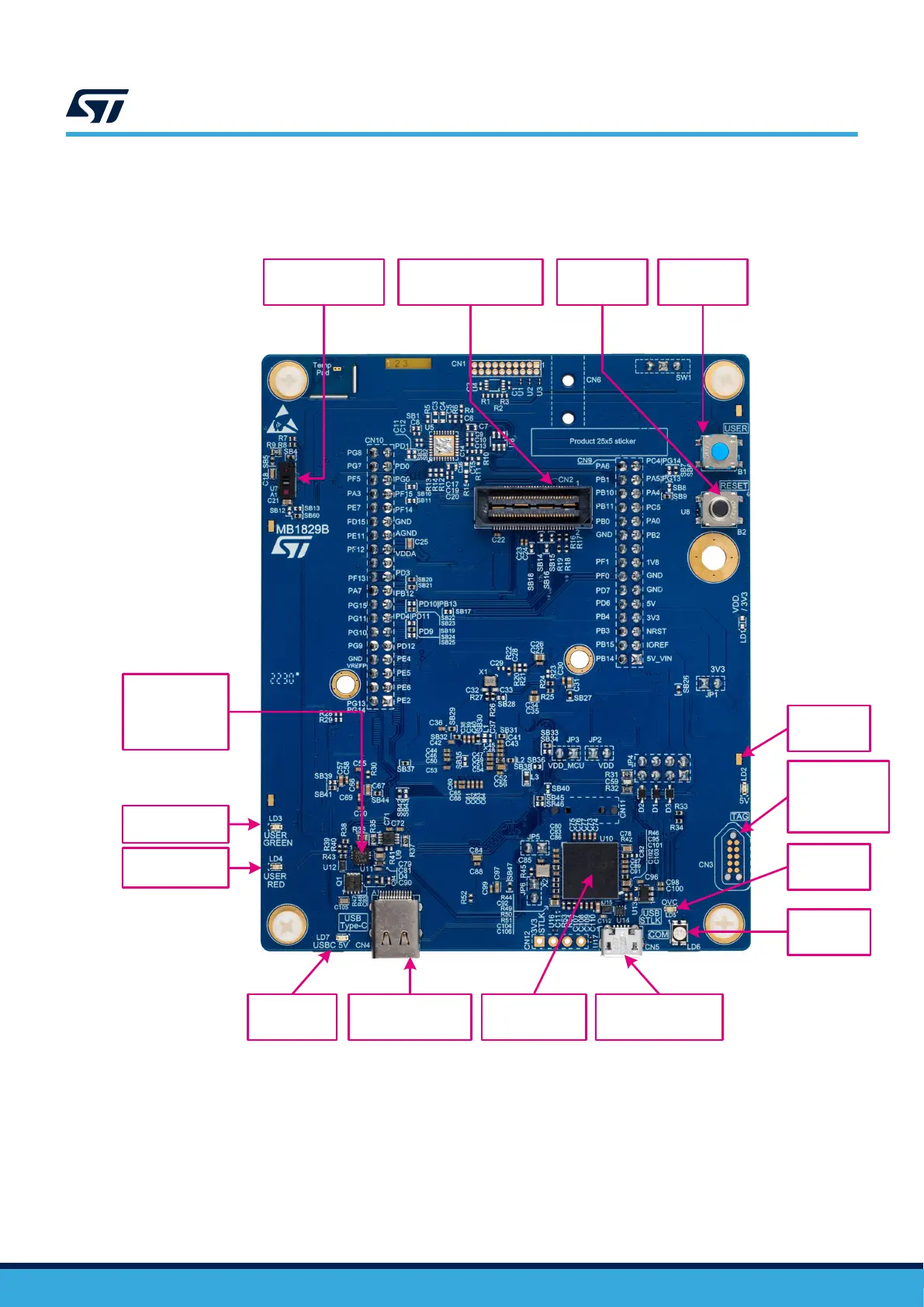

STM32U5A9J-DK top layout view
DT56157V1
T
ime-of-Flight
sensor (U7)
Reset
button (B2)
DSI_V3 LCD board
connector (CN2)
User button
(B1)
USBC 5V
LED (LD7)
USB T
ype-C
®
connector (CN4)
TCPP01-M12
USBC
protection
(U1
1)
STLINK-V3E
(U10)
User green
LED (LD3)
User red
LED (LD4)
USB STLK
connector (CN5)
5V LED
(LD2)
10-pin
TAG-connect
footprint
(CN3)
COM LED
(LD6)
OVC LED
(LD5)
UM2967
Product layout (top and bottom)
UM2967
-
Rev 1
page 9/68
8
10
