8.5 CHECKING RIVET CURVE AND ASSESSMENT RESULT
NB08PT-18 PB2500Smart

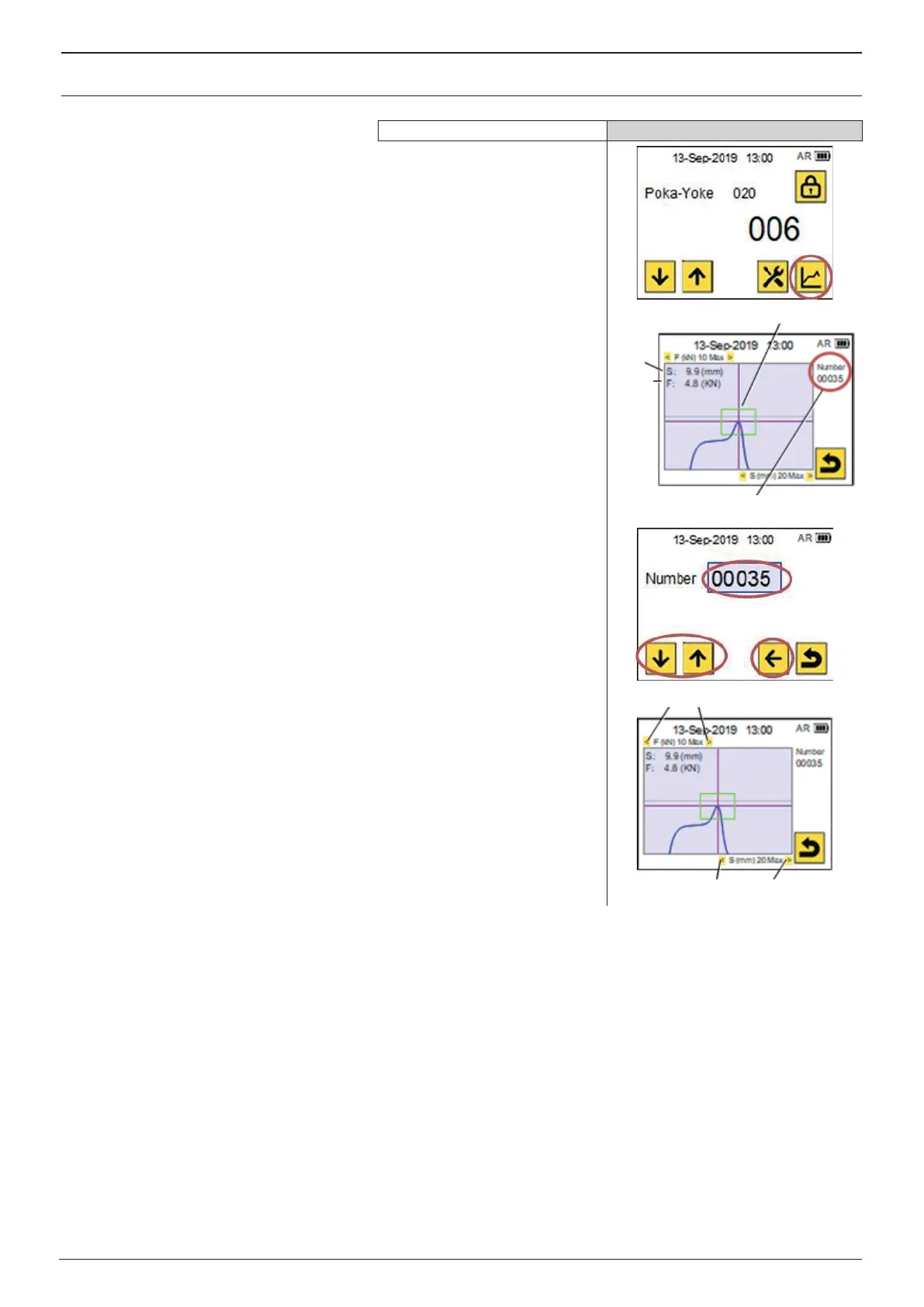

Touch “Process curve” icon to switch to “Rivet
Curve window”.
Not Available
Shows last riveting curve in the screen.
Inside of Green line shows OK range.
S: Stroke judgement result
F: Force judgement result
You can look previous curves by touching
“Number” character.
OK range
Previous curves
Stroke
Force
Touch Up-Down icons to choose a number
you want to see.
Touch “Back” or “Back Home” icon and a
curve you chosen is displayed.
(Complement)
By touching an arrow on the label of each
axis, you can change the scales as needed.
Force: 5, 10kN
Stroke: 10, 15, 20, 25mm
Force scale
Stroke scale
