Stihl HLA 86 - STIHL HLA 66 Long-Reach Hedge Trimmer and Battery; STIHL HLA 86 Long-Reach Hedge Trimmer and Battery

0458-185-9821-A
36
English 3 Overview
4 Blade scabbard
The blade scabbard protects against contact with the
cutting blades.
5 Sliding sleeve
Unlocks the blade angle adjuster.
6 Swivel handle
Serves to adjust angle of cutting blades.
7 Battery compartment
The battery compartment holds the battery.
8 Locking lever
The locking lever holds the battery in the battery
compartment.
9Ergo lever
The Ergo lever holds the release slide in position when
the trigger is released.
10 Release slide
The release slide releases the trigger.
11 Trigger
Switches the long-reach hedge trimmer on and off.
12 Control handle
For operating, holding and controlling the long-reach
hedge trimmer.
13 Carrying ring
For attaching the carrying system to the brushcutter.
14 Button
The button activates the LEDs on the battery.
15 Battery
Supplies power to the long-reach hedge trimmer.
16 LEDs
The LEDs indicate the state of charge of the battery and
any faults.
17 Shoulder strap
Serves to carry the long-reach hedge trimmer
# Rating plate with machine number

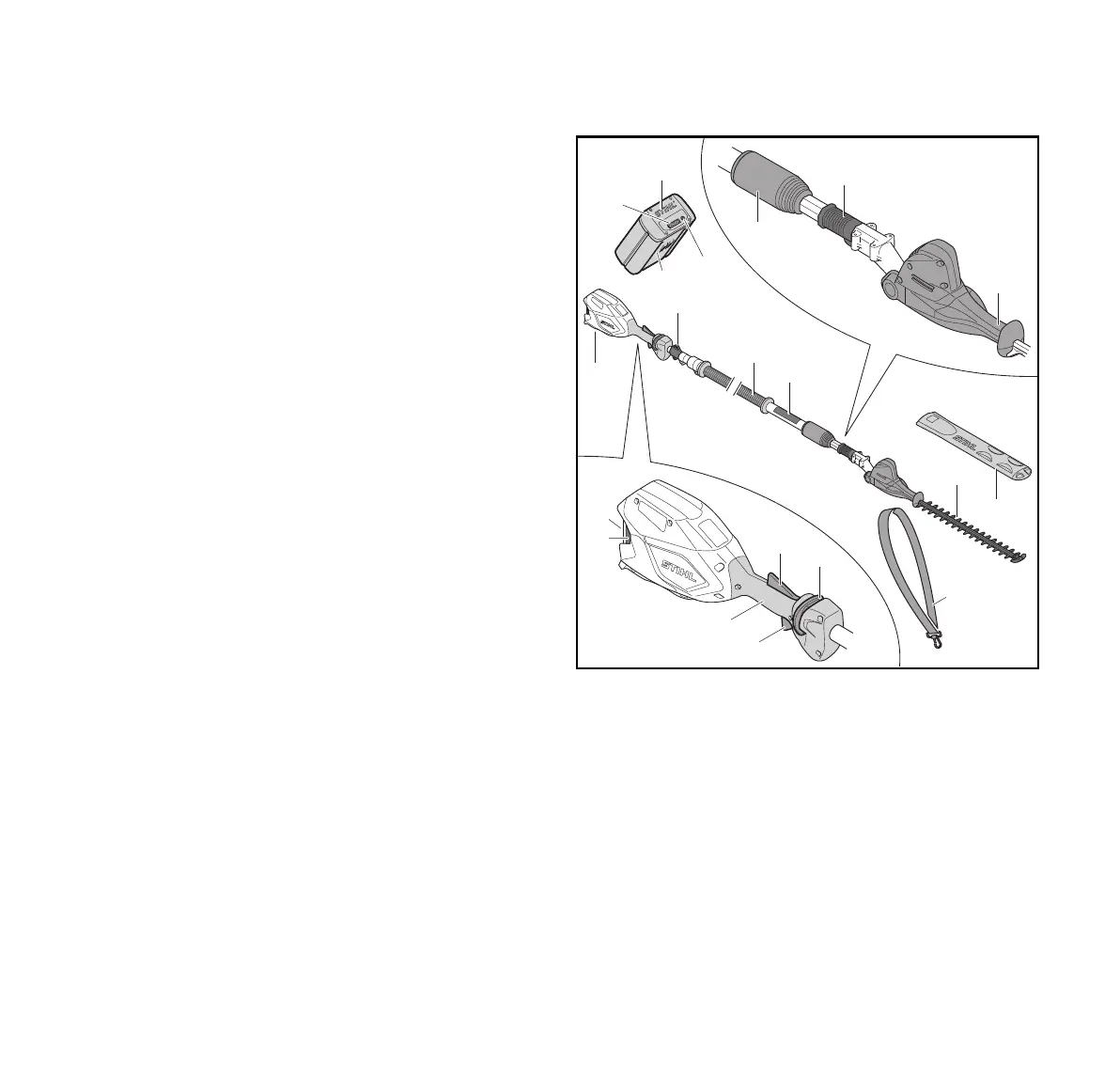

3.2 STIHL HLA 86 Long-Reach Hedge Trimmer
and Battery
1 Carrying ring
For attaching the carrying system to the brushcutter.
2 Shaft
The shaft connects all components.
3 Handle hose
For holding and controlling the long-reach hedge
trimmer.
4 Cutting blades
The cutting blades cut the hedge.
1
2
3
11
12
4
8
7
5
#
13
14
10
9
6
18
0000097078_001
16
15
#
17
