0458-185-9821-A
37
English
4 Safety Precautions
5 Blade scabbard
The blade scabbard protects against contact with the
cutting blades.
6 Clamp nut
Serves to adjust the length of shaft.
7 Sliding sleeve
Unlocks the blade angle adjuster.
8 Swivel handle
Serves to adjust angle of cutting blades.
9 Battery compartment
The battery compartment holds the battery.
10 Locking lever
The locking lever holds the battery in the battery
compartment.
11 Ergo lever
The Ergo lever holds the release slide in position when
the trigger is released.
12 Release slide
The release slide releases the trigger.
13 Trigger
Switches the long-reach hedge trimmer on and off.
14 Control handle
For operating, holding and controlling the long-reach
hedge trimmer.
15 Button
The button activates the LEDs on the battery.
16 Battery
Supplies power to the long-reach hedge trimmer.
17 LEDs
The LEDs indicate the state of charge of the battery and
any faults.
18 Shoulder strap
Serves to carry the long-reach hedge trimmer
# Rating plate with machine number

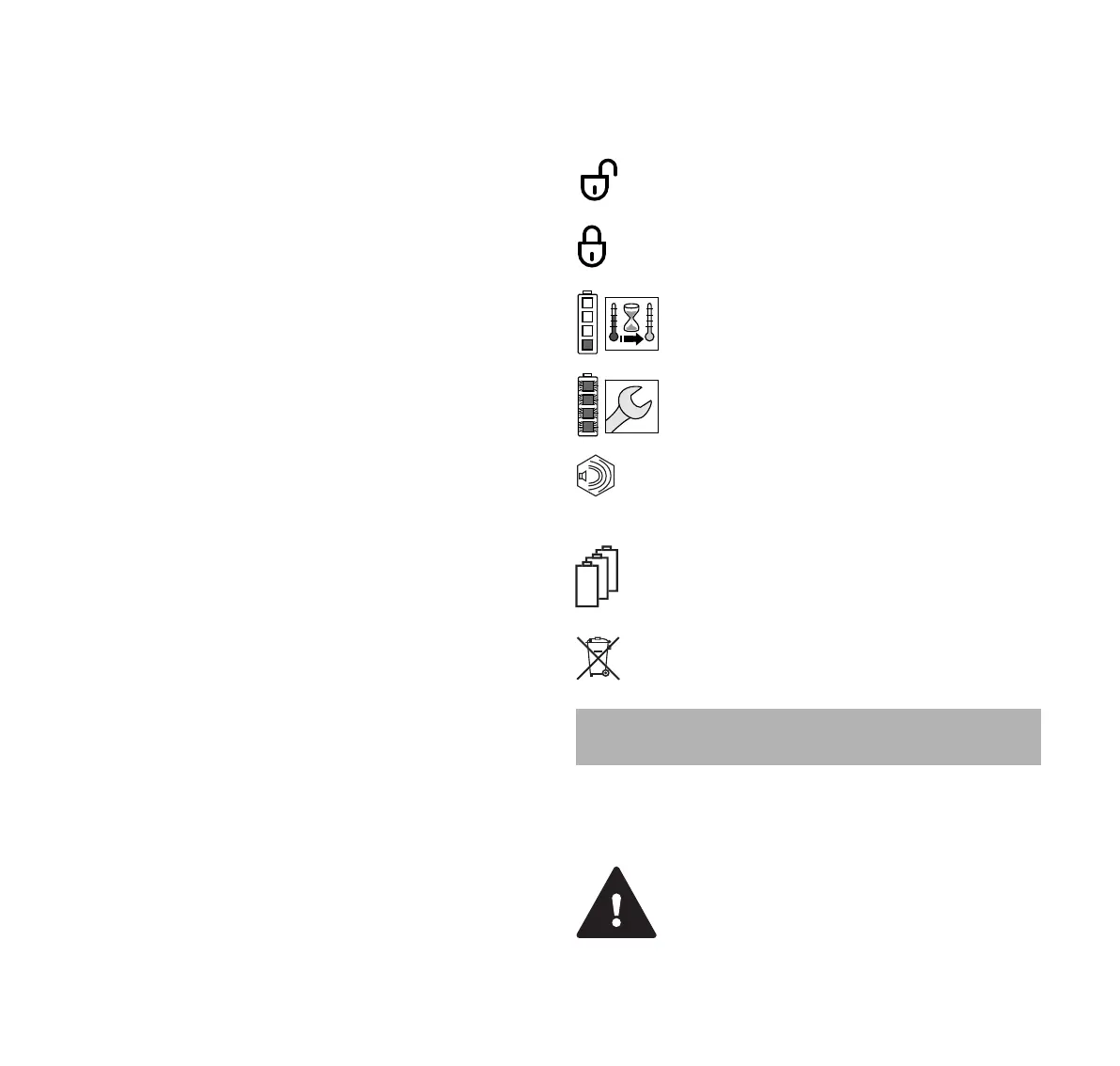

3.3 Icons
The symbols, which may be on the long-reach hedge
trimmer and battery, have the following meaning:
4.1 Warning Symbols
Meanings of warning signs and labels on the long-reach
hedge trimmer or battery:
The clamp nut is unscrewed in this position. The shaft
can be extended.
The clamp nut is locked in this position. The shaft
cannot be extended.
1 LED emits red light. The battery is too warm or
too cold.
4 LEDs flashing red. There is a fault in the
battery.
Guaranteed sound power level in accordance
with Directive 2000/14/EC in dB(A) for the
purpose of comparing the sound emissions of
products.
The information next to the symbol indicates the
energy content of the battery according to the cell
manufacturer’s specification. The energy content
available in operation is lower.
Do not dispose of the product with domestic waste.
4 Safety Precautions
Observe safety notices and take the necessary
precautions.
L
W
