100 TS 410, TS 420

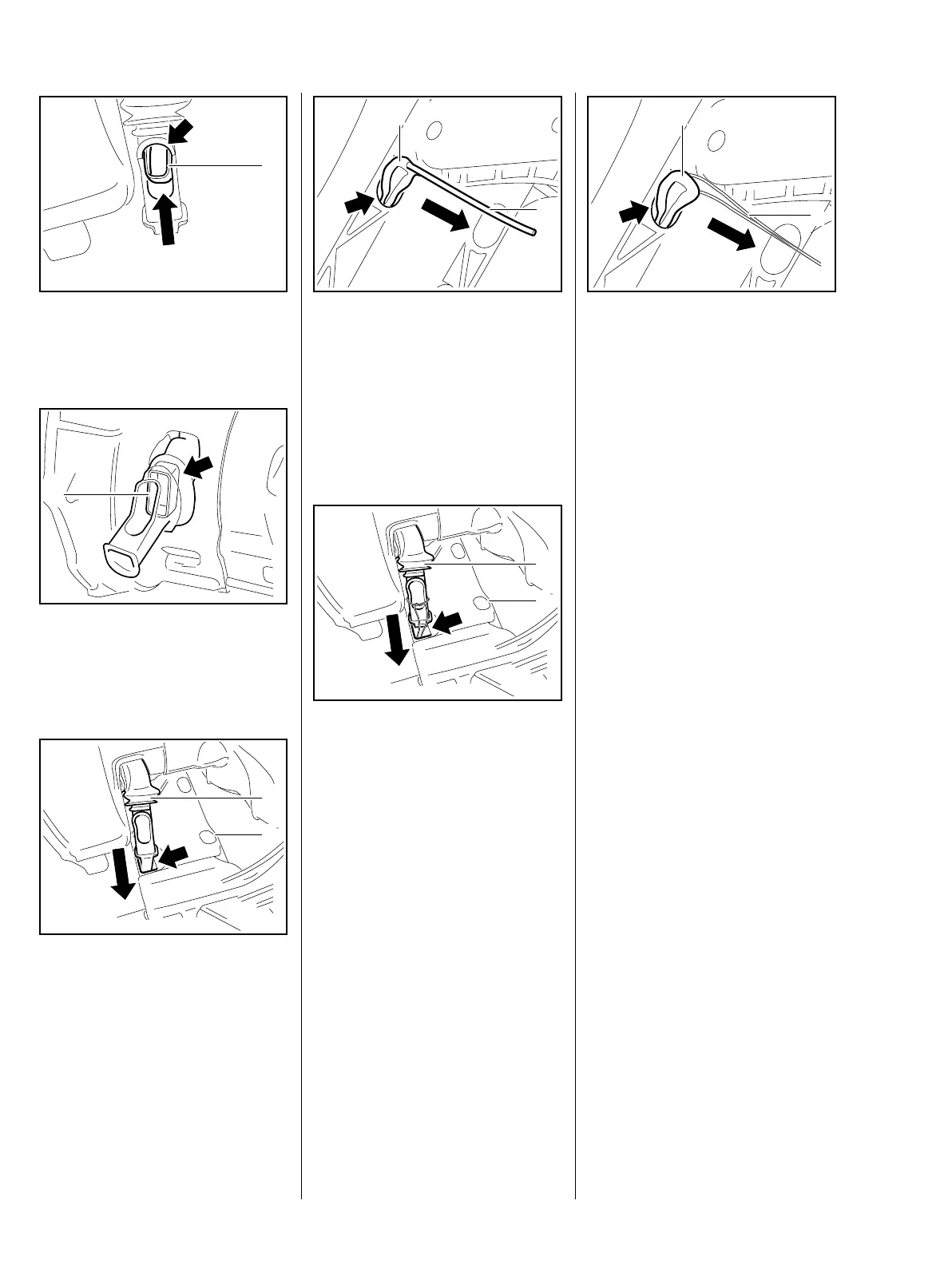

: Slide the sleeve (1) into the
opening (arrow) in the hose until
it lies flush.
– Note the position (arrow) of the
sleeve (1).
Fitting a new hose
– Position the tank housing (1) on
the crankcase from below.
: Draw the hose (2) through the
opening (arrow) in the tank
housing with the tab.
– Hold the tank housing (1).
370RA315 TG
1
370RA159 TG
1
370RA440 TG
1
2
: Pull the hose (1) into the tank
housing with the tab (2) until the
hose completely encloses the
opening (arrow).
– Cut off the tab.
Fitting a used hose
– Position the tank housing (1) on
the crankcase from below.
: Lay a piece of string (approx.
30 cm) around the hose (2)
(single loop) and guide the ends
of the string through the opening
(arrow) in the tank housing (1).
– Hold the tank housing (1).
370RA314 TG
2
1
370RA301 TG
1
2
: Pull the hose (1) into the tank
housing with the ends of the
string (2) until the hose
completely encloses the opening
(arrow).
– Remove the string.
– Install the handlebar, b 10.5.
– Reassemble remaining parts in
reverse order.
– Tightening torques, b 3.5.
370RA290 TG
2
1
