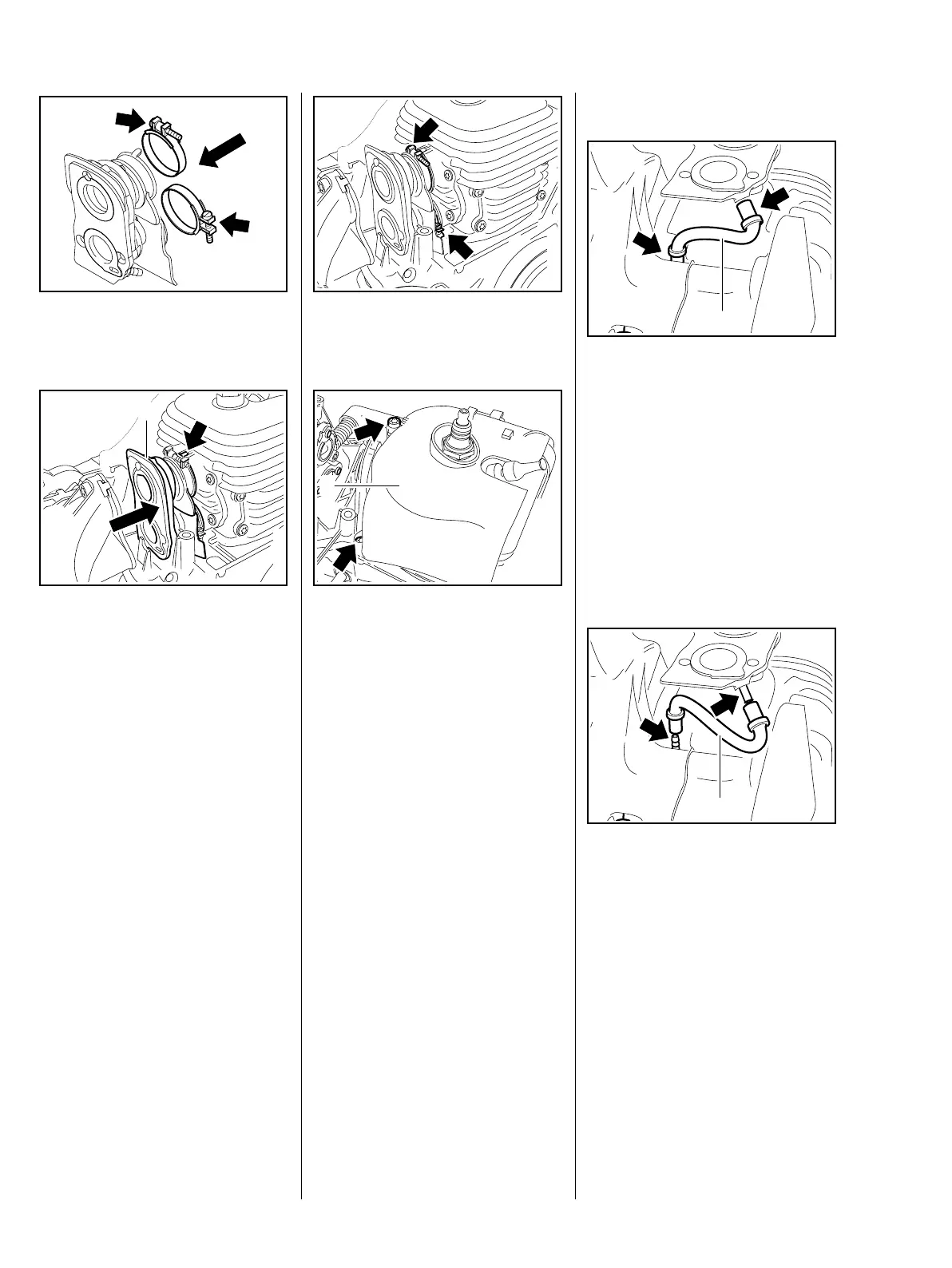

94 TS 410, TS 420
: Fit the hose clips (arrows), noting
the installed position.
– Use STIHL Press Fluid to ease
installation, b 14.
: Push the intake elbow (1) as far
as possible onto the intake fitting
of the cylinder.
The tab (arrow) must be located in
the guide.
370RA411 TG370RA412 TG
1
: Align the hose clips (arrows) and
close them as far as possible.
– Fit the air guide shroud (1).
: Insert and tighten down the
screws (arrows).
– Push the impulse hose onto the
connector on the flange,
b 12.6.1.
– Reassemble remaining parts in
reverse order.
– Tightening torques, b 3.5.
370RA405 TG
370RA117 TG
1
12.6.1 Impulse hose
– Remove the carburetor, b 12.2.
: Disconnect the impulse hose (1)
from the connectors (arrows).
– Take out and examine the
impulse hose (1), replace if
necessary.
The impulse hose must not display
any signs of damage, otherwise it
must be replaced.
: Push the impulse hose (1) onto
the connectors (arrows) as far as
possible.
– Reassemble remaining parts in
reverse order.
1
370RA414 TG
370RA415 TG
1
