71TS 410, TS 420
: Fit the clamp (1) on the opposite
side so that the guide (arrow) is
on the inside of the handlebar.
: Insert a screw (3) through the
clamp and handlebar, and screw
it tightly into the handlebar
support (2).
– Tightening torques, b 3.5.

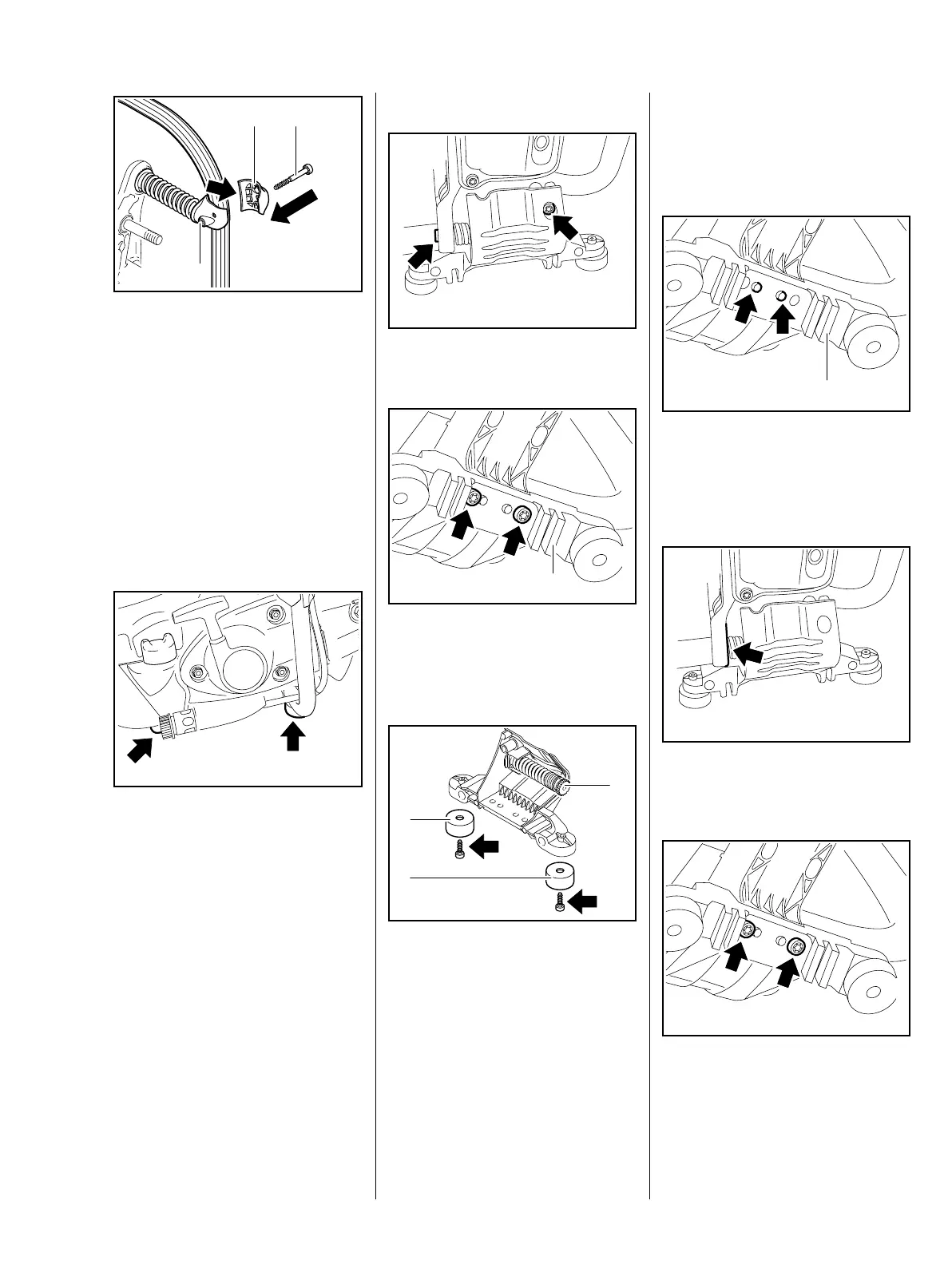

10.6 Rubber buffers/ support
Rubber buffers are fitted on the
support (arrow) and at the back of
the tank housing (arrow) to give the
machine stability.
The rubber buffers on the support
must be replaced in pairs.
370RA256 TG
1 3
2
370RA278 TG
Support
: Take out the screws (arrows).
: Take out the screws (arrows).
– Remove the support (1).
: Take out the screws (arrows).
– Remove the rubber buffers (1).
– Remove the AV spring (2),
b 10.2.
– Check the various parts and
replace if necessary.
370RA279 TG
1
370RA280 TG
1
1
2
370RA281 TG
– Reassemble parts in reverse
order.
– Tightening torques, b 3.5.
: Position the pre-assembled
support (1) underneath the
machine so that it engages in the
pegs (arrows).
: Push the bearing plug of the AV
spring into the mount (arrow).
: Insert and tighten down the
screws (arrows).
1
370RA282 TG370RA283 TG370RA284 TG
