63TS 410, TS 420

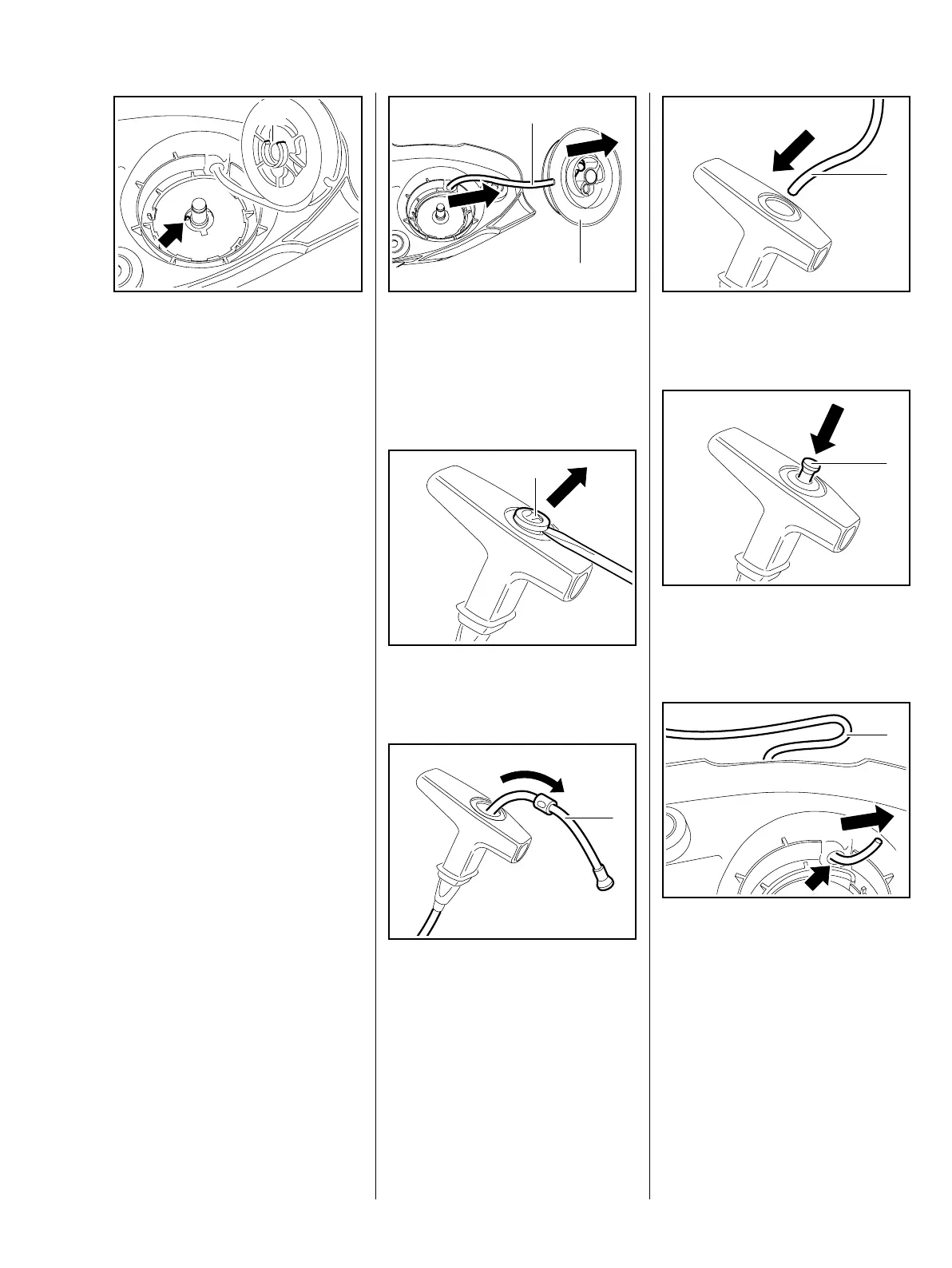

: Fit the rotor on the starter post so
that the inner loop of the spring
(arrow) enters the recess (1).
The recess in the hub of the rope
rotor acts as carrier for the spring
loop.
– Fit the washer.
– Install the pawl and spring,
b 9.3.
– Install the starter rope, b 9.5.
– Tension the rewind spring,
b 9.6.
– Grease the pegs on the pawl,
b 14.
– Reassemble remaining parts in
reverse order.
9.5 Starter rope/starter grip
– Remove the starter cover, b 9.2.
– Relieve the tension of the rewind
spring, b 9.4.
The rewind spring will not be under
tension if the starter rope is broken.
– Remove any remaining scraps of
rope from the rope rotor and
starter grip.
The starter rope must not be
shortened.
– Remove the rope rotor, b 9.4.
370RA227 TG
1
: Pull the starter rope (1) out of the
rope rotor (2).
– Pull the starter rope out of the
starter cover.
: Pry the nipple on the rope (1) out
with a suitable tool.
: Pull the rope (1) or remaining
rope out of the starter grip,
examine the various parts,
replace if necessary.
– Remove any remaining rope from
the rope rotor if necessary.
Do not shorten the starter rope.
2
1
370RA228 TG
1
370RA229 TG370RA230 TG
1
: Thread the new starter rope (1)
into the starter grip from above.
: Press the nipple (1) of the starter
rope into the starter grip until it
engages there.
: Then pull the starter rope (1)
through the rope guide (arrow).
370RA231 TG
1
370RA232 TG
1
370RA233 TG
1
