4 TS 410, TS 420

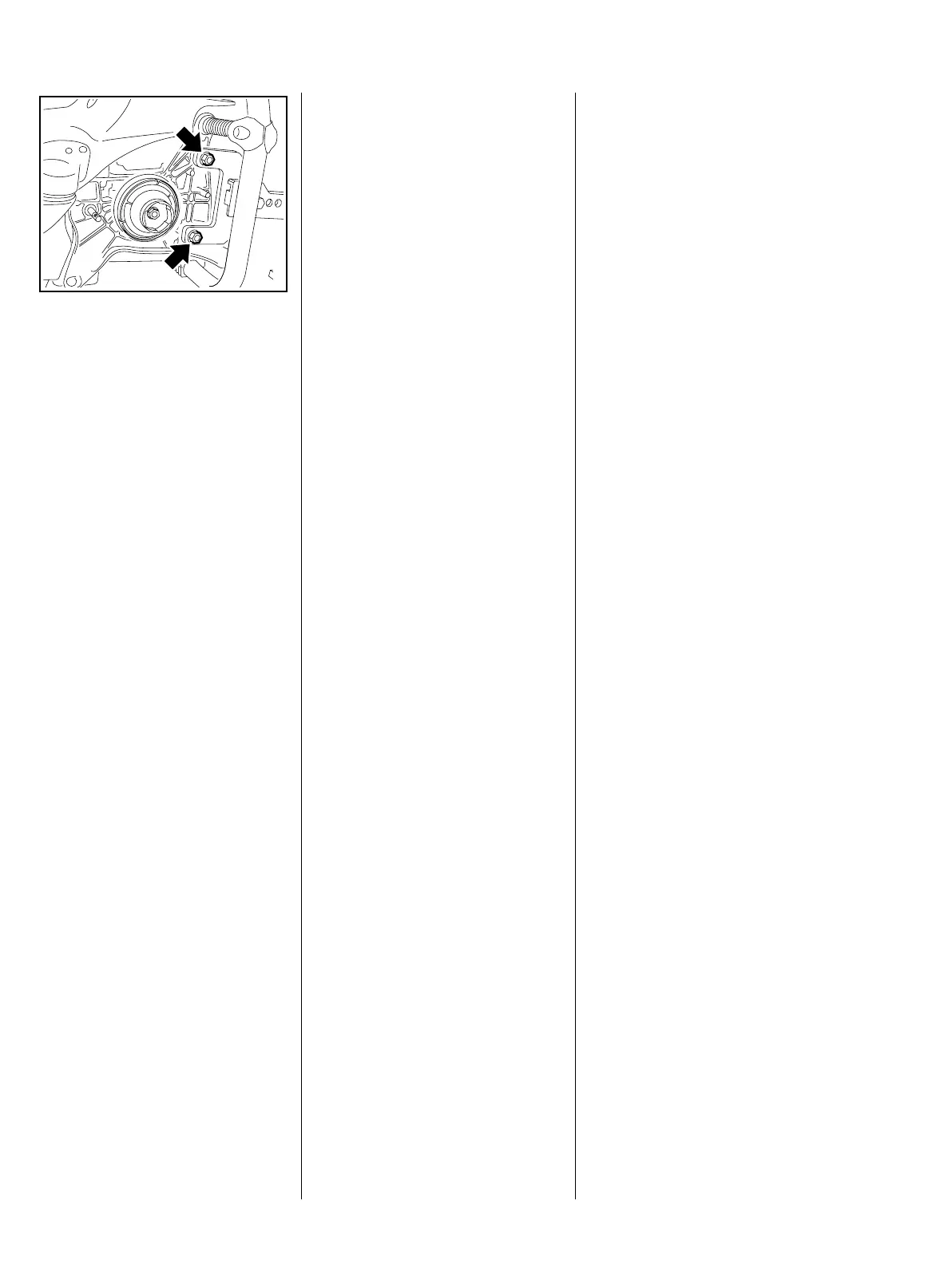

The machine is secured to the
clamping plate by means of the two
front studs on the crankcase.
Guide the studs on the machine
through the bushings on the
clamping plate and secure them
with the nuts (arrows).
The cast arm with guard must be
removed first.
Always use original STIHL
replacement parts.
They can be identified by the STIHL
part number, the STIH) logo
and the parts symbol (
The symbol may appear alone on
small parts.
Storage and disposal of oil and
fuel
Lubricating oil and fuel must be
collected in a clean container and
disposed of in accordance with the
regulations and without harming the
environment.
370RA001 TG

Stihl TS 420 Specifications

General

Engine Power	4.4 bhp
Weight	21.2 lbs
Arbor Size	20 mm
Maximum Wheel Size	350 mm
Maximum Cutting Depth	125 mm
Displacement	66.7 cc (4.1 cu. in.)
Fuel Capacity	710 cc
