7.5 TSSOP20 package information
TSSOP20 is a 20-lead thin shrink small-outline, 6.5 x 4.4 mm, 0.65 mm pitch, package.

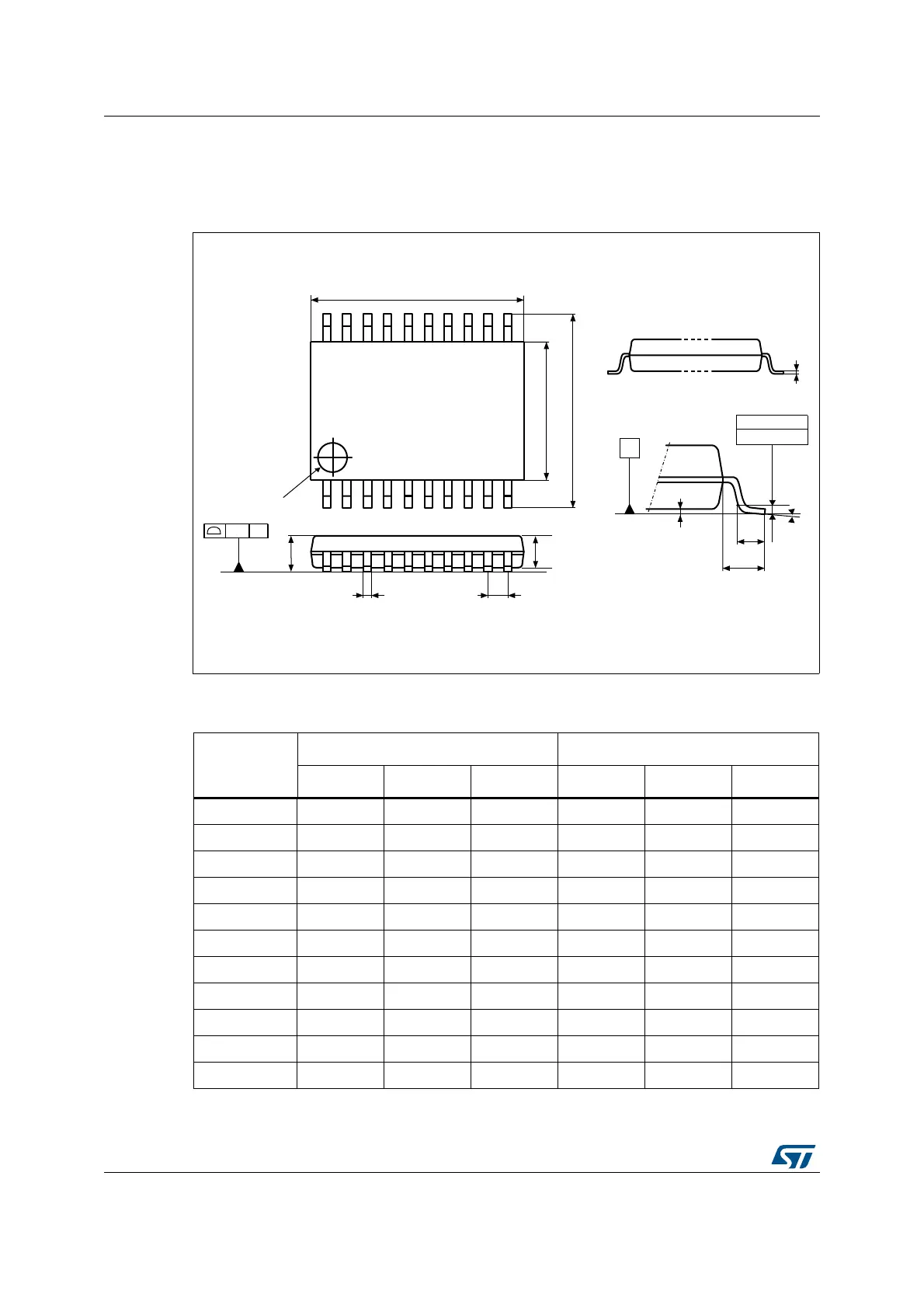

Figure 42.TSSOP20 package outline
1. Drawing is not to scale.
Table 65. TSSOP20 package mechanical data
Symbol
millimeters inches
(1)
Min. Typ. Max. Min. Typ. Max.
A - - 1.200 - - 0.0472
A1 0.050 - 0.150 0.0020 - 0.0059
A2 0.800 1.000 1.050 0.0315 0.0394 0.0413
b 0.190 - 0.300 0.0075 - 0.0118
c 0.090 - 0.200 0.0035 - 0.0079
D
(2)
6.400 6.500 6.600 0.2520 0.2559 0.2598
E 6.200 6.400 6.600 0.2441 0.2520 0.2598
E1
(3)
4.300 4.400 4.500 0.1693 0.1732 0.1772
e - 0.650 - - 0.0256 -
L 0.450 0.600 0.750 0.0177 0.0236 0.0295
L1 - 1.000 - - 0.0394 -
zͺDͺsϯ
ϭ
ϮϬ

Đ
>
ϭ

Ϯ

Ŭ
Ğď
ϭϬ
ϭϭ
ϭ
>ϭ
ĂĂĂ
^d/E'
W>E

'h'W>E
ϬϮϱŵŵ
W/Eϭ
/Ed/&/d/KE
