Operation Guide

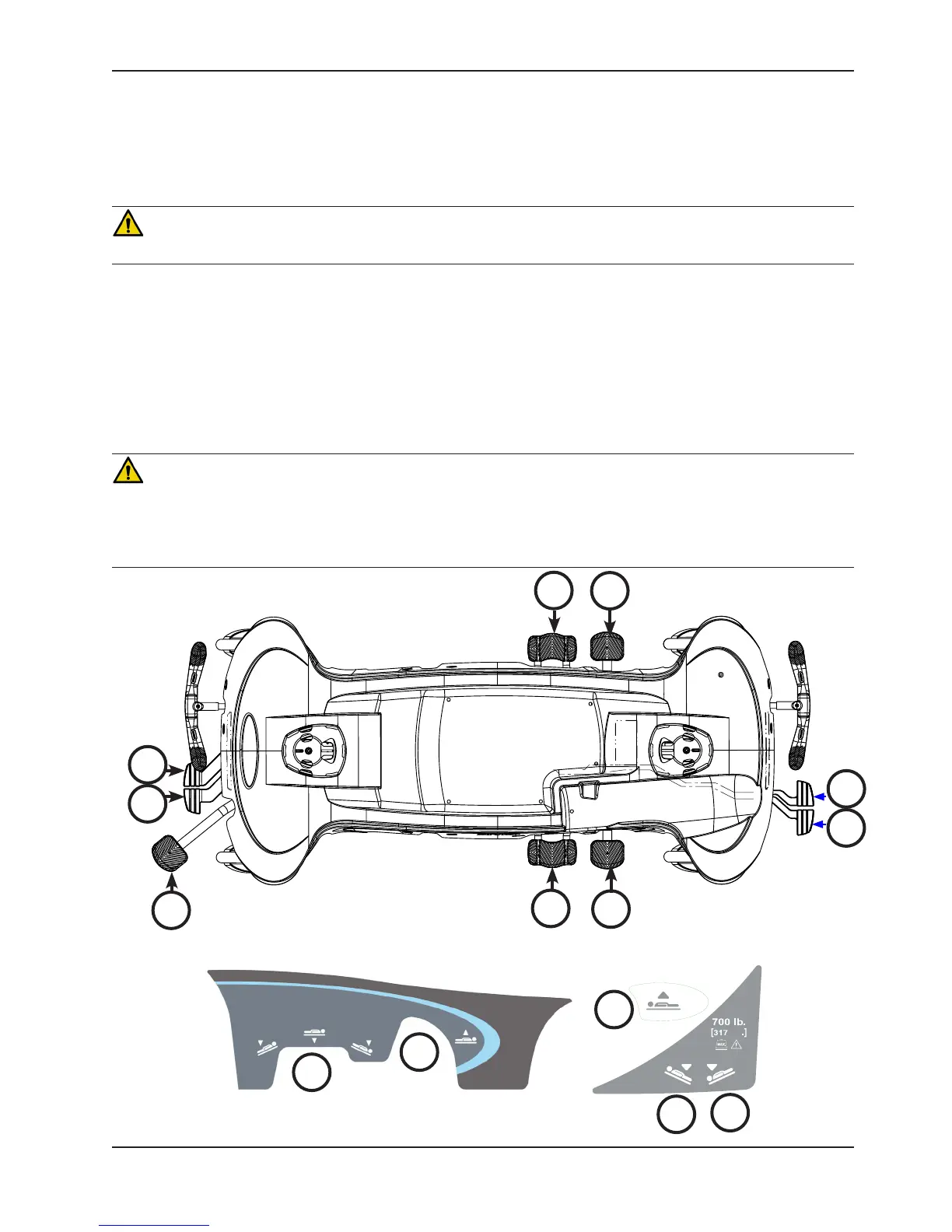

Figure 9: Stretcher Base Controls - Optional Three-Sided and Four-Sided Control
B
C
D
A
A
A
C
OPERATING THE BASE CONTROLS - OPTIONAL THREE-SIDED AND FOUR-SIDED CONTROL
HYDRAULICS
To operate the base controls, see Figure 9 to locate which pedals are used for what operation.
CAUTION
To avoid damage, remove any equipment that may be in the way before raising or lowering the litter height.
To raise the litter height, pump pedal (A) repeatedly until the desired height is achieved.
To lower both ends of the litter together, depress pedal (B) and pedal (D) together using the same foot or depress in
the center of pedal (C).
To lower the foot end of the litter, depress pedal (B) or the side of pedal (C) closest to the foot end.
To lower the head end of the litter, depress pedal (D) or the side of pedal (C) closest to the head end.
WARNING
• Patients should be discouraged from sitting directly on the ends of the stretcher. Excessive weight could cause
the litter surface to tip up, possibly causing patient injury.
• Leave the stretcher height in the lowest position when the patient is left unattended. Leaving the stretcher height in
a raised position could increase the chance of patient falls and injury.
C
A
A
C
Head End
kg
A
D
B
Figure 10 : Side Base Three-Sided or Four-Sided Control Label
Figure 11:
Label A
B
D
