OPERATING THE OPTIONAL GATCH - NON-ELECTRIC (NOT AVAILABLE WITH PRIME X OPTION)
To raise the gatch, pump handle (B) repeatedly to the left until the gatch has reached the desired height (5.5”/14 cm
minimum) as shown in Figure 23.
Note: You cannot raise the gatch manually if your unit is equipped with the optional electric litter.
To lower the gatch, pull handle (A) until the gatch has reached the desired height (5.5”/14 cm minimum) as shown in
Figure 23.
CAUTION
The weight capacity of the gatch
is 200 lb. Do not sit or stand on
the gatch. Injury or damage to the
equipment could occur.
To prop the foot end of the gatch up, lift up on the end of the gatch, allowing the prop rod to swing down and engage
in the bracket as shown in Figure 25.
To release the prop, lift up on the end of the gatch, swing the prop rod toward the head end of the unit to disengage
the bracket and lower the foot end as shown in Figure 25.
WARNING
To avoid the risk of injury, ensure
that the gatch prop rod is fully
raised and securely placed into
position (Figure 25).
Operation Guide

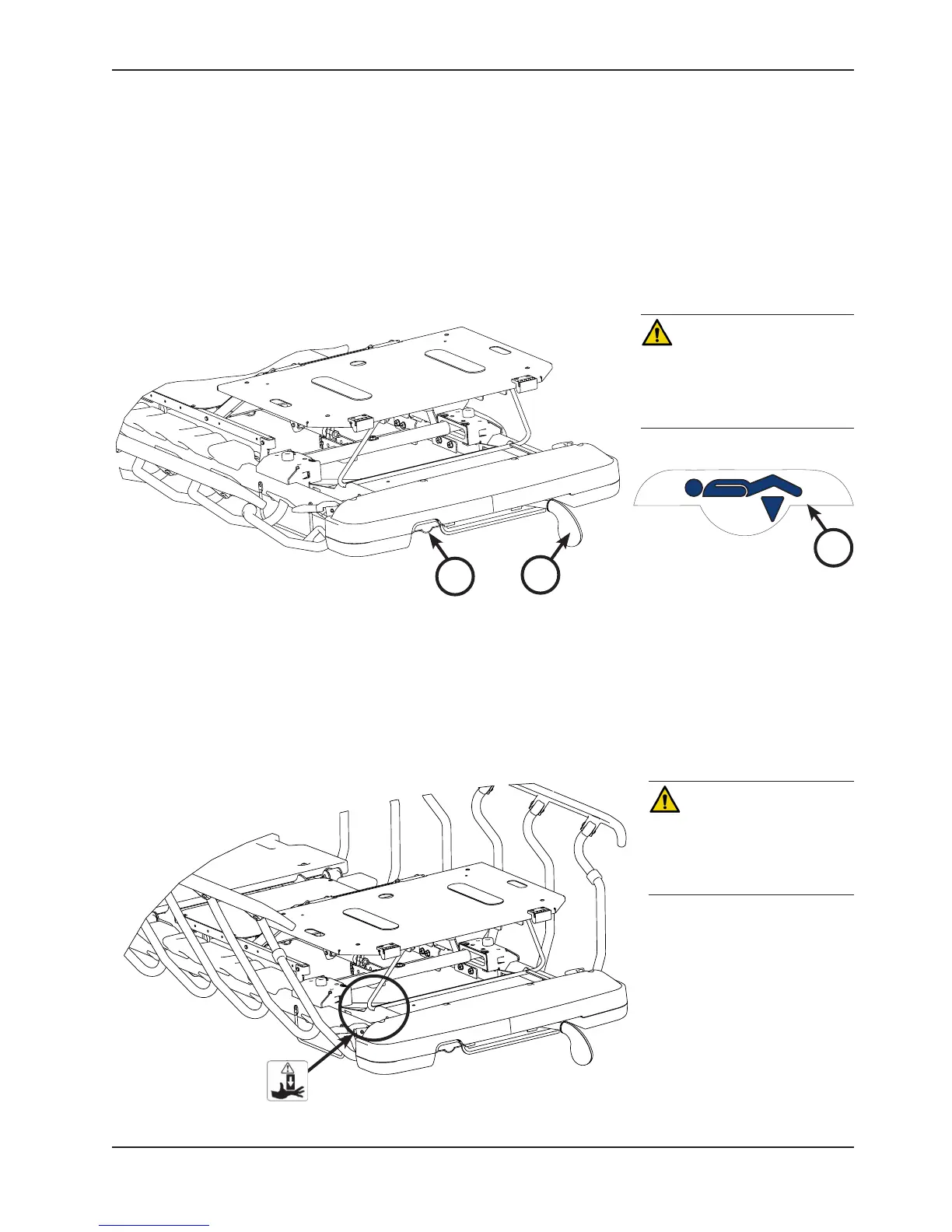

Figure 23: Gatch - Foot End
B
A
Figure 25: Gatch
Figure 24: Gatch Label
A
