Operation Guide
USING THE DEFIBRILLATOR TRAY
To install the defibrillator tray, insert the pins on the
defibrillator tray into the footboard sockets at the foot end
of the stretcher as shown in Figure 36. Use the strap to
secure the equipment to the tray.
CAUTION
• To avoid damage, do not put items weighing more
than 30 lb on the defibrillator tray.
• To avoid risk of patient or operator injury, ensure that
all devices placed on the defibrillator tray are securely
strapped to the tray.
• Do not use the defibrillator tray as a push/pull device
because equipment damage could occur.
USING THE FOOT EXTENSION/DEFIBRILLATOR
TRAY
To use as a defibrillator tray, pull out the top knob (A) and
pivot the tray (B) over the foot extension (C) until the tray
extends flat over the foot end of the stretcher as
shown in Figure 37.
To use as a foot extension, pull out knob (A)
and pivot the defibrillator tray back until it locks
against the foot extension (C). While holding onto
the assembly, pull out the bottom knob (D) and
lower the foot extension down until it is flat as
shown in Figure 37.
CAUTION
• If the stretcher is equipped with the optional
foot end I.V. pole, the I.V. pole must be in
the raised position when the foot extension/
defibrillator tray is installed. If the I.V. pole is
not raised, the foot extension will not function
properly and injury could occur.
• To avoid damage, do not put items weighing
more than 30 lb on the foot extender/
defibrillator tray.
• To avoid risk of patient or operator injury, en-
sure that all devices placed on the defibril-
lator tray are securely strapped to the tray.
• Do not use the foot extension/defibrillator tray
as a push/pull device because equipment
damage could occur.

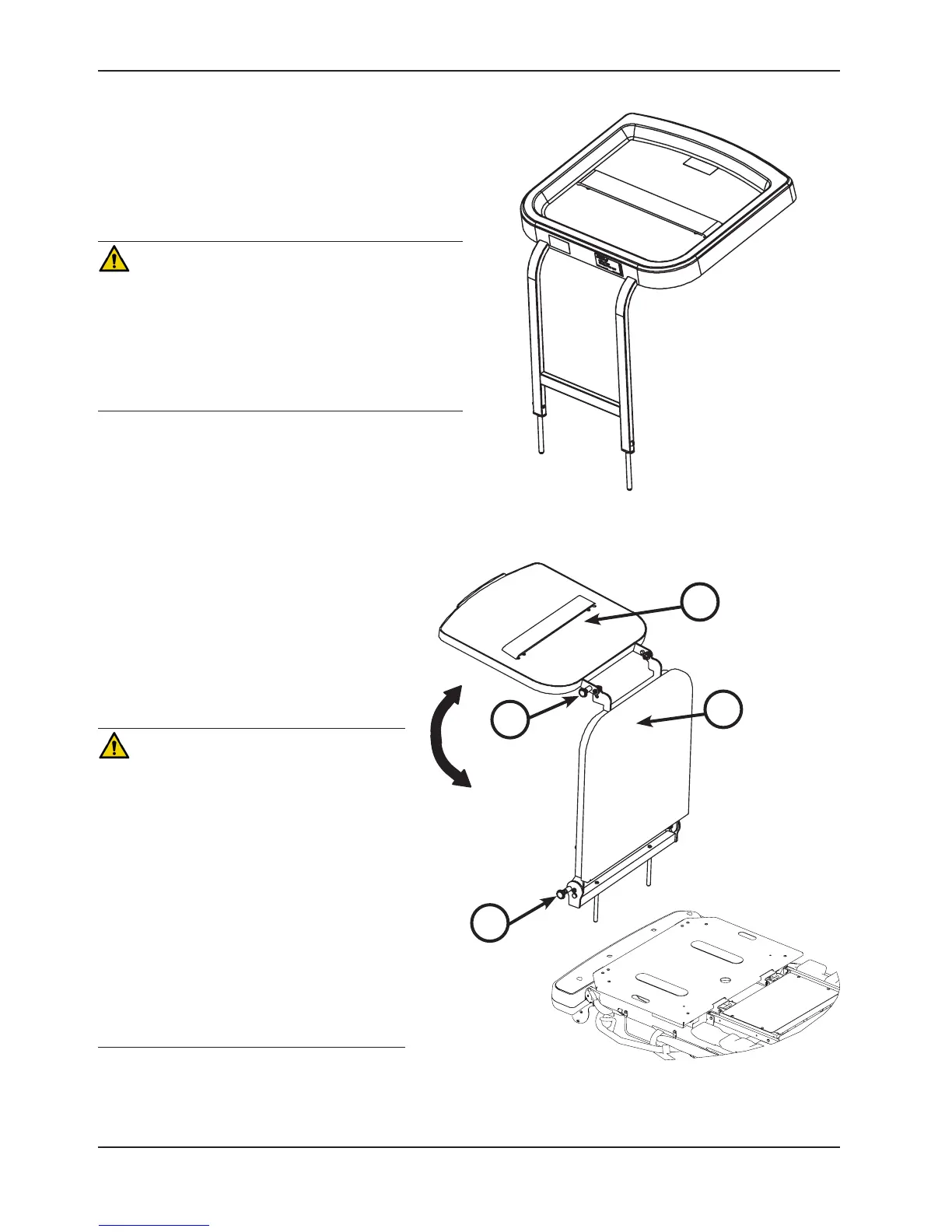

Figure 36: Defibrillator Tray
Figure 37: Foot Extension/
Defibrillator Tray - Foot End
D
C
B
A
