www.stryker.com 1115 -10 9 - 0 01 R E V D 49
Return To Table of Contents
Operation Guide
USING THE FOOTBOARD/CHARTHOLDER
To use the footboard/chartholder, insert the footboard/
chartholder supports (A) into the corresponding holes
located at the foot end of the stretcher.
CAUTION
Do not use the footboard/chartholder as a push/pull device
because equipment damage could occur.
USING THE I.V. CADDY
To use the I.V. caddy:
1. Lift the I.V. caddy out of the storage tray or from the
storage clip. Pivot the I.V. caddy to the desired position.
2. Turn knob (A) counterclockwise to loosen the pole
clamp (C).
3. Pivot the knob (A) away from the clamp (B). The clamp
(C) may then be opened.
4. Place the I.V. pole into the clamp (B). Close the clamp
(C) around the I.V. pole and pivot the knob (A) back
into position.
5. Turn the knob (A) clockwise to tighten it. The I.V. pole
is ready to be transported with the unit.
To remove the I.V. pole from the I.V. caddy:
1. Turn knob (A) counterclockwise to loosen the pole
clamp.
2. Pivot the knob away from the clamp (B), open the
clamp and remove the I.V. pole from the I.V. caddy.
CAUTION
Always store the I.V. caddy when not in use to avoid damaging it when the unit is moved.
WARNING
To avoid the risk of injury to the patient or user or damage to the I.V. pole while transporting the stretcher, make sure that
the I.V. caddy is securely tightened on the I.V. pole.

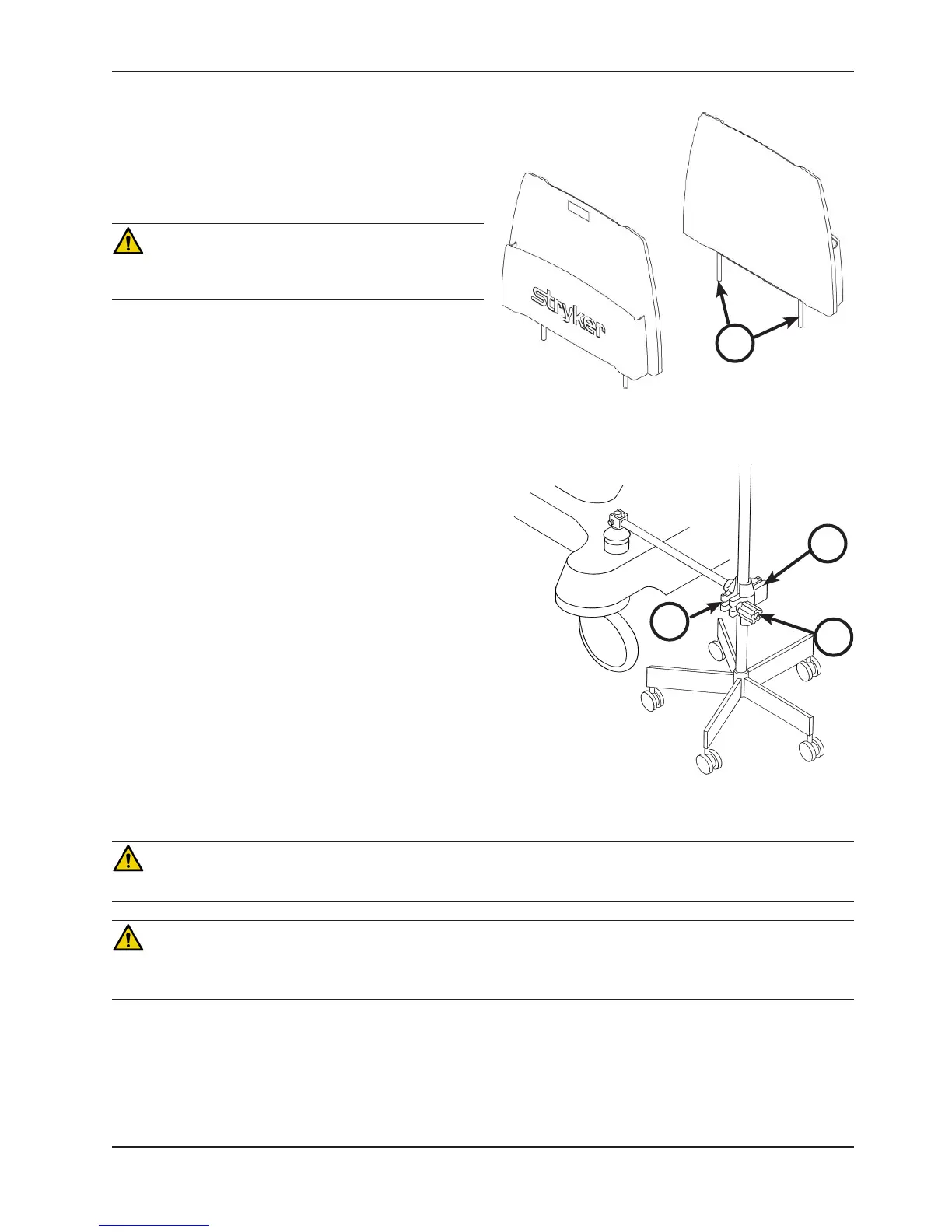

Figure 39: I.V. Caddy
A
C
B
Figure 38: Footboard/Chartholder
A
