Operation Guide
USING THE UPRIGHT OXYGEN BOTTLE HOLDER
To install the upright oxygen bottle holder, insert the
support bar (A) into the I.V. socket at any of the four litter
corners. Insert the cotter pin (B) through the hole in the
support bar to hold the bottle holder in place as shown in
Figure 48.
CAUTION
• To avoid damage, do not put items weighing more than
40 lb in the upright oxygen bottle holder.
• Do not use the upright oxygen bottle holder as a push/
pull device because equipment damage could occur.
USING THE SERVING TRAY
To use the serving tray, pull out on either end of the
serving tray to extend it to the proper width to fit on top of
the stretcher siderails as shown in Figure 49.
To store the serving tray in the optional serving tray
holder/footboard, push in both ends of the serving tray and
slide it into holder as shown in Figure 50.
CAUTION
• To avoid damage, do not put items weighing more than 30
lb on the serving tray.
• Do not use the serving tray holder/footboard as a push/pull
device because equipment damage could occur.

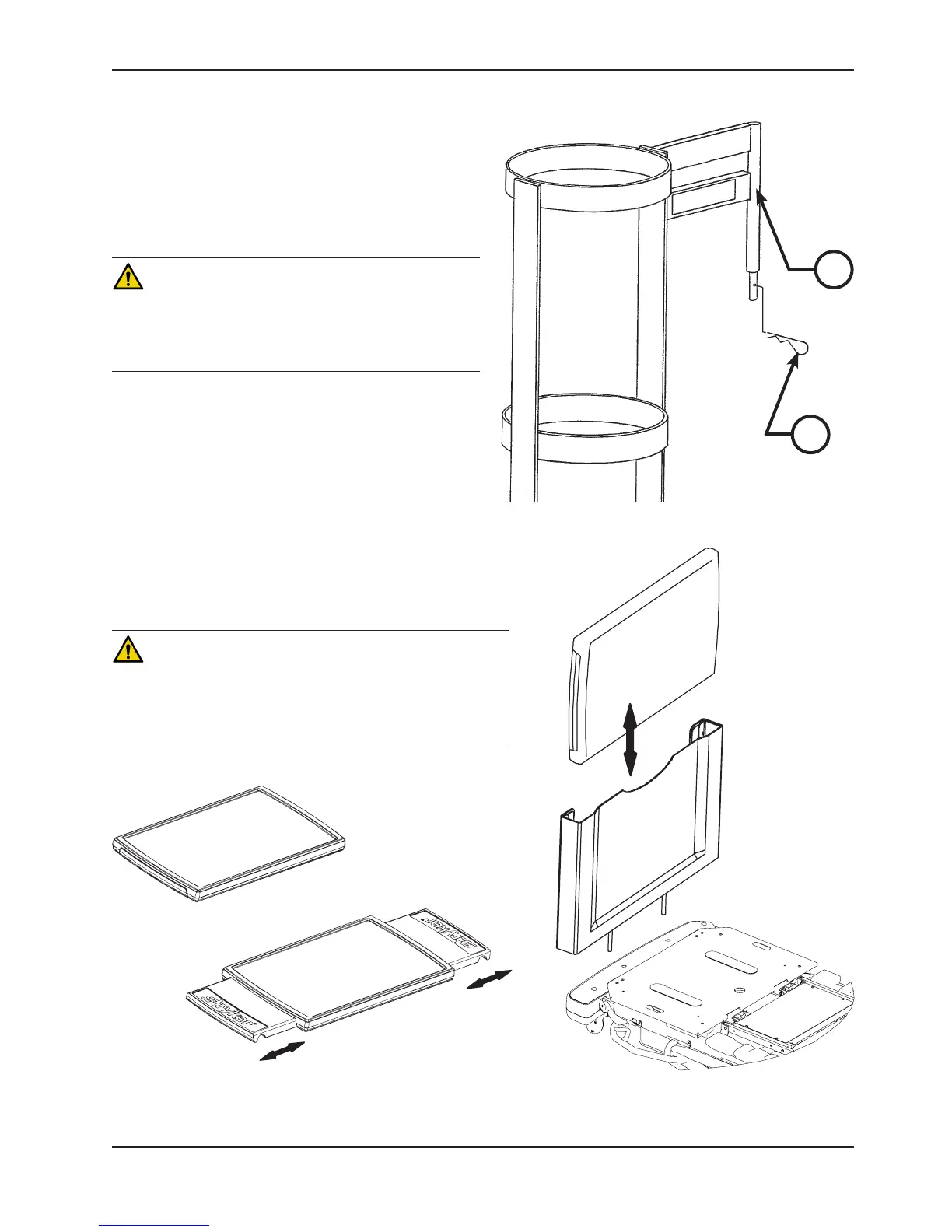

Figure 50: Serving Tray - Foot End
Figure 49: Serving Tray
Figure 48: Upright Oxygen Bottle Holder
A
B
