OPERATING THE SIDERAIL PATIENT CONTROLS - OPTIONAL ELECTRIC LITTER (NOT AVAILABLE
WITH PRIME X OPTION)
Ensure that the power cord is plugged into a properly grounded, hospital grade wall outlet before using the optional
electric litter.
Each siderail has backlit controls to allow the patient to position the fowler and gatch as shown in Figure 15. The
power cord must be plugged into the wall socket for the patient controls to operate. When the stretcher is plugged in
(powered) and the controls are unlocked (see page 30), the white buttons are illuminated.
Note: The siderail patient controls are positioned in a staggered location on each side of the stretcher for easy patient
access.
WARNING
Powered stretcher mechanisms can cause serious injury. Operate stretcher only with persons clear of mechanisms.
Button Button Name Button Function
1 Gatch Down Press to lower the gatch (foot section)
2 Gatch Up Press to raise the gatch (foot section)
3 Fowler Up Press to raise the fowler (head section)
4 Fowler Down Press to lower the fowler (head section)
Operation Guide

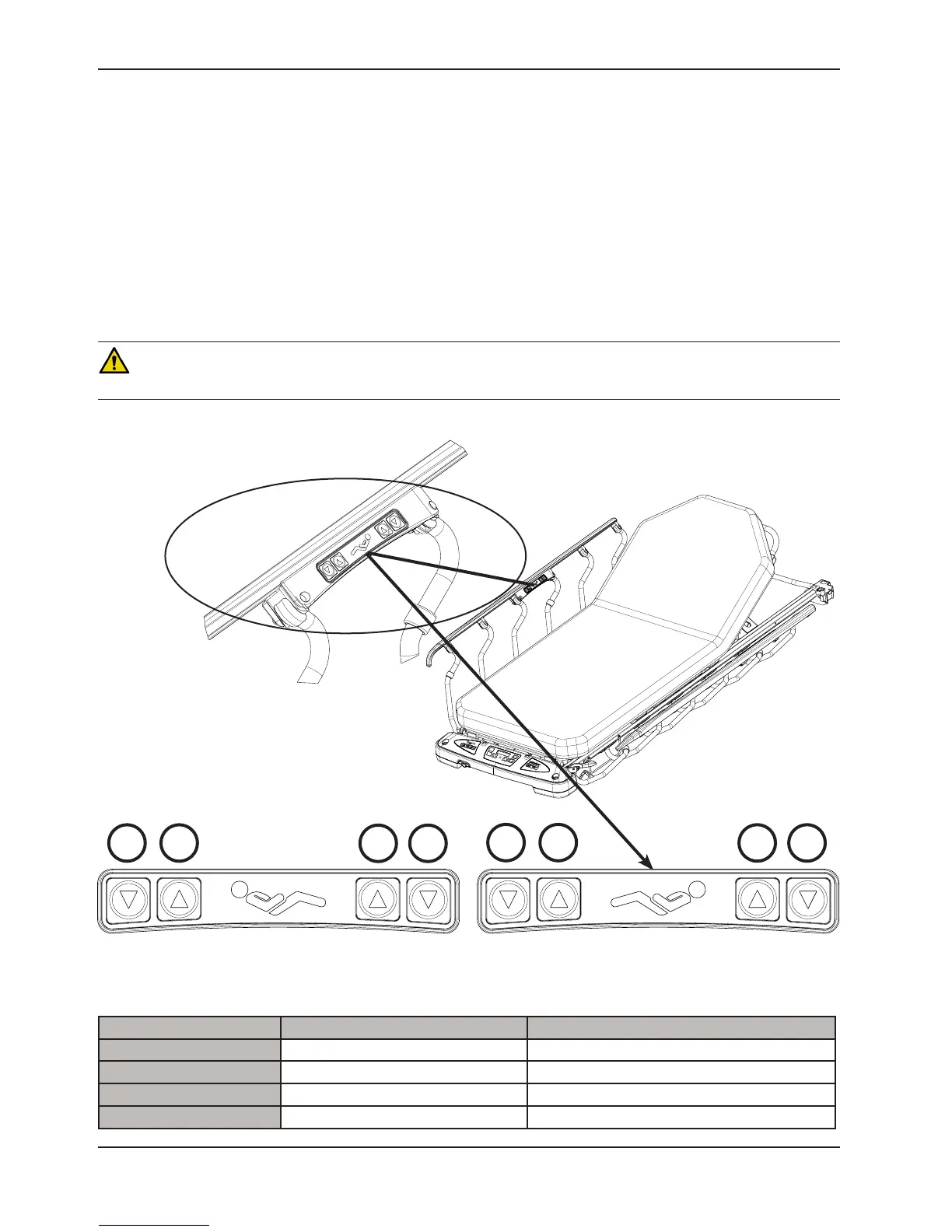

Figure 15: Siderail Patient Controls
2 1
34
3 4
21
Patient Right SiderailPatient Left Siderail
