Stryker 1115 User Manual

44 1115 -10 9 - 0 01 RE V D www.stryker.com
Return To Table of Contents
OPERATING THE OPTIONAL SCALE SYSTEM - ELECTRIC LITTER OPTION WITH CHAPERONE (NOT
AVAILABLE WITH PRIME X OPTION)
Ref Icon/Button Description Action Display
1 Indicates when Zone 1 is armed. Allows the patient to move around
the stretcher freely, but cannot begin to exit the stretcher or the
alert with sound.
2 Displays patient weight, unit of measurement and battery status
3 Push to toggle between patient weight in pounds or weight in
kilograms
To convert the weight of
the patient to kilograms,
press and release lb/kg.
Repeat to return to pounds.
XXX.X kg
XXX.X lb
4 Indicates when Zone 2 is armed. Zone 2 is more restrictive than
Zone 1. When this zone is selected, the stretcher measures the
patient’s center of gravity. If the patient’s center of gravity moves
outside the preset boundary, an alert will sound.
5 Push once to arm Zone 1. Push twice to arm Zone 2. Once armed
or when alerting, press once to disarm.
Press and release Arm/Disarm On 1
On 2
Off
6 When the scale system is unplugged and operating with battery
backup, the standby indicator is amber. When the unit is plugged in,
the standby indicator is green.
7 Push to weigh the patient. The display shows the patient’s weight for
approximately 40 seconds before turning off.
Press and release Weigh _ _ _ _
XXX.X lb
8 Push and hold for 2 seconds to zero the scale system before putting
a patient on the stretcher. If the display flashes “hold”, press and
hold the Zero button again until the display reads “rel” (release).
Release the Zero button. The display flashes “000.0”, then displays
“000.0”. The system is not zeroed until the “000.0” stops flashing.
For the most accurate results, always zero the scale system before
putting a new patient on the stretcher. The display shuts off after
approximately 40 seconds.
Press and hold Zero
Release Zero
hold
rel
000.0
(flashing)
000.0 (solid)
Operation Guide
4
2 31
5 6 7
8

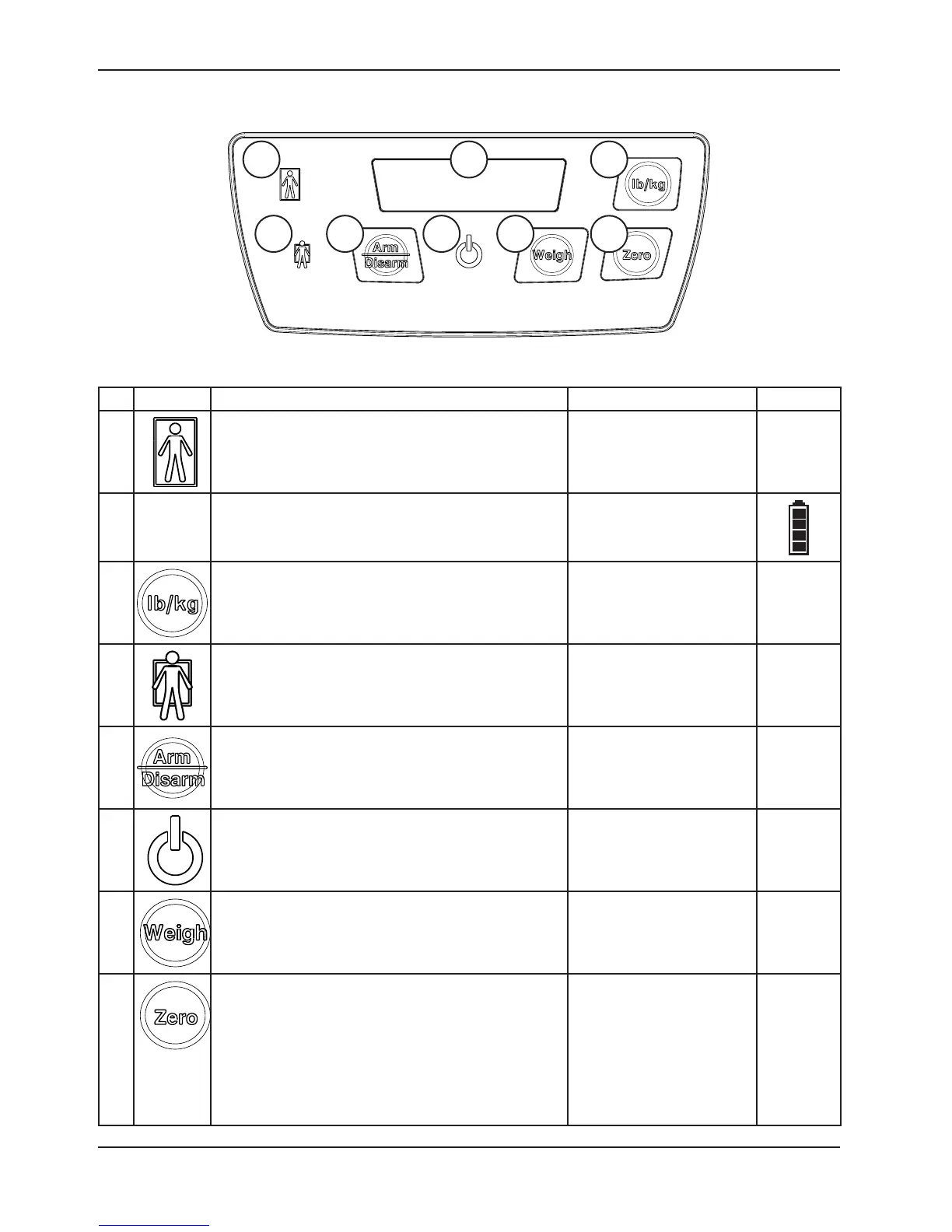

Figure 33: Scale Sysem-Electric Litter With Chaperone
