Operation Guide
USING THE LATERAL CASSETTE HOLDER
This removable cassette holder allows radiologists to take full length C-Spine images, holding virtually any size cassette.

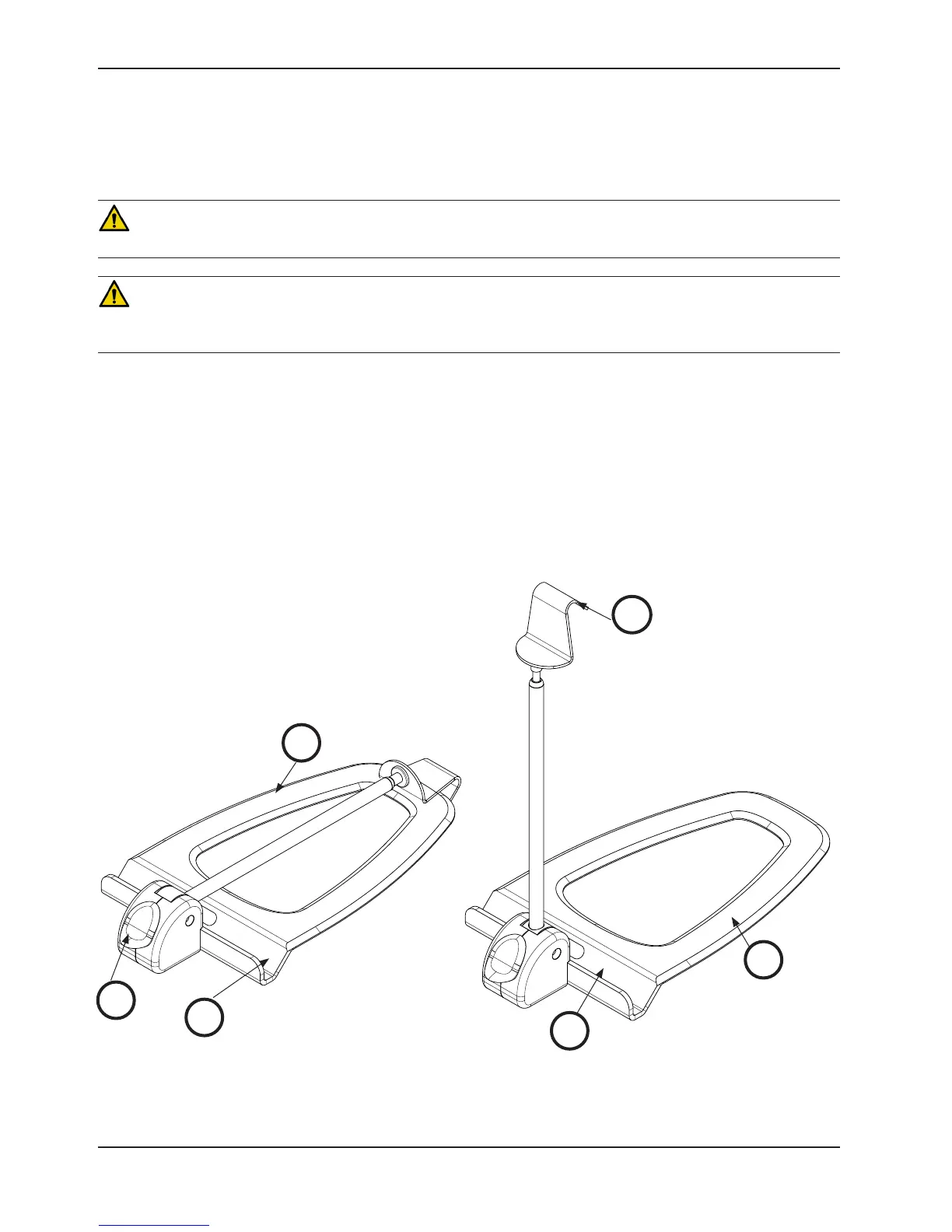

Figure 55: Lateral
Cassette Holder
Figure 56: Lateral Cassette Holder
A
B
C
WARNING
This device does not offer any protection against X-Ray radiation.
CAUTION
To avoid risk of user injury or damage to the equipment, ensure that the Lateral X-Ray Cassette Holder is installed
correctly, following the instructions below.
To use the Lateral Cassette Holder
1. Press down on the yellow release button (A) to open the lateral cassette holder (Figure 55).
2. Slide the flat base (B) between the mattress and the patient platform (Figures 55 and 56).
3. Position the lateral cassette holder in the desired location.
4. Place the X-Ray cassette in the cassette canal (C) (Figures 55 and 56).
5. Pull up on the cassette hook (D) to adjust the height of the arm to fit snugly over the X-Ray cassette to hold the
cassette in place (Figure 56).
6. Pull up on the cassette hook (D) to remove the X-Ray cassette from the lateral cassette holder (Figure 56).
7. Remove the lateral cassette holder from between the mattress and patient platform.
8. Press down on the release button to close the lateral cassette holder.
9. Store the lateral cassette holder as appropriate.
D
B
C
