www.stryker.com 6390-009-002 REV D 47
Service
Trolley actuator assembly replacement (Continued)
2. Using a T20 Torx driver, remove the three delta screws (A) that secure the trolley actuator (B) to the trolley frame
(Figure 12 on page 47).
A
B

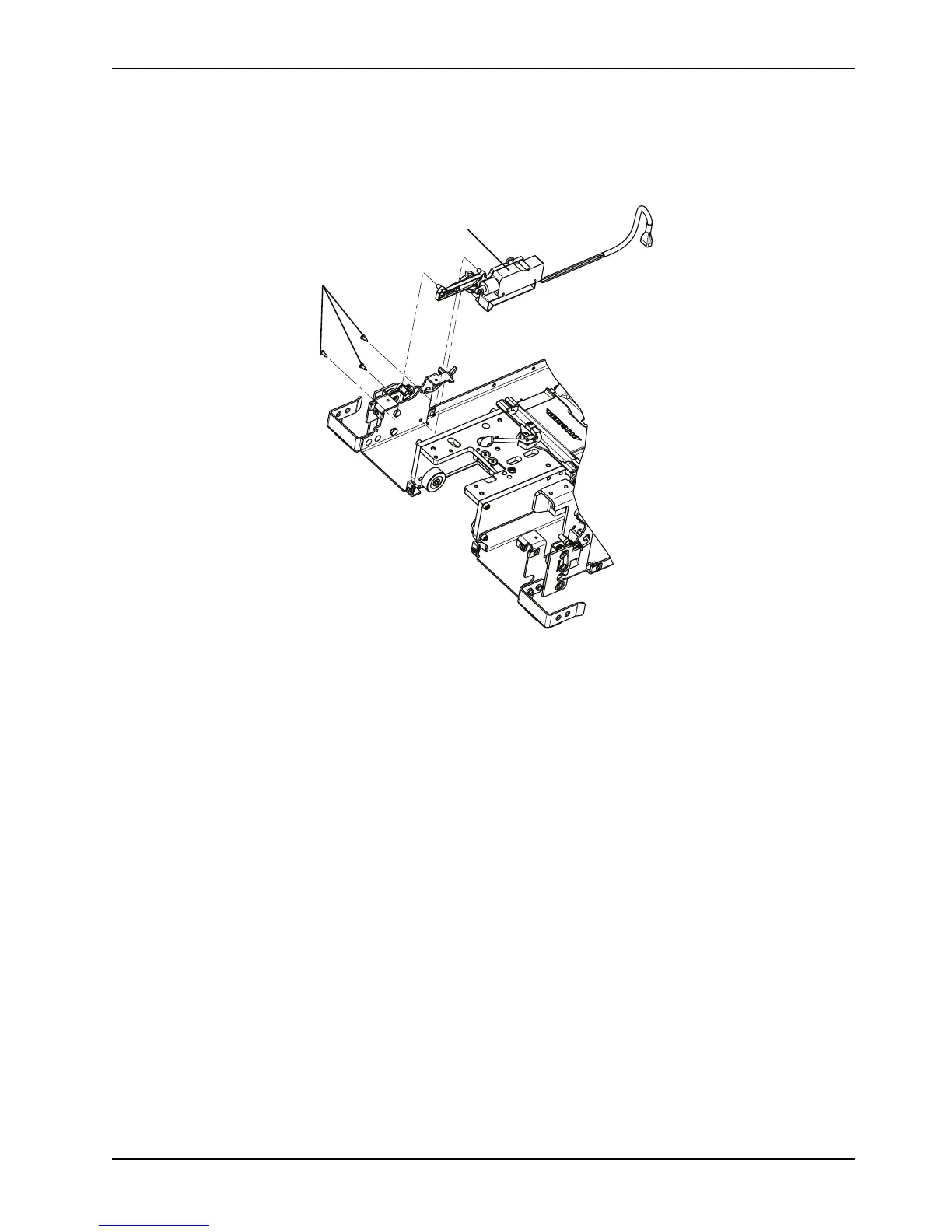

Figure 12: Trolley actuator assembly
3. Unplug the cable (C) from the trolley actuator to the main cable assembly (Figure 13 on page 48).
4. Pull the actuator out and up towards the trolley control board to remove.
5. Reverse steps to reinstall.
Note: Make sure that the cables are seated and routed correctly.
6. Verify proper operation of the product before returning it to service.
