Stryker 6390 User Manual

52 6390-009-002 REV D www.stryker.com
Service
Hydraulic cylinder rod end replacement (Continued)
4. Using a 1/4" hex wrench and a 1/2" combination wrench, remove the end cap cylinder pin (A) and nut (B) (Figure
18 on page 52).
A
B
C

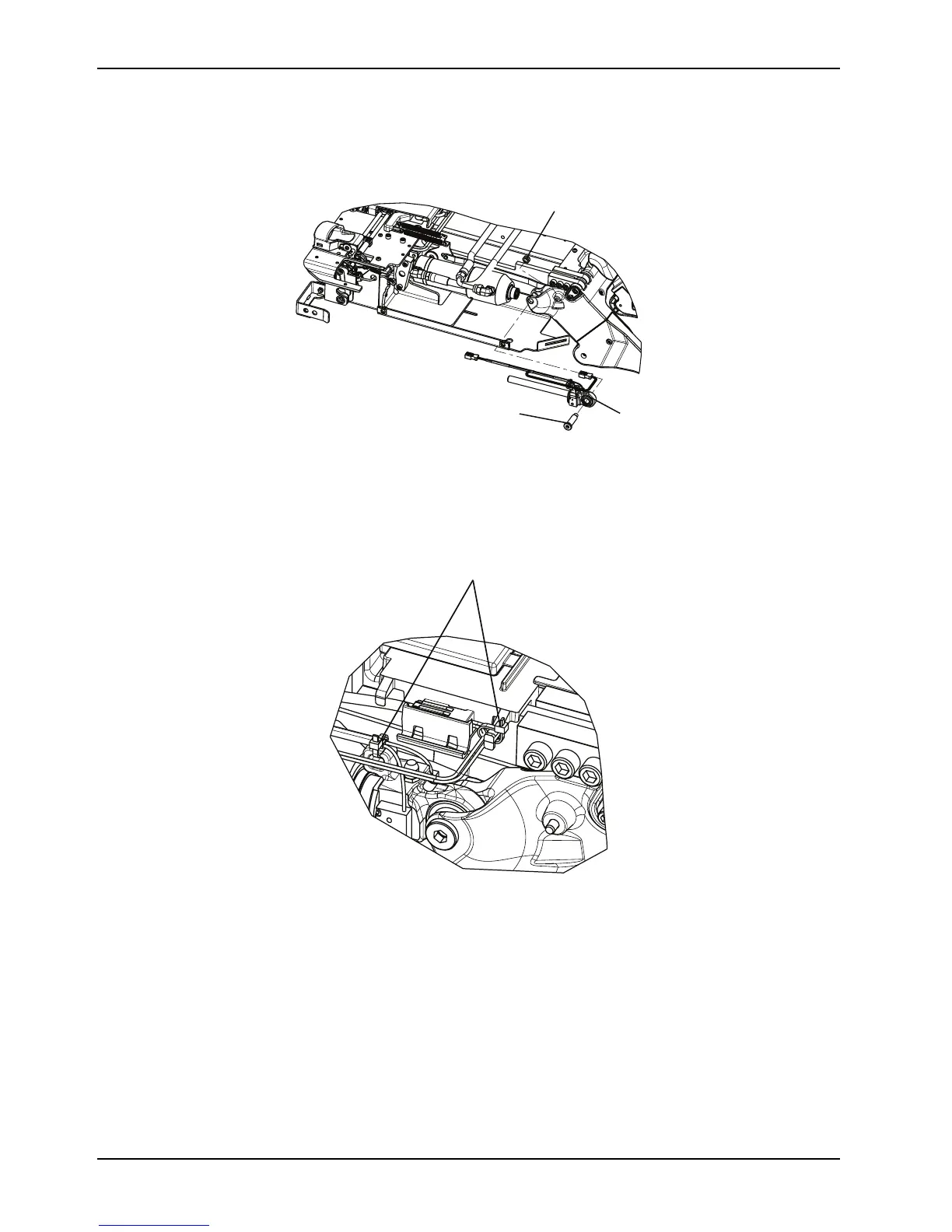

Figure 18: Hydraulic cylinder rod end assembly
5. Using diagonal pliers, cut the cable ties (D) that secure the hydraulic cylinder rod end assembly cable to the plastic
cover (Figure 19 on page 52).
Note: Pay attention to the location of all cable ties for reinstallation.
D
Figure 19: Cable ties location
6. While lifting up on the cylinder, pull the hydraulic cylinder rod end assembly (C) out and discard (Figure 18 on page
52).
7. Reverse steps to reinstall.
8. Verify proper operation of the product before returning it to service.
Communication board replacement
Tools Required
• Diagonal pliers
