Stryker 6390 User Manual

www.stryker.com 6390-009-002 REV D 71
Service
Primary coil replacement, foot end
Tools required
• 5/32'' hex wrench
• (2) 1/8'' hex wrench
• 1/4'' hex wrench
• 3/8'' hex driver
• Torque wrench (ft-lb) > 60 ft-lb
Procedure
1. Remove the trolley. See Trolley removal on page 37.
2. Remove the transfer. See Transfer removal on page 37.
3. Using a 3/8'' hex driver, remove the four anchor mounting posts (A) that secure the anchor to the floor plate (Figure
39 on page 71).
A

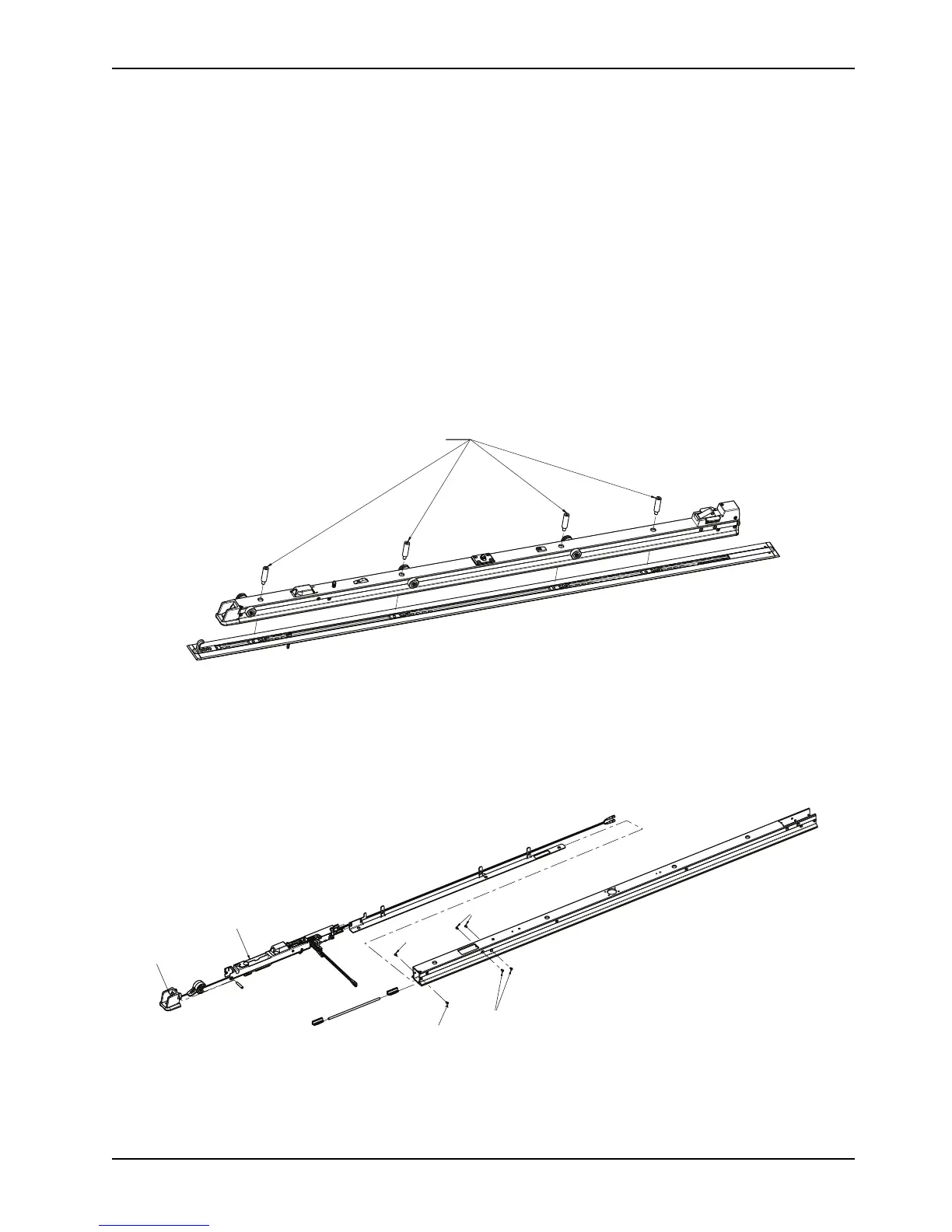

Figure 39: Remove the anchor mounting posts
4. Flip the anchor on its side and unplug the anchor plunger assembly cables from the patient compartment main
power cable at the head end.
5. Using a 1/8'' hex wrench, remove on the of the two flat head cap screws (B) that secure the release lever housing
(F) to the anchor (Figure 40 on page 71).
B
D
E
F
B
D
Figure 40: Remove the anchor plunger assembly
