www.stryker.com 6390-009-002 REV D 67
Service
Motor cable removal and replacement (Continued)

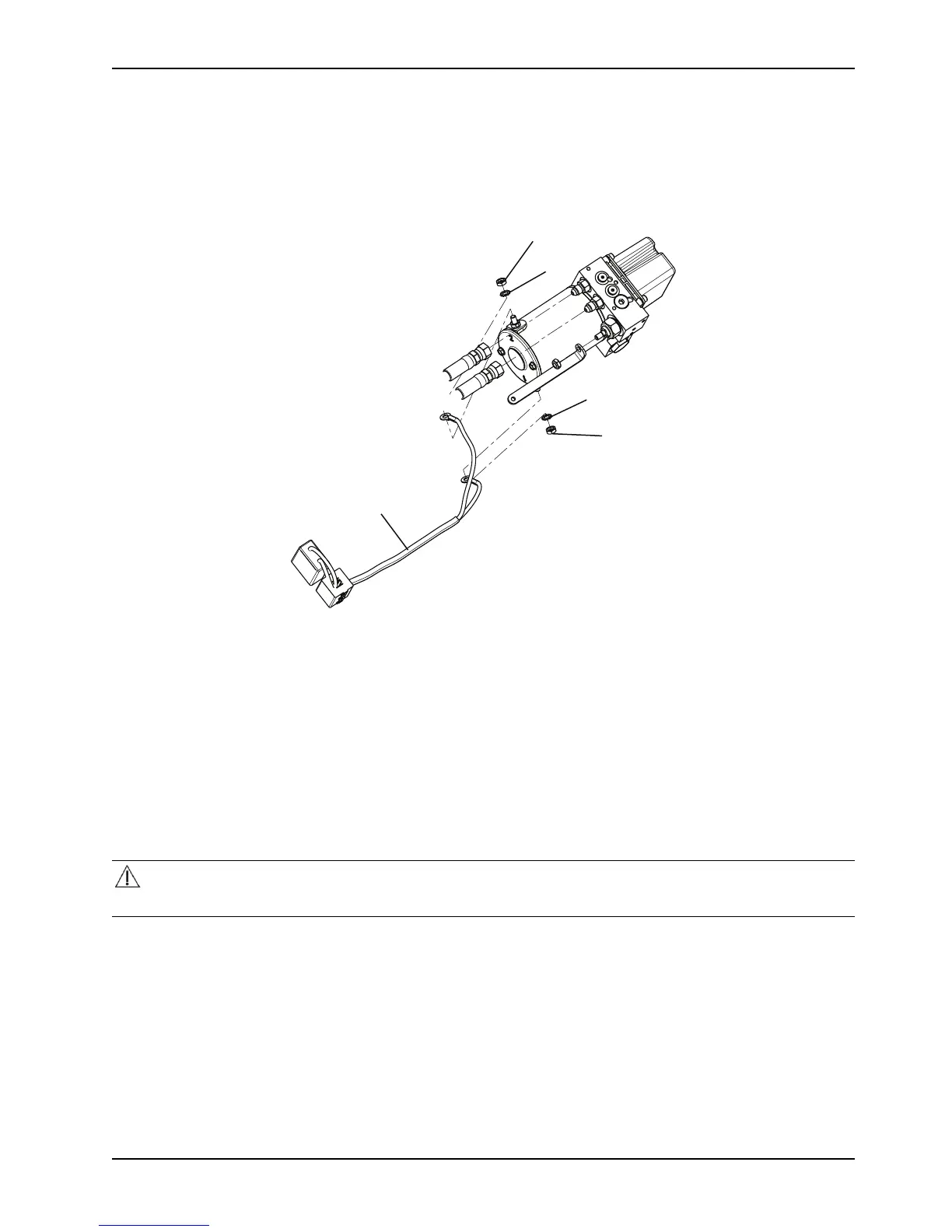

4. Using a 7/16" combination wrench, remove the two nuts (A) and star washers (B) that secure the motor cable (C) to
the motor assembly (Figure 35 on page 67).
Note: Pay attention to the cable routing and terminal orientation for reinstallation.
Figure 35: Motor assembly
5. Reverse steps to reinstall.
6. Verify proper operation of the product before returning it to service.
Motor replacement
Tools Required
• 7/16'' combination wrench
Procedure
CAUTION
When replacing the motor, damage may occur if motor armature or stator are bumped around.
1. Pull the trolley assembly out of the patient compartment until it locks into the loading position.
Note: This makes working on the product easier, but is not required.
2. Remove the trolley covers. See Cover removal and replacement on page 40.
3. Remove the motor cable. See Motor cable removal and replacement on page 66.
