Hose removal and replacement (Continued)
4. Using a T25 Torx driver, loosen (do not remove) the two screws (B) that secure the manifold fitting to the left wing
plate (Figure 33 on page 65).
Note: Do not remove the manifold fitting, just loosen the screws to gain better access to the nuts.

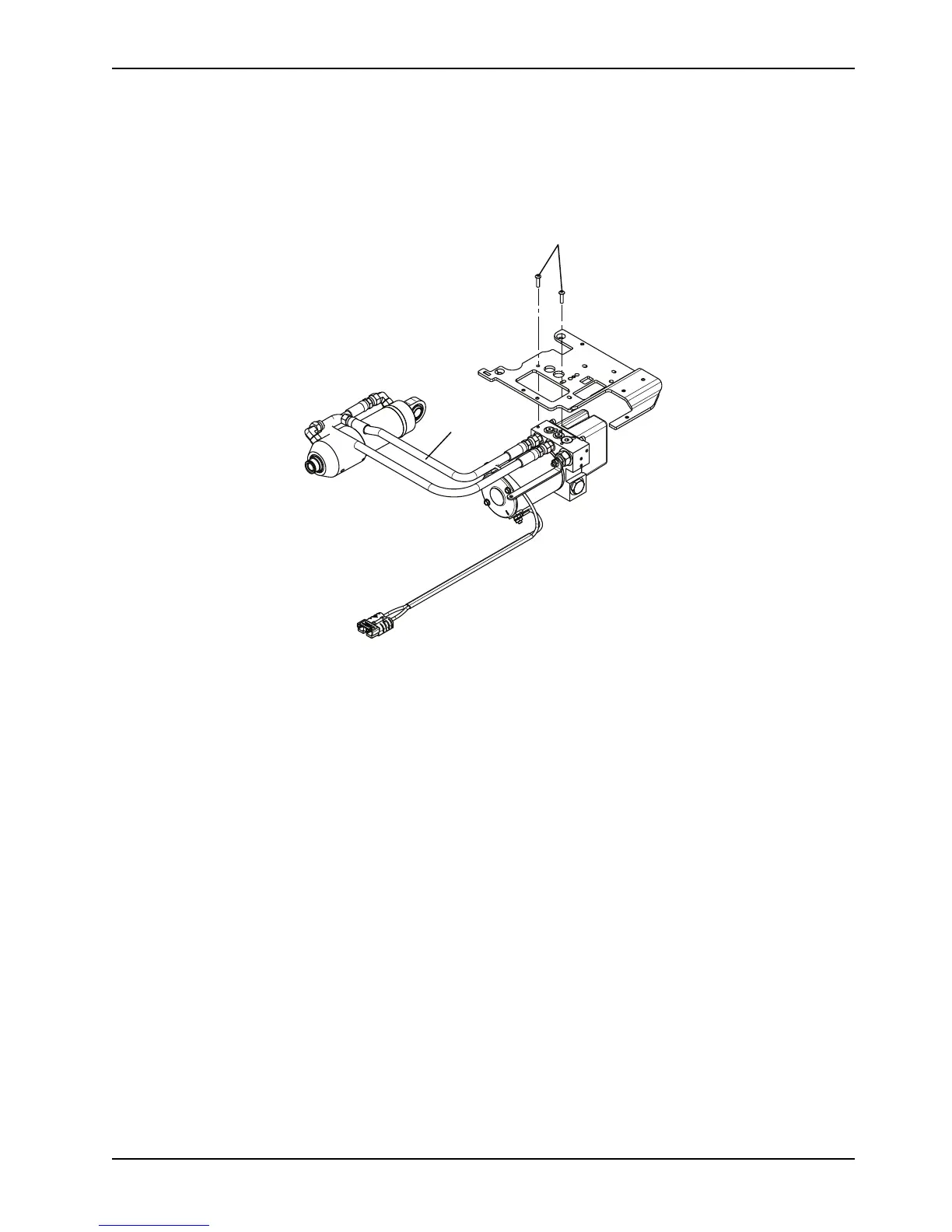

Figure 33: Manifold fitting screws location
5. Using two 9/16" combination wrenches, disconnect the bad hose from the manifold fitting. Discard the hose.
Note: Hydraulic fluid will leak from the cylinder and hoses. Lay down towels to catch fluid.
6. Reverse steps to reinstall.
7. Check the fluid level before returning the product to service. See Filling the reservoir on page 70.
8. Verify proper operation of the product before returning it to service.
Pump / motor assembly replacement
Tools Required
• (2) 9/16" combination wrench
Procedure
1. Pull the trolley assembly out of the patient compartment until it locks into the loading position.
Note: This makes working on the product easier, but is not required.
2. Remove the hydraulics assembly. See Hydraulics assembly removal and replacement on page 48.
To Next Page
