Stryker 6390 User Manual

64 6390-009-002 REV D www.stryker.com
Service
Hose removal and replacement (Continued)
1. Pull the trolley assembly out of the patient compartment until it locks into the loading position.
Note: This makes working on the product easier, but is not required.
2. Remove the trolley covers. See Cover removal and replacement on page 40.
3. Using an 11/16" combination wrench, disconnect the hydraulic hose (A) closest to the mounting bracket at the head
end of the trolley (Figure 32 on page 64 and Figure 33 on page 65).
Note: Hydraulic fluid will leak from the cylinder and hoses. Lay down towels to catch fluid.
A

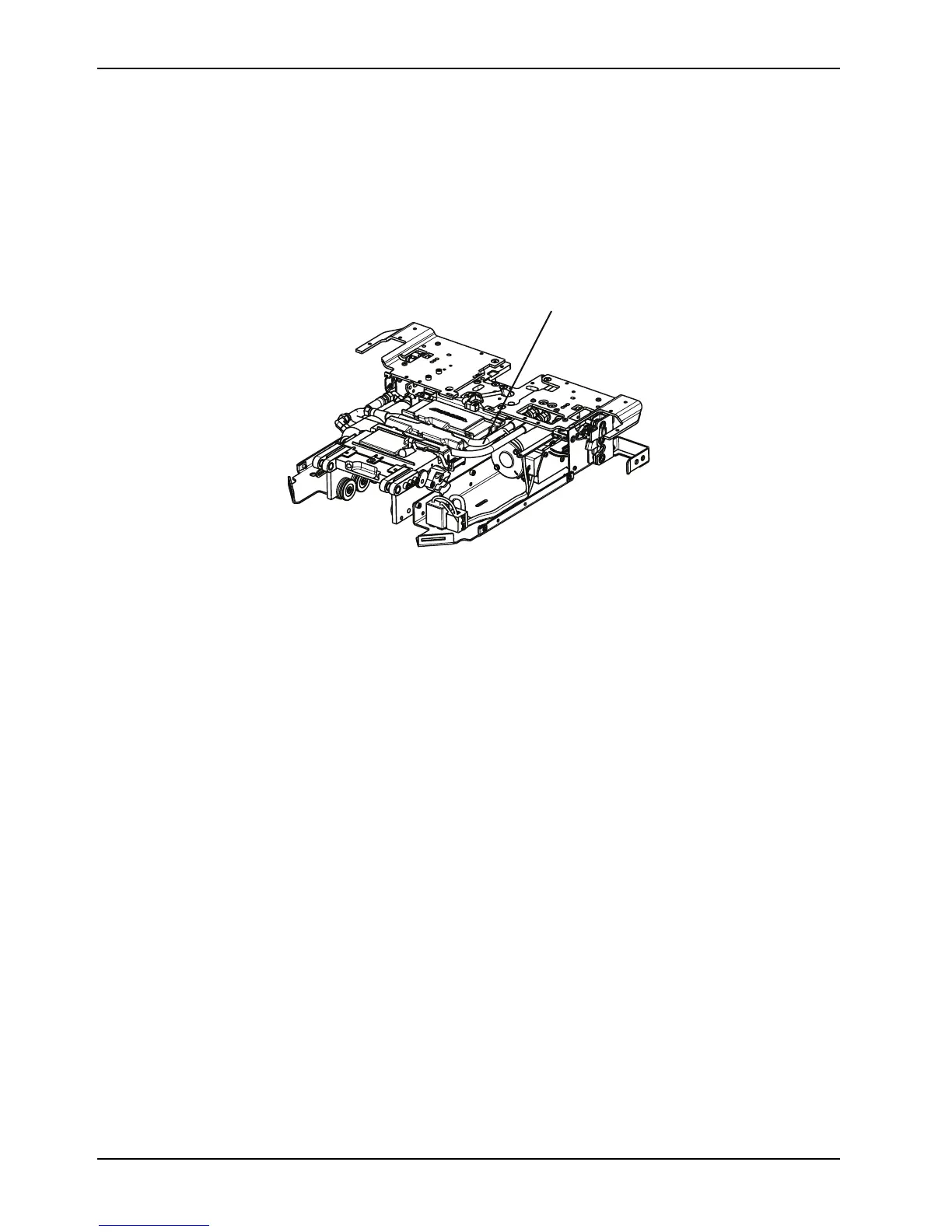

Figure 32: Hydraulic hose location
