www.stryker.com 6390-009-002 REV D 59
Service
Flat roller and V-guide roller replacement (Continued)
4. Reverse steps to reinstall. When reinstalling, torque all bolts to 235-317 in-lb.
5. Verify proper operation of the product before returning it to service.

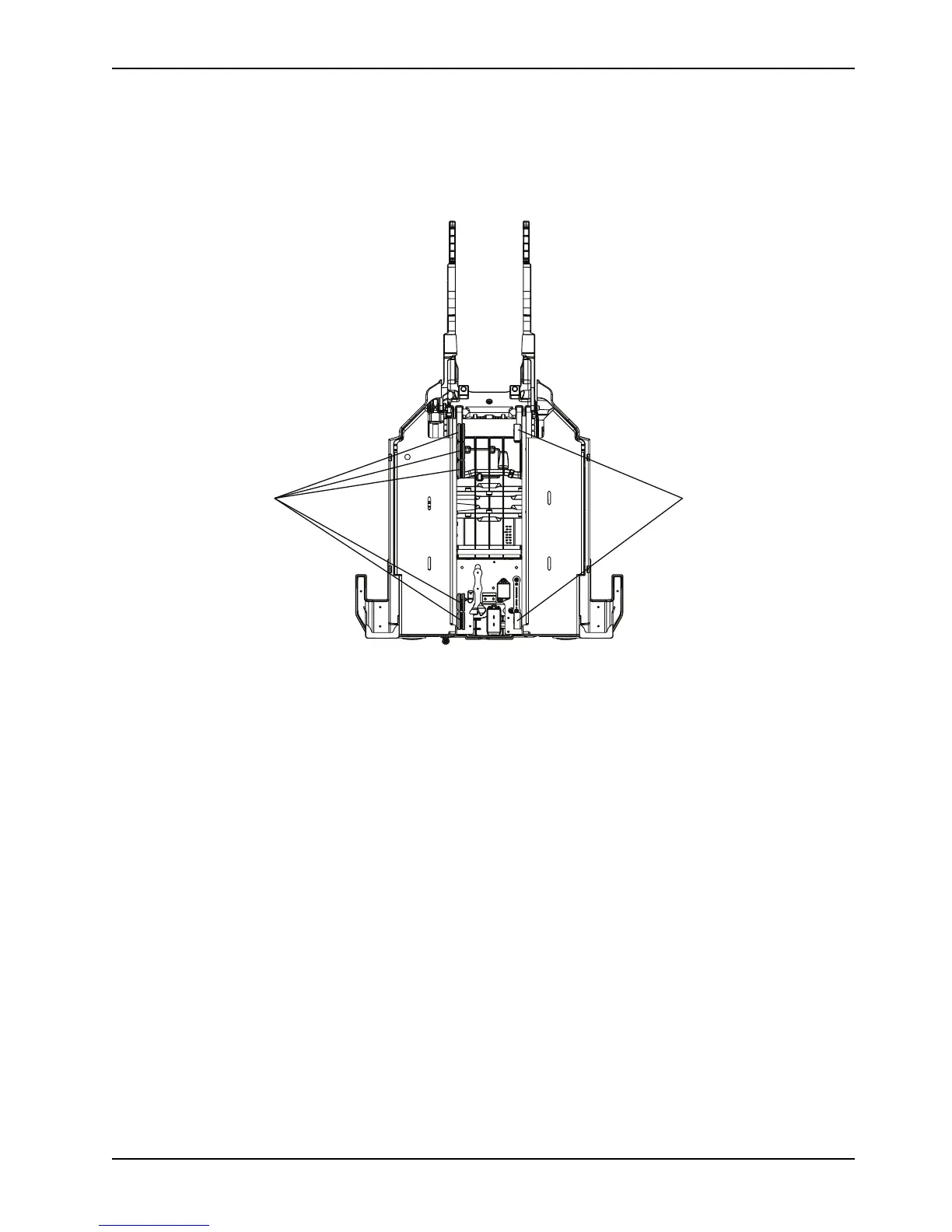

Figure 26: Trolley bottom view of the V-guide rollers
Hydraulic cylinder removal and replacement
Tools Required
• 1/4" hex wrench
• 1/8" hex wrench
• 1/2" combination wrench
• Diagonal pliers
• 5/8" combination wrench
• 3/16" hex wrench
• 11/16" hex wrench
Procedure
1. Pull the trolley assembly out of the patient compartment until it locks into the loading position.
Note: This makes working on the product easier, but is not required.
2. Press the manual release button on the Power-LOAD control panel until the lifting arms are in the lowest position.
3. Remove the trolley covers. See Cover removal and replacement on page 40.
