70 6390-009-002 REV D www.stryker.com
Service
Battery replacement (Continued)
3. Pull to remove the battery housing assembly (C) (Figure 38 on page 70).

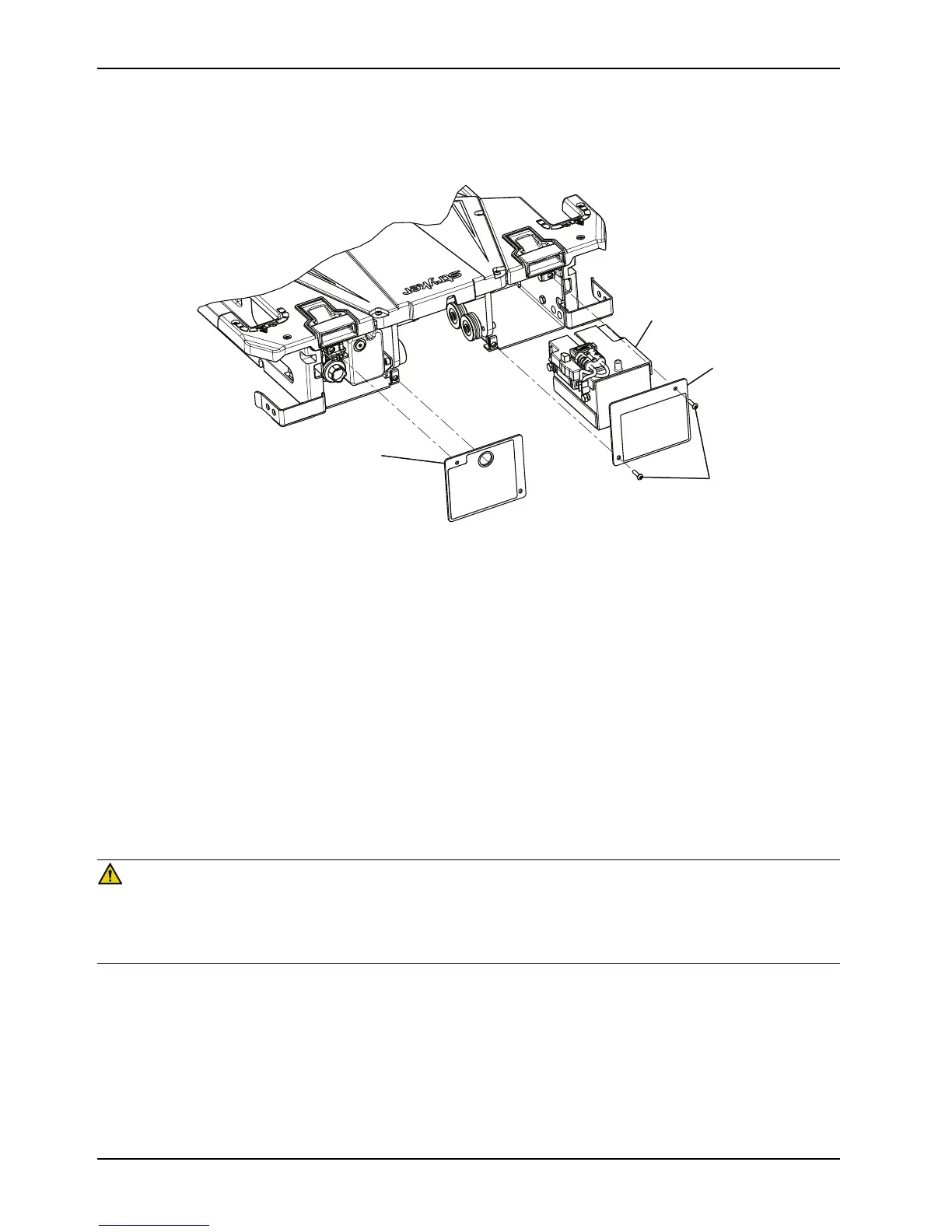

Figure 38: Battery housing components
4. Remove and discard the battery.
Note: Do not dispose of as unsorted municipal waste. Refer to your local distributor for return and/or collection
systems available in your country.
5. Install the replacement pressure compensated flow control valve.
6. Reverse steps to reinstall.
7. Verify proper operation of the product before returning it to service.
Filling the reservoir
Tools Required
• 3/16'' hex wrench
Procedure
WARNING
Use only Mobil Mercon® V Blend ATF Oil (6500-001-293) in the specified quantity. Do not overfill the reservoir with oil.
See the Mobil Mercon® V Blend ATF Oil material safety data sheet (MSDS) issued by the manufacturer for safety
information (Exxon Mobil Corporation, 1-(800) 947-9147, http://www.exxon.com, http://www.mobil.com, product code:
20103020B010, 525147-00, 97X826).
1. Pull the trolley assembly out of the patient compartment until it locks into the loading position.
2. Ensure that the lifting arms are in the down position before filling the reservoir.
3. Using a 3/16" hex wrench, remove the fill plug (D). (Figure 38 on page 70). See Battery replacement on page 69.
4. Fill the reservoir up to the bottom of the fill port with Mobil Mercon
®
V Blend ATF Oil (6500-001-293).
5. Reinstall the plug.
