www.stryker.com 6390-009-002 REV D 51
Service
Hydraulics assembly removal and replacement (Continued)
12. Remove the pin (I) and lift the hydraulic cylinder out (Figure 17 on page 51).

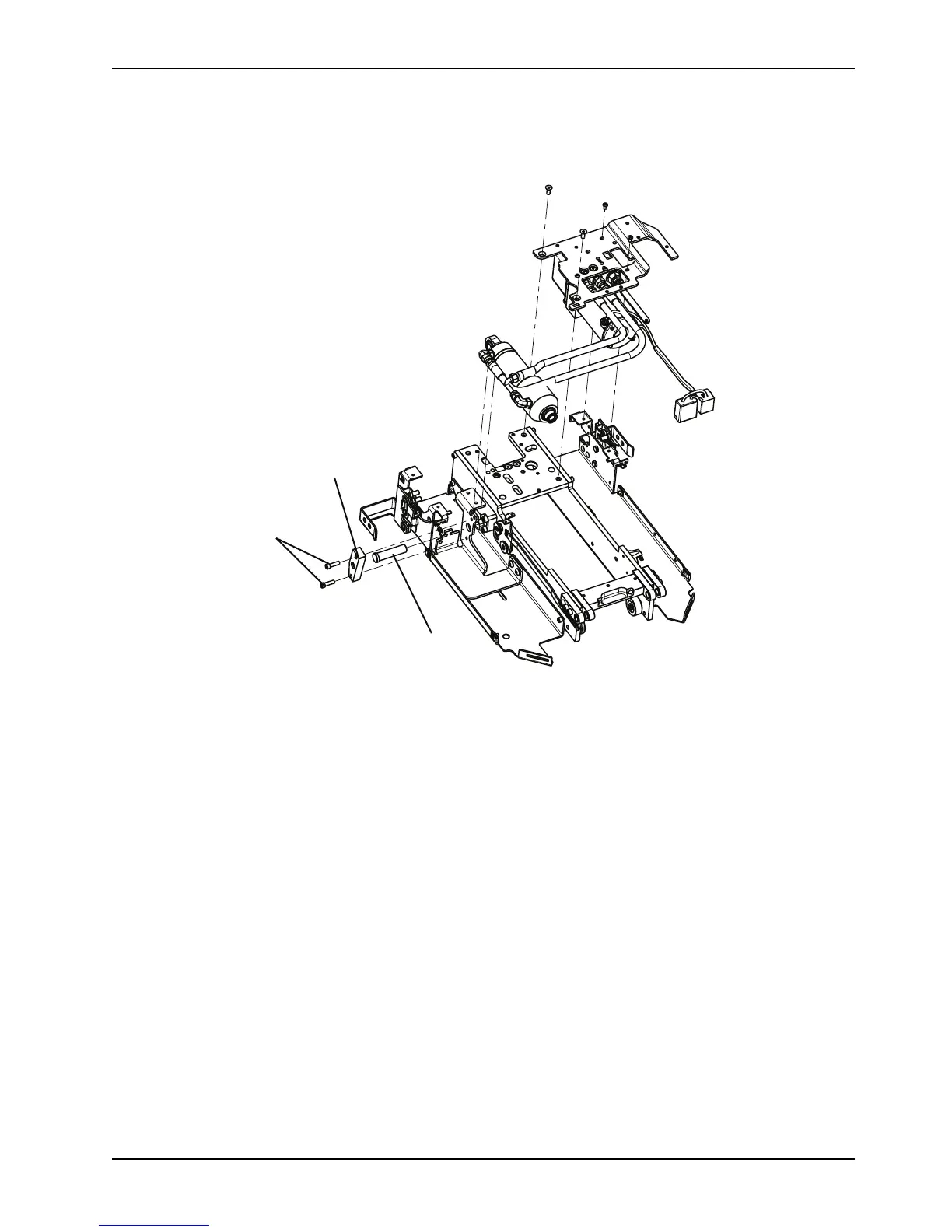

Figure 17: Pin and hydraulic cylinder removal
13. Remove the hydraulics assembly and properly discard.
Note: Do not dispose of as unsorted municipal waste. Refer to your local distributor for return or collection systems
available in your country.
14. Reverse steps to reinstall.
15. Verify proper operation of the product before returning it to service.
Hydraulic cylinder rod end replacement
Tools Required
• 1/4" hex wrench
• 1/2" combination wrench
• Diagonal pliers
Procedure
1. Pull the trolley assembly out of the patient compartment until it locks into the loading position.
2. Remove the trolley covers. See Cover removal and replacement on page 40.
3. Press the main power button to turn the product off.
