Hydraulics assembly removal and replacement (Continued)
9. Using diagonal pliers, cut the cable ties (F) that secure the hydraulic cylinder rod end assembly cable to the plastic
cover (Figure 16 on page 50).
Note: Pay attention to the location of all cable ties for reinstallation.

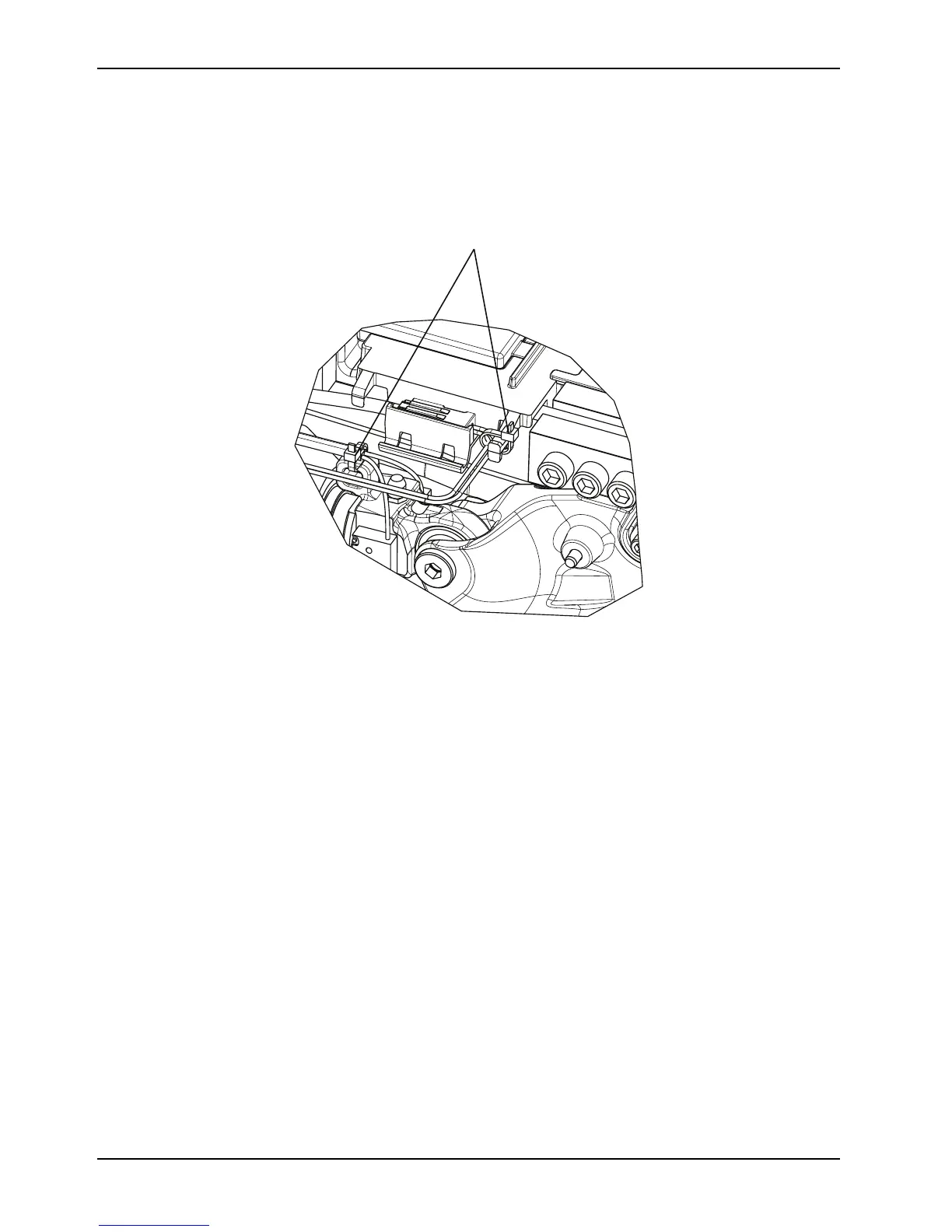

Figure 16: Cable ties location
10. While lifting up on the cylinder, pull the hydraulic cylinder rod end assembly out. Save the hydraulic cylinder rod end
assembly for reinstallation.
11. Using a 3/16" hex wrench, remove the two screws (G) that secure the pin bracket (H) to the trolley (Figure 17 on
page 51).
