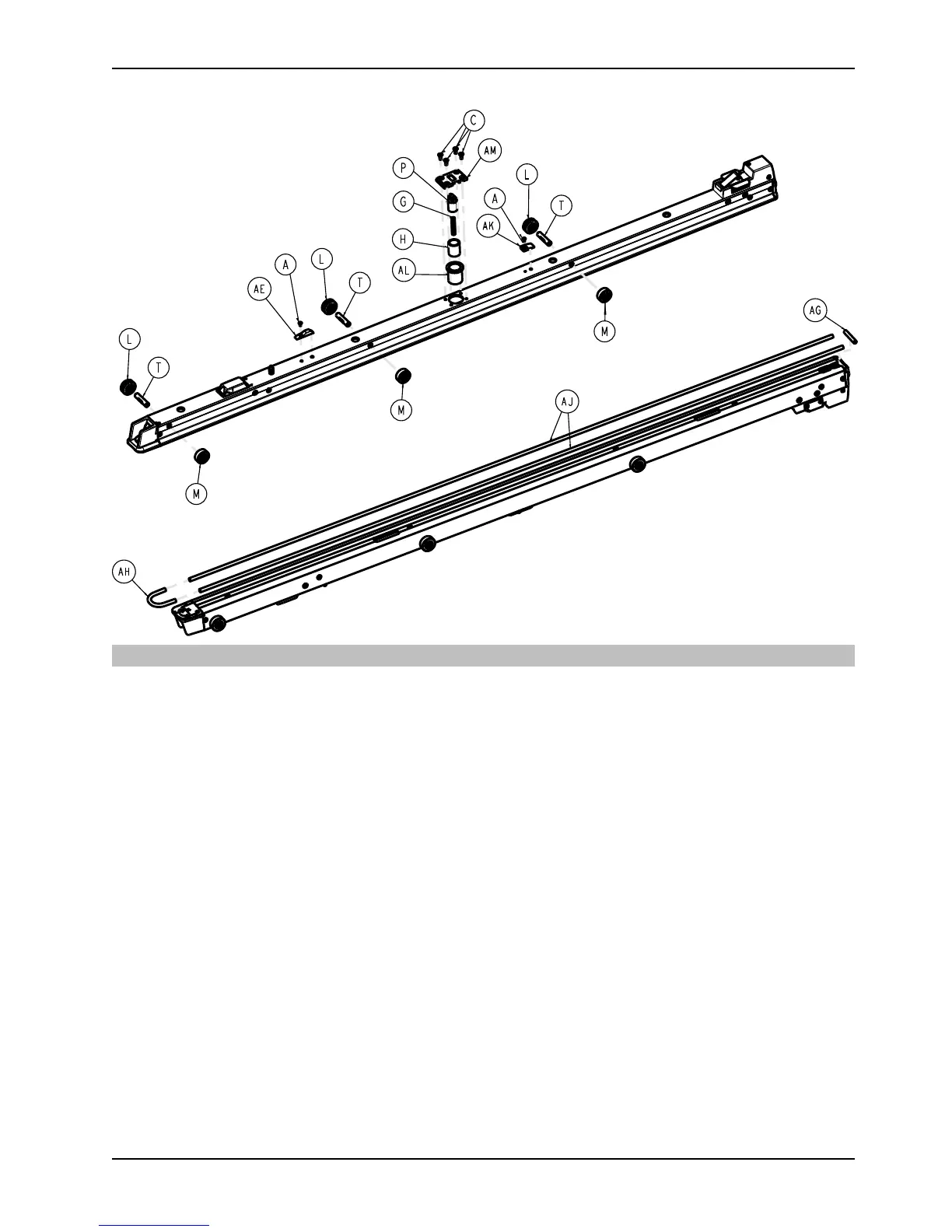

Anchor assembly
Torque item L and M
to 235 - 317 in-lb
Item Number Name
Quantity
A 0001-193-000 Flat head cap screw 12
B 0001-194-000 Flat head cap screw
4
C
0001-195-000 Flat head cap screw
4
D 0015-087-000
Square nut
2
E 0038-111-000 Zip tie
5
F 0038-887-000
Compression wire
1
G
0038-606-000
Compression wire
1
H 0081-439-000 Bronze bearing
1
J 6390-101-023 Anchor plunger assembly, middle on
page 89
1
K 6390-001-024 Anchor pawl assembly, head end on
page 85
1
L 6390-001-025 V-guide roller assembly 3
M 6390-001-027 Flat roller assembly 3
N 6390-101-105
Anchor trigger housing, foot end
1
P 639001010074
Transfer lock pin assembly
1
R 6390-001-100 Machined anchor extrusion
1
T 6390-001-103 Anchor roller axle 3
U 6390-001-104 Anchor trigger
1
V 6390-001-112 Anchor pivot pin, threaded
1
W 6390-001-113 Anchor drive block 3
