Stryker Power-LOAD 6390 Maintenance Manual

A
Torque item A
to 60±10 ft-lb

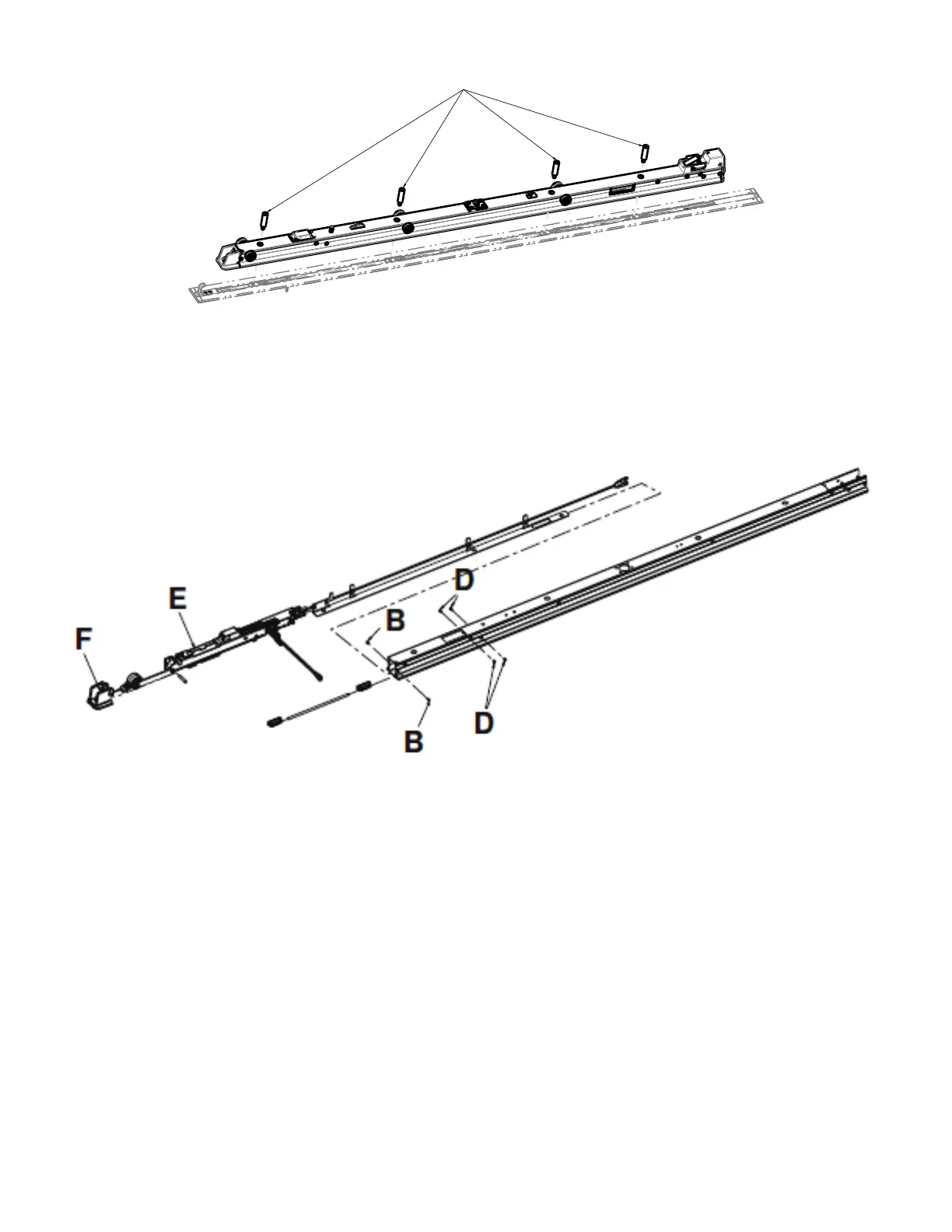

FFiigguurree 4466 –– RReemmoovvee tthhee aanncchhoorr mmoouunnttiinngg ppoossttss
4. Flip the anchor on its side and unplug the anchor plunger assembly cables from the patient compartment main power
cable at the head end.
5. Using a 1/8'' hex wrench, remove on the of the two flat head cap screws (B) that secure the release lever housing (F) to
the anchor (Figure 47).
FFiigguurree 4477 –– RReemmoovvee tthhee aanncchhoorr pplluunnggeerr aasssseemmbbllyy
6. Using the second 1/8'' hex wrench, insert the wrench into the anchor pivot pin to remove the other screw and remove
the release lever housing.
NNoottee -- The LED cable will still be attached. Do not pull the parts to prevent damage.
7. Using a 1/4'' hex wrench, remove the two screws (C) that secure the flat roller assembly and the V-guide roller assembly
on the foot end of the anchor assembly (Figure 48). Save all parts.
6390-309-002 Rev AB.0 61 EN
