Stryker Prime Series User Manual

For product feature availability for your model, see Product features (page 19).
To setup nurse call communication:
1. Plug the nurse call cable into the 1/4” nurse call cable connector on the litter frame at the head end of the product.
2. Plug the nurse call cable into the applicable connection (patient station, head wall, or docker station).
NNoottee -- Do not wrap the nurse call cable around the head end push handles or other objects to avoid the risk of product,
cable, or head wall damage.
SSeettttiinngg uupp iiBBeedd LLooccaattoorr,, PPrriimmee CCoonnnneecctt
For instructions about how to mount and connect to the iiBBeedd Locator, see the iiBBeedd Locator Operations and Installation
Manual.
For product feature availability for your model, see
Product features (page 19).

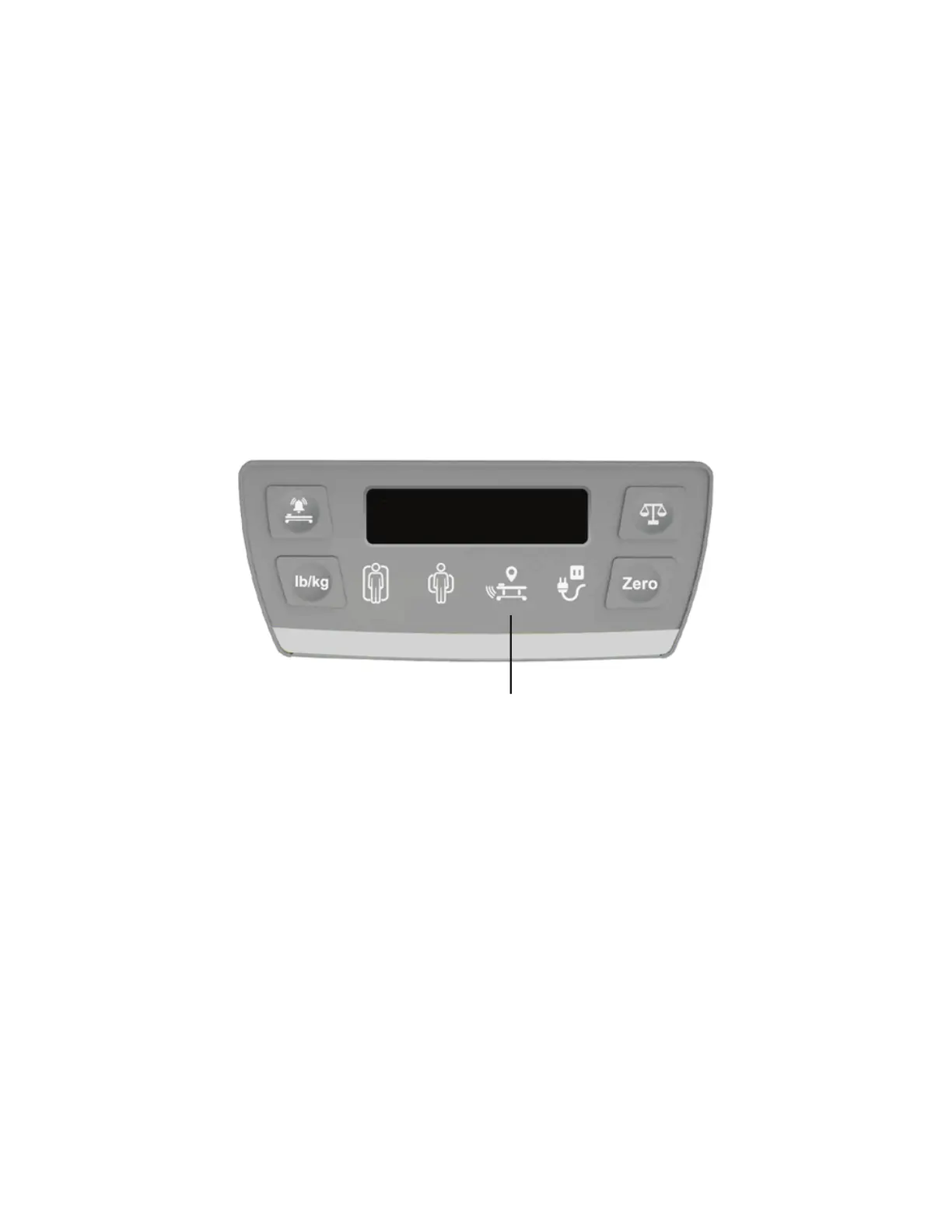

The LLooccaattiioonn icon (A) illuminates green when the product is connected to the iiBBeedd Locator (Figure 7).
The LLooccaattiioonn icon illuminates amber when the product is not connected to the iiBBeedd Locator.
NNoottee -- The LLooccaattiioonn icon only illuminates if the wireless option is enabled and the power cord is plugged into a wall outlet.
A
FFiigguurree 77 –– LLooccaattiioonn iiccoonn
EN 18 1115-309-001 Rev AD.0

Stryker Prime Series Specifications

General

Model	Prime Series
Category	Medical Equipment
Power Requirements	120V AC, 60Hz
Battery Backup	Yes
Type	Medical Bed
Weight Capacity	500 lbs
Features	integrated scale
Compatibility	Compatible with Stryker
