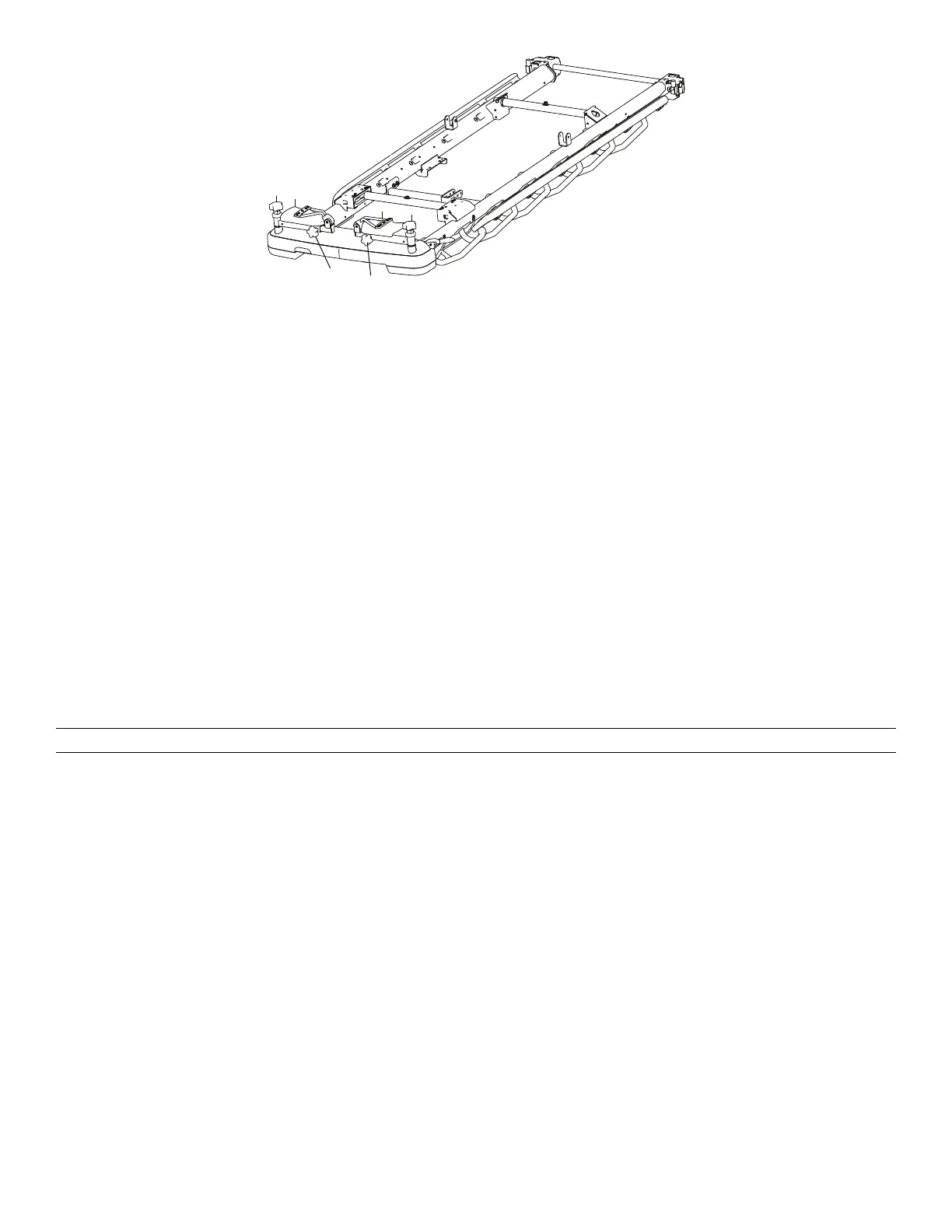

FFiigguurree 2277 –– SSttoowwiinngg tthhee ffoooott ssuuppppoorrttss
You cannot purchase the following options and accessories if you select the foot support:
• Foot end push handles
• Defibrillator tray
• Defibrillator tray/foot extender
• Serving tray holder/footboard
• Footboard/chart holder
• Foot end IV poles
NNoottee
• Do not use the foot supports to store patient belongings.
• Do not use the foot supports as a push/pull device. Product damage may occur.
• Always apply the brakes when you use the foot supports to avoid instability.
• Do not use the Fowler backrest or Gatch with the foot supports.
PPoossiittiioonniinngg tthhee ttwwoo--ssttaaggee ppeerrmmaanneennttllyy aattttaacchheedd IIVV ppoollee
WWAARRNNIINNGG -- Do not use the IV pole as a push/pull device. Product damage may occur.
You can purchase the product with the two-stage IV pole option permanently attached at the head end, foot end, or both
ends of the product. The IV pole is equipped with a telescopic pole that extends to provide a second height position. You
can fold and store the IV pole when not in use.
To position the two-stage IV pole (Figure 28):
1. Lift and pivot the pole from the storage position.
2. Push the IV pole down until the IV pole locks in place.
3. To raise the height of the IV pole, pull up on the telescoping portion (A) until the pole locks in place at the fully raised
position.
4. Rotate the IV hangers (B) to the desired position and hang the IV bags.
5. To lower the IV pole, hold the telescoping portion of the IV pole, turn the latch (C), and lower the telescoping portion.
NNoottee
• Do not hang IV bags that exceed 40 lb (18 kg) on the IV pole.
• Always make sure that the IV pole is at a low height to pass safely through door openings when you transport a
patient.
EN 46 1115-309-001 Rev AD.0
