To position the lateral X-ray cassette holder:
1. Apply the brakes. Push on the product to make sure that the brakes work.

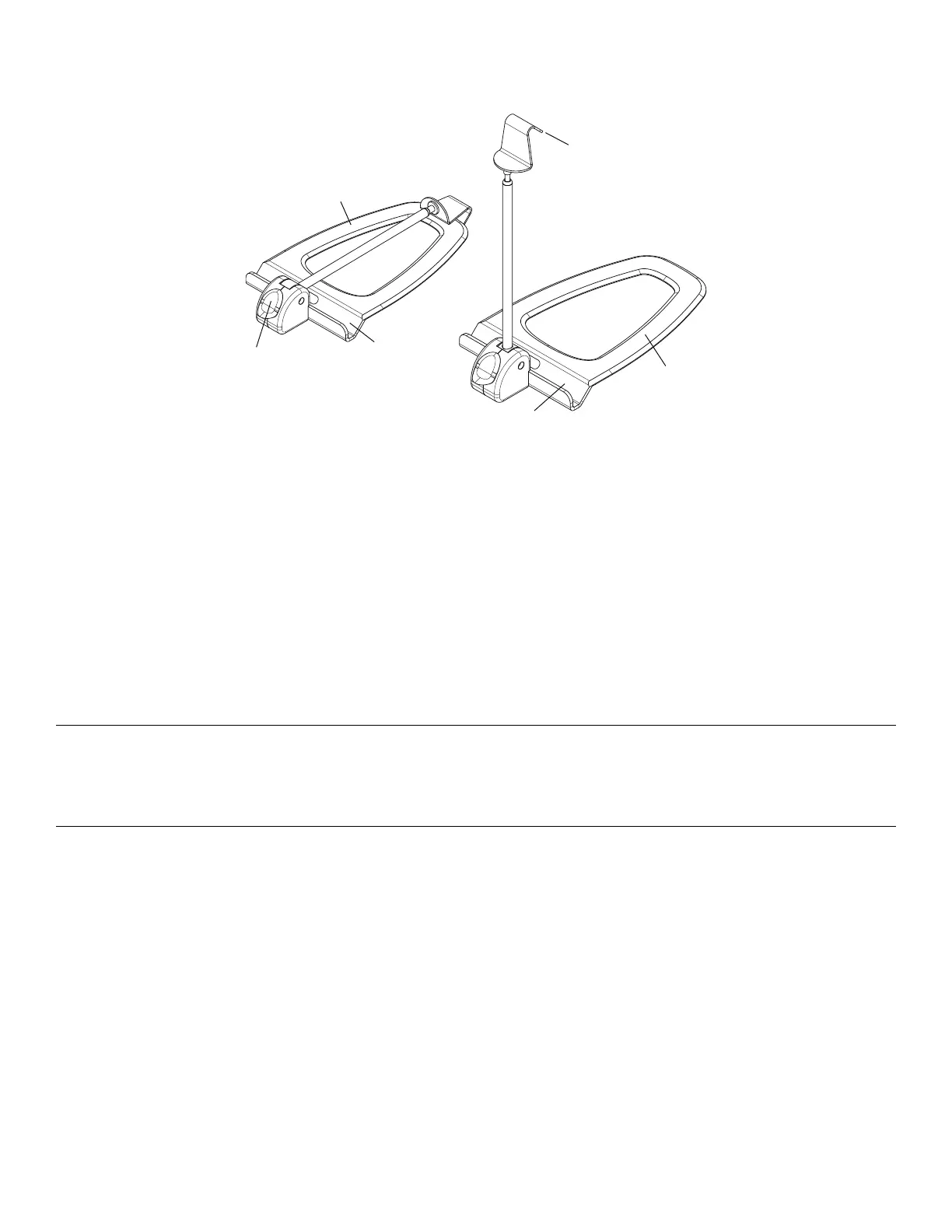

FFiigguurree 3344 –– LLaatteerraall XX--rraayy ccaasssseettttee hhoollddeerr
2. Press down on the yellow release button (A) to open the lateral cassette holder (Figure 34).
3. Slide the flat base (B) between the mattress and the patient platform.
4. Position the lateral cassette holder in the desired location.
5. Place the X-ray cassette in the cassette canal (C).
6. Pull up on the cassette hook (D) to adjust the height of the arm to fit over the X-ray cassette to hold the cassette in
place.
7. Reverse steps to remove the cassette and stow the lateral cassette holder.
IInnsseerrttiinngg oorr rreemmoovviinngg XX--rraayy ccaasssseetttteess,, PPrriimmee XX
WWAARRNNIINNGG
• Always refer to local, state, and federal guidelines in addition to facility protocols for safety before you use PPrriimmee XX with
radiation generating devices. Radiation generating devices may produce residual, stray, or scattered radiation.
• Always use caution when you take X-rays with the Fowler backrest in the upright position or when you use a lateral
cassette.
PPrriimmee XX provides both an articulating radiographic support surface and a platform below the patient support surface for X-
ray cassette placement. Working with medical X-ray systems, the radiographic support surface allows the capture of clinical
X-rays (AP full body, full body lateral option, and upright chest option) while the patient is on the product. You can insert
cassettes from the head end, foot end, and either side of the product.
To insert an X-ray cassette:
1. Center the patient on the product with the position indicator labels located on all sides of the product (Figure 35).
2. Insert an X-ray cassette below the patient surface. Use the cassette guides to assist in positioning the X-ray cassette.
EN 52 1115-309-001 Rev AD.0
