3. Release the brakes. See Applying and releasing the brakes (page 19).
4. Push down on the steer (green) side of the brake/steer pedal (A) to put the brake/steer pedal in the steer position and
apply BBiigg WWhheeeell (Figure 11).
NNoottee
• The BBiigg WWhheeeell (B) does not pivot. You cannot move the product sideways when you apply BBiigg WWhheeeell.
• When you apply BBiigg WWhheeeell (B), the product is raised and the foot end casters (C) are elevated. The product rests on
the head end casters and BBiigg WWhheeeell makes the product easier to steer.
A
B
C

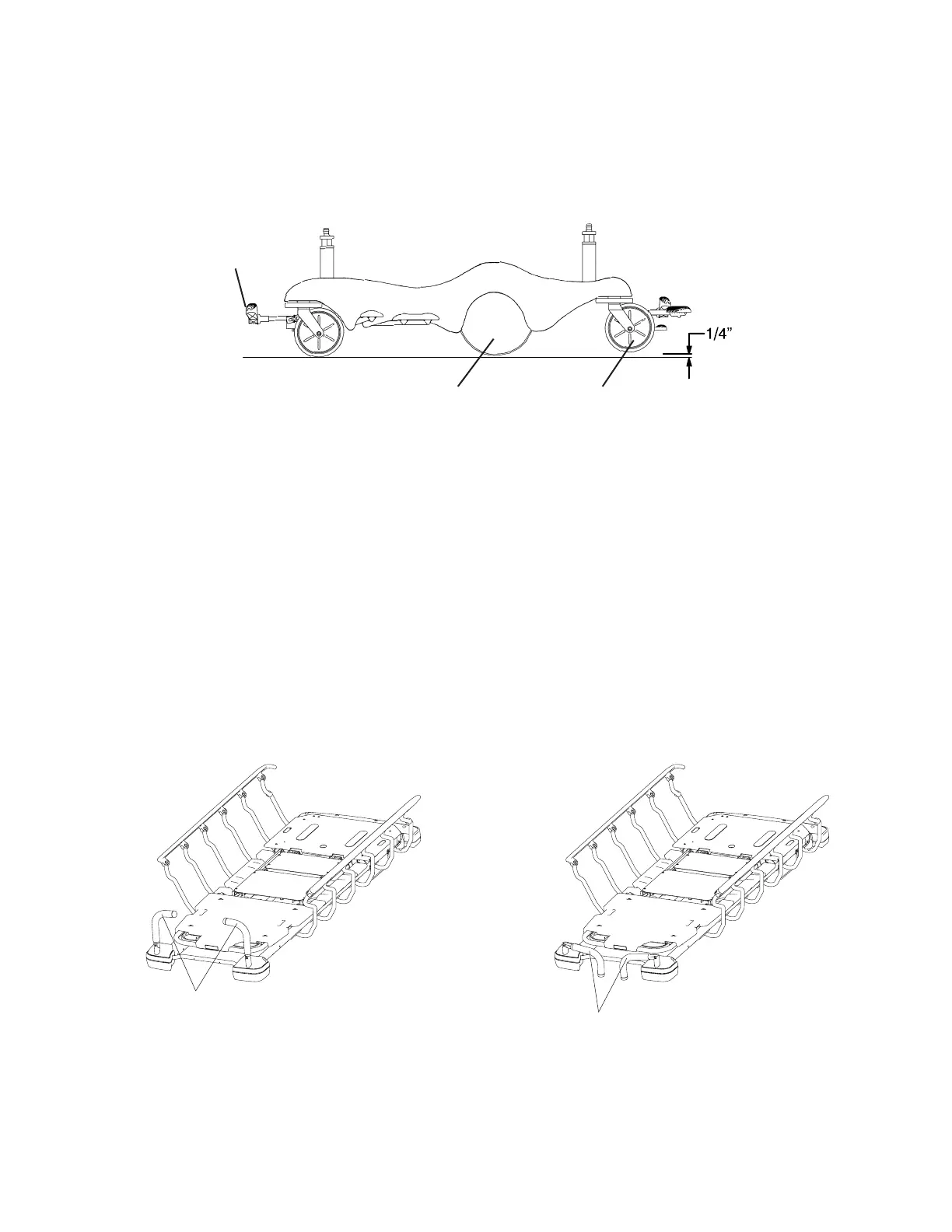

FFiigguurree 1111 –– TTrraannssppoorrttiinngg wwiitthh BBiigg WWhheeeell
5. For Model 1125 only, turn the OOnn//DDrriivvee-OOffff//MMaannuuaall switch to the OOffff//MMaannuuaall position.
6. Move the product with the push handles.
7. Apply the brakes to lock the product in place.
PPoossiittiioonniinngg oorr ssttoowwiinngg tthhee hheeaadd eenndd ppuusshh hhaannddlleess
For product feature availability for your model, see Product features (page 19).
To position or stow the head end push handles:
1. Pivot the push handles (A) up from the head end of the product (Figure 12).
2. Push down on the push handles to lock into position.
A
FFiigguurree 1122 –– PPoossiittiioonniinngg tthhee hheeaadd eenndd ppuusshh hhaannddlleess
B
FFiigguurree 1133 –– SSttoowwiinngg tthhee hheeaadd eenndd ppuusshh hhaannddlleess
3. Reverse steps to stow the push handles (B) (Figure 13).
