Stryker Prime Series User Manual

The scale system allows you to weigh a patient. For PPrriimmee electric and PPrriimmee CCoonnnneecctt models, the scale system has a
battery backup. See
Charging the battery pack (page 38).
Use the operator keypad to operate the scale system or bed exit. See
Operator keypad icon/button identification (page 33).
OOppeerraattoorr kkeeyyppaadd iiccoonn//bbuuttttoonn iiddeennttiiffiiccaattiioonn
For product feature availability for your model, see Product features (page 19).
C
D
E
F
G
H
A
B
I

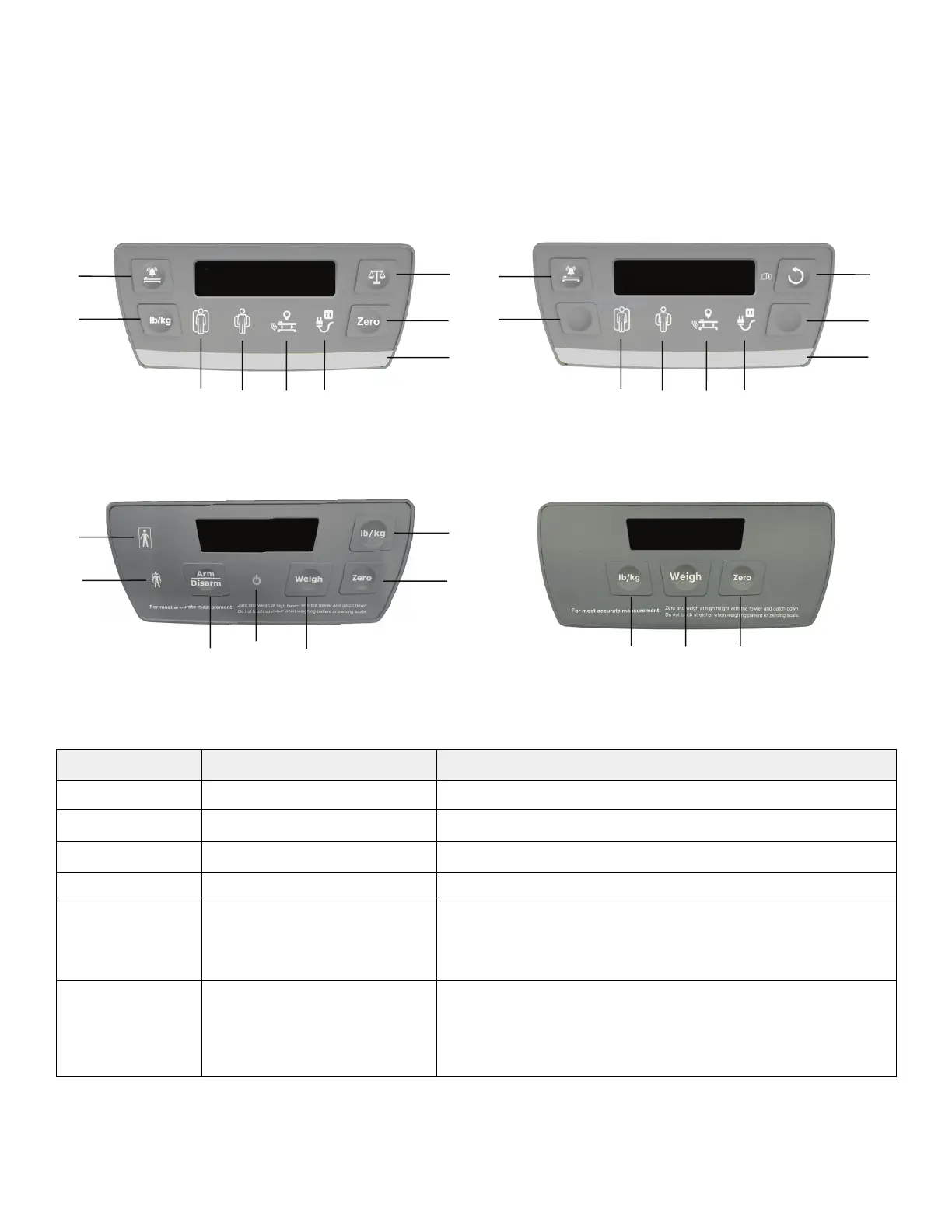

FFiigguurree 2200 –– PPrriimmee CCoonnnneecctt kkeeyyppaadd,, wwiitthh bbeedd eexxiitt aanndd
ssccaallee
J
E
F
G
H
A
K
I
L
FFiigguurree 2211 –– PPrriimmee CCoonnnneecctt kkeeyyppaadd,, wwiitthh bbeedd eexxiitt,,
wwiitthhoouutt ssccaallee
B
D
A
H
C
E
F
FFiigguurree 2222 –– PPrriimmee kkeeyyppaadd,, wwiitthh bbeedd eexxiitt aanndd ssccaallee
B D
C
FFiigguurree 2233 –– PPrriimmee aanndd PPrriimmee XX kkeeyyppaadd,, wwiitthhoouutt bbeedd
eexxiitt,, wwiitthh ssccaallee
BBuuttttoonn//iiccoonn NNaammee DDeessccrriippttiioonn
A Arm/Disarm Arms and disarms bed exit
B lb/kg Changes the displayed unit of measure
C Weigh Weighs the patient
D Zero Zeroes/tares the scale
E Zone 1 Least sensitive setting for bed exit
The larger zone gives the patient greater freedom of movement
on the product before the bed exit alarm activates
F Zone 2 Most sensitive setting for bed exit
The smaller zone gives the patient less freedom of movement on
the product and activates the bed exit alarm when the patient
moves away from the centralized zone
1115-309-001 Rev AD.0 33 EN
