Stryker Prime Series User Manual

A C DB

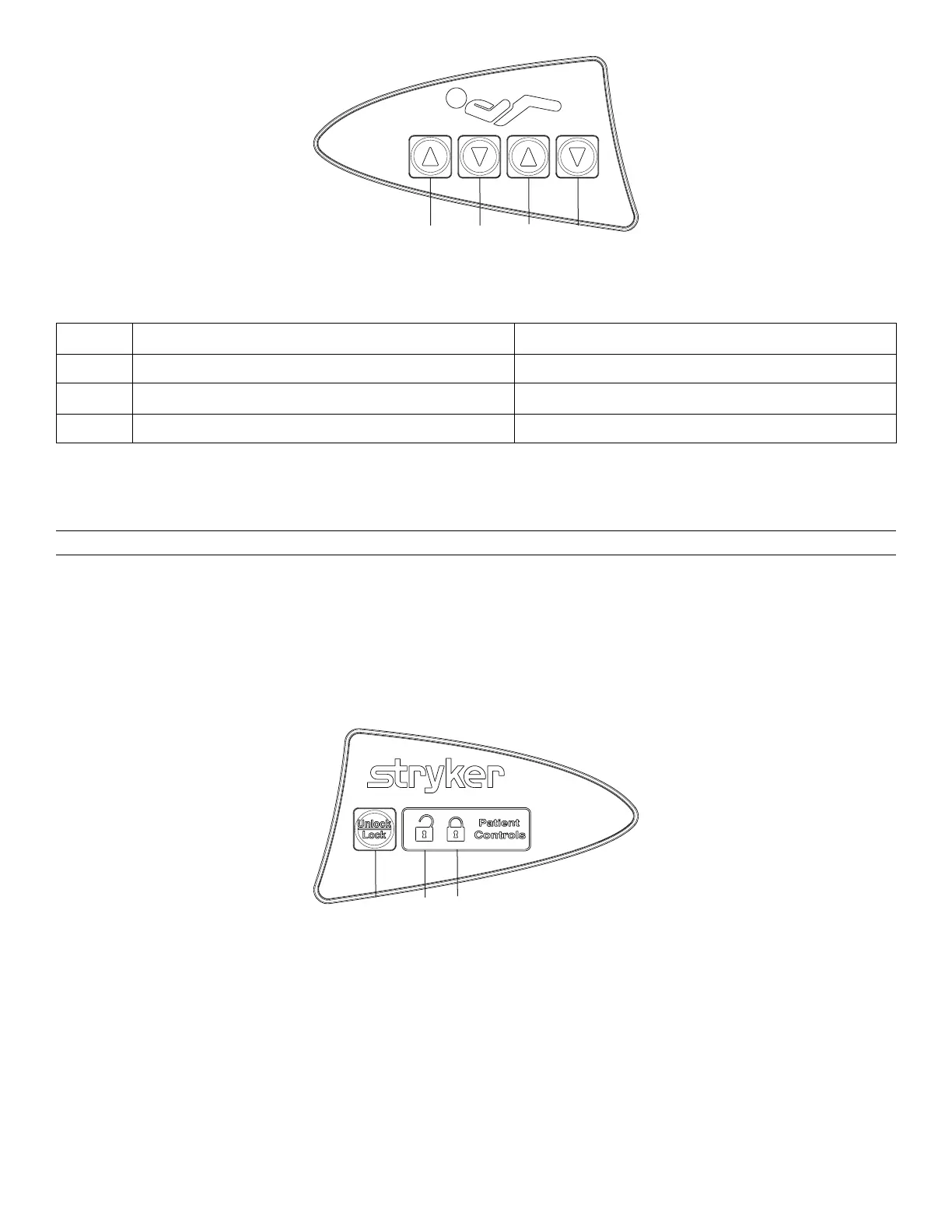

FFiigguurree 1155 –– OOppeerraattoorr ccoonnttrrooll ppaanneell -- eelleeccttrriicc lliitttteerr
A
Fowler up
Raises the Fowler backrest
B Fowler down Lowers the Fowler backrest
C
Gatch up
Raises the Gatch
D Gatch down Lowers the Gatch
LLoocckkiinngg aanndd uunnlloocckkiinngg tthhee ppaattiieenntt ccoonnttrrooll ppaanneell lloocckkoouutt,, eelleeccttrriicc lliitttteerr
WWAARRNNIINNGG -- Always operate the product when all operators are clear of the mechanisms.
For product feature availability for your model, see
Product features (page 19).
To lock the siderail patient control panel, press UUnnlloocckk//LLoocckk (A) once (Figure 16).
NNoottee -- The lock icon (C) illuminates amber when the patient controls are locked.
To unlock the siderail patient control panel, press UUnnlloocckk//LLoocckk (A) a second time.
NNoottee -- The unlock icon (B) illuminates green when the patient controls are unlocked.
A CB
FFiigguurree 1166 –– PPaattiieenntt ccoonnttrrooll ppaanneell lloocckkoouutt
NNoottee
• Always plug the power cord into a grounded, hospital grade wall outlet.
• You can lock the patient control panel to prevent the patient from moving the Fowler backrest and Gatch.
• The siderail patient control panel is not backlit when you lock the patient control panel.
1115-309-001 Rev AD.0 27 EN
