Micro Series
Micro Series 1-53
Document generated:29.06.17
SW V1.1

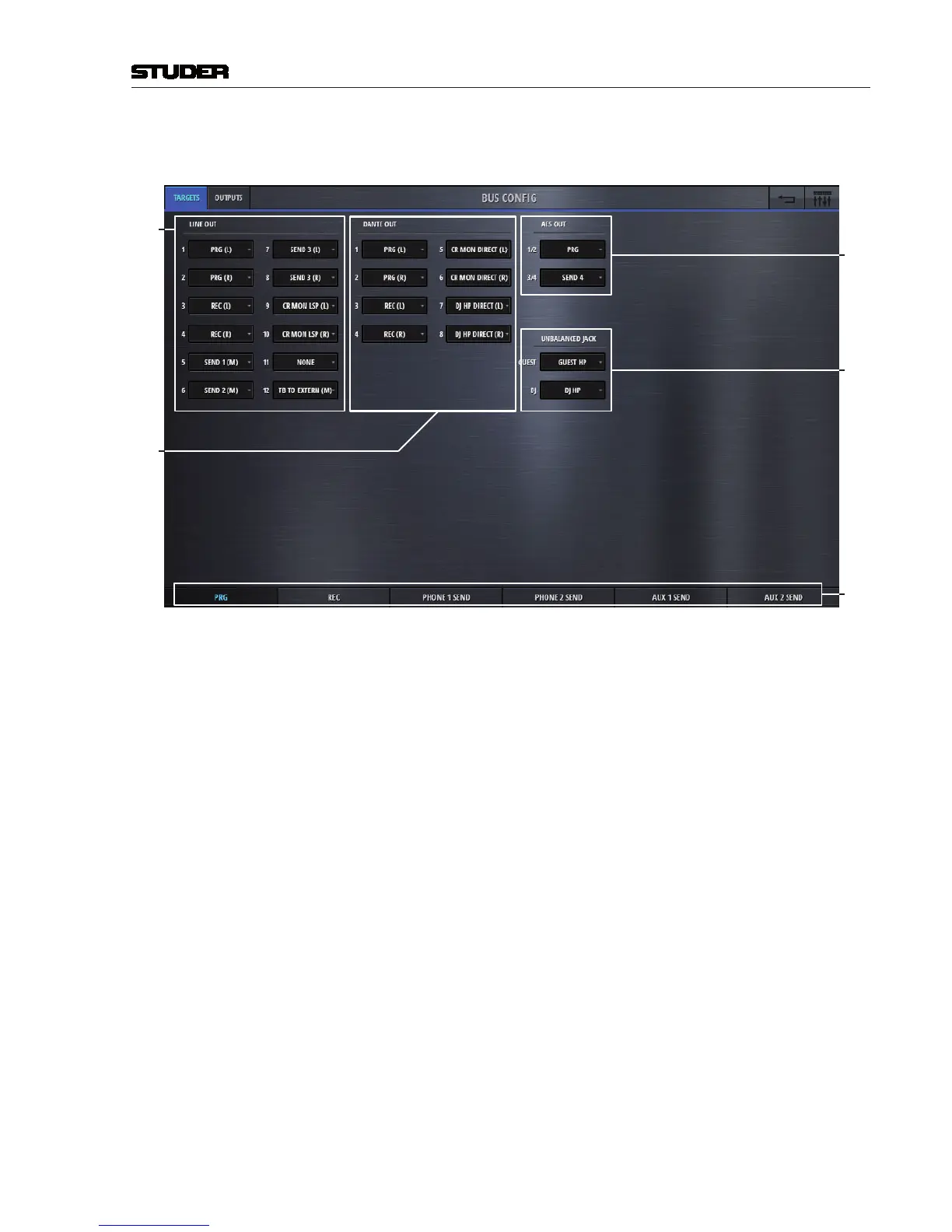

The config page of the busses Target section holds control elements necesarry
to assign mixer internal sources to the output ports.
[1]
[5]
[2]
[3]
[4]
[1] Line Out Here, the sources for the 12 Line Out output ports can be assigned. This is
done by clicking/touching on the source. A choice of all possible sources
appears in a list where simply the desired source can be selected. There are
sources that are marked (L) or (R) or (M). As Line Out ports are mono, only
mono sources can be selected, (L) stands for the left leg of a stereo source,
(R) stands for the right leg of a stereo source, and (M) is the stereo source
downmixed to mono.
[2] Dante Out Here, the sources for the eight Dante Out output ports can be assigned.
[3] AES Out Here, the sources for the two stereo AES Out output ports can be assigned.
[4] Unbalanced Jack Here, the sources for the two stereo headphone output ports can be assigned.
[5] Navigation to other busses Navigation to the config pages of other busses is provided on the bottom bus
navigation bar.
Note : Please note, that this view is the same for all six busses !
The output assignment can only be made once for each output port.
