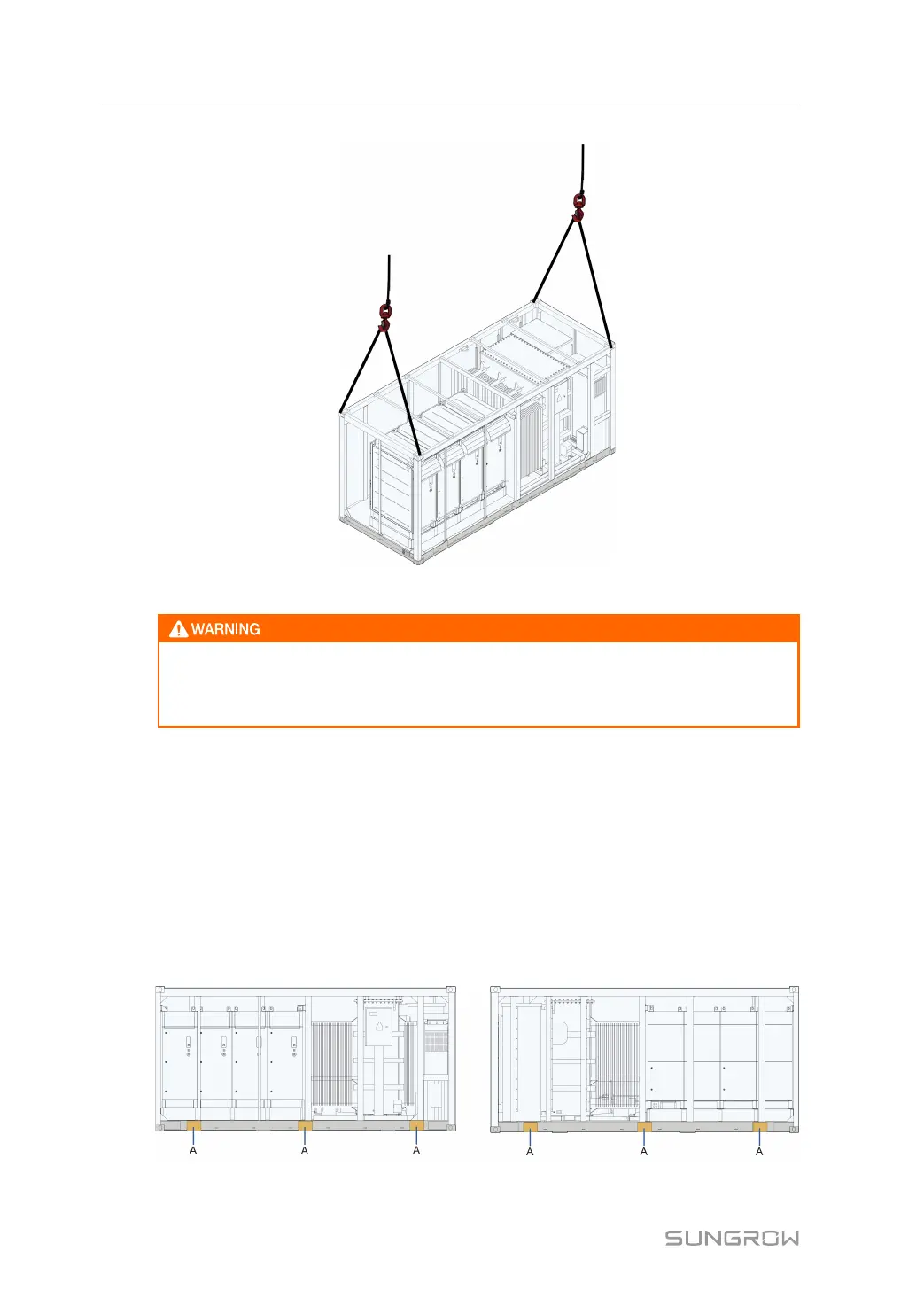

figure 5-3 Hoisting by Two Cranes
Be sure to hoist the product smoothly and evenly to avoid collision and vibration.
Do not turn the product upside down, nor hoist it for a long time. Otherwise, per-
sonal injury or product damage may occur!
5.4.3 Fixing
Hoist the product to the intended location and fix it.
Fixed by Welding
Secure the bottom of the product to the foundation by welding. Take proper measures to pre-
vent the welding point from corrosion after welding.
Fixing by L mounting parts
Fix the fixing point at the bottom of the inverter (shown as A below) with the existing operat-
ing platform using L mounting parts.
The steps to fixing the L mounting parts is shown in the following figure.
5 Mechanical Mounting System Manual
