41

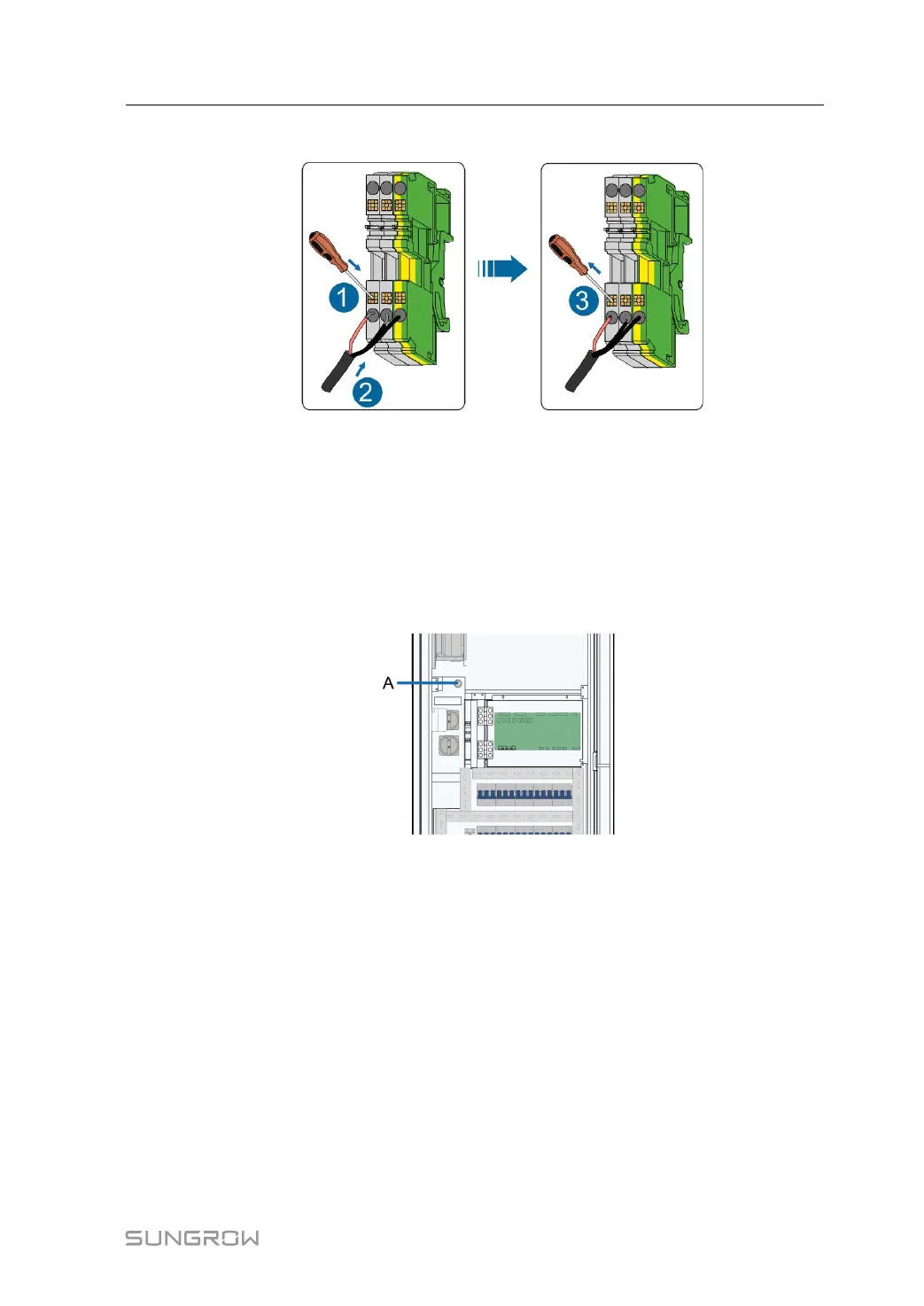

Step 4 Loosen the screwdriver, the metal plate returns and compresses the cable.
* The figure is for reference only. The product received may differ.
- - End
6.8 Ethernet Communication
Overview
The Ethernet communication port in the power distribution cabinet is shown in figure A
below.
Connect external monitoring devices to the Ethernet port by a CAT-5e cable.
6.9 External Equipment Connection
The power distribution cabinet is divided into two versions: 5KVA and 40KVA. The actual MV
Station received may be equipped with one of these versions, and the specific agreement
shall prevail.
If 5KVA is chosen, please refer to"6.9.1 5KVA Power Distribution Cabinet"to perform the
connection.
If 40KVA is chosen, please refer to"6.9.2 40KVA Power Distribution Cabinet"to perform the
connection.
System Manual 6 Electrical Connection
