35

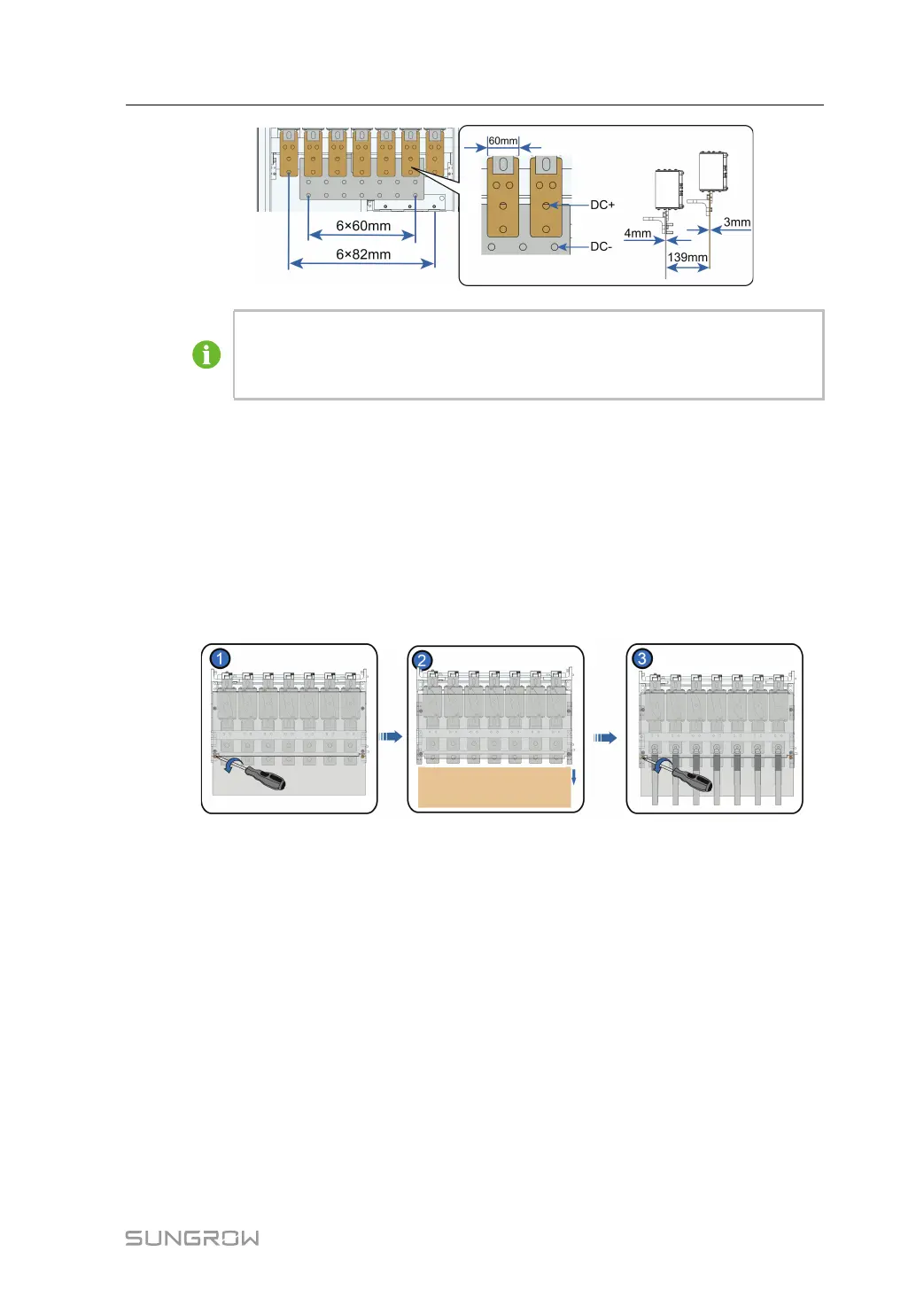

All shown in the figures are 7-way DC input. When DC Input is 6-way, remove the
rightmost DC fuse and DC wiring copper bar; When the DC input is 5-way, remove
one DC fuse and DC wiring copper bar from each end on the left and right.
6.5.2 Installing Insulation Board before Connection
Installing insulation board before cable connections.
Step 1 Remove the two fixing screws on the insulation board with a screwdrive.
Step 2 Move insulation board down onto the bottom plate, and make sure it is placed between the
positive and negative cables.
Step 3 Install the negative and positive DC cables.
Step 4 Move the insulation board upward to its original position and install the two fixing screws.
- - End
* The figure is for reference only. The product received may differ.
6.5.3 Procedure
Step 1 Lead the cable into the wiring area through the inlet hole, and mark the cable polarity.
Step 2 Strip the protective layer of the cable to expose the copper core of the wire with strippers.
System Manual 6 Electrical Connection
