6.9.2 40KVA Power Distribution Cabinet

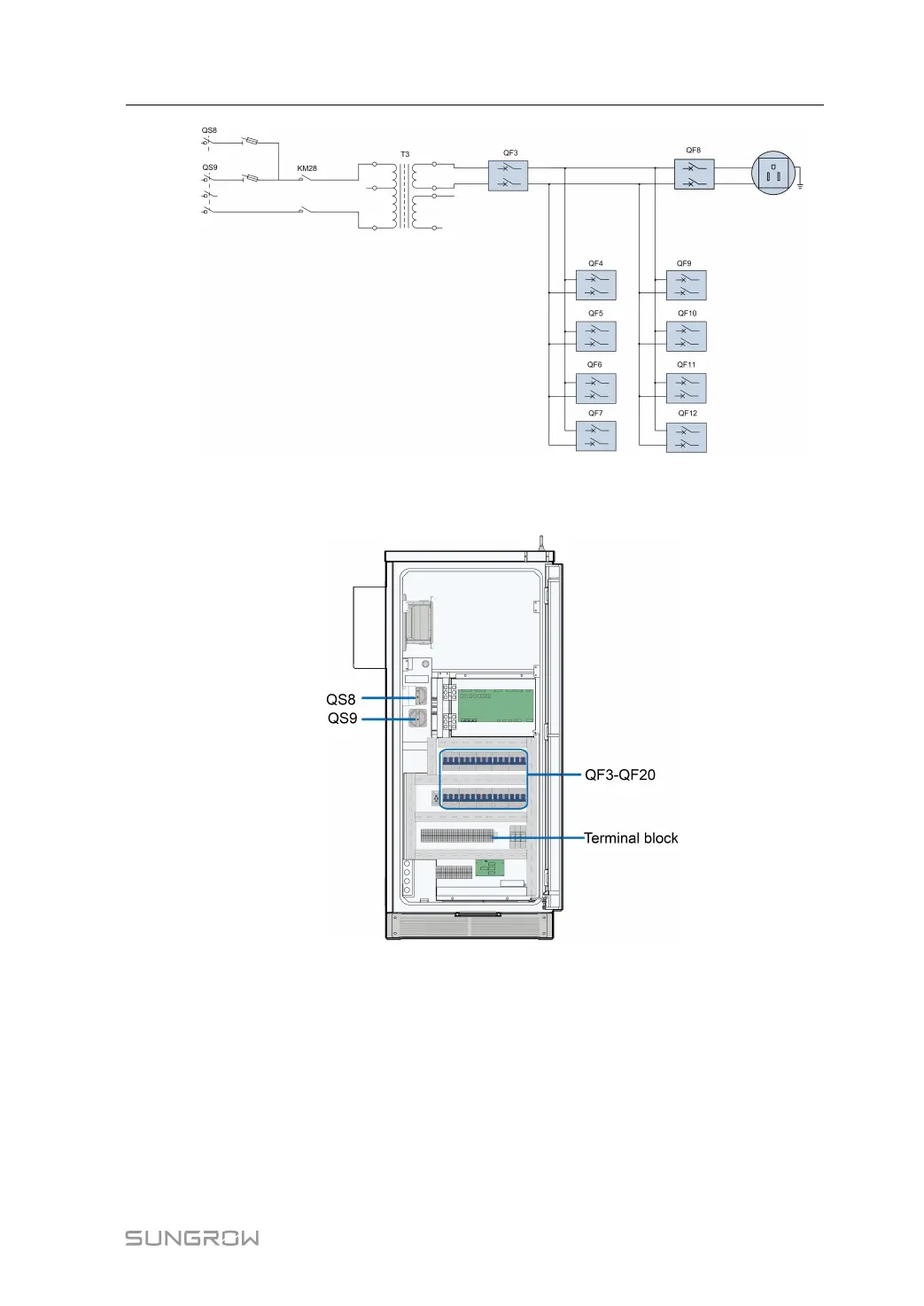

Internal Components
Please refer to the actual product for the specific wiring diagram.
6.9.3 Recommended Cables Installation
The Ethernet and terminal blocks cables in the power distribution cabinet are recommended
to be wired as shown in the following figure. Please refer to"6.3.4.1 Cable Inlet
Preparation"for cable inlet preparation.
System Manual 6 Electrical Connection
