Standard screen (single unit)
The standard screen is always shown
when no keyboard entry is made for
more than 1 minute. It can also be shown
manually with the menu item «Solar
Inverter – Instantaneous Values».
The standard screen shows the most im
-
portant data at a glance. In the first line
you see the momentary feed-in power. In
the second line the fed-in energy for the
day is shown.
The status signals the unit status with the
following messages:
MPP Feeding in MPP mode
AC cur.lim. Feeding with AC current
limitation
DC cur.lim. Feeding with DC current
limitation
Temp.lim. Feeding with temperature
limitation
Output lim. Feeding with output
limitation
Feed. Feeding
Warning A warning has been output
Error An error has occurred
Night Night mode
Start Initialisation phase of
unit
COM-Upd The communication soft-
ware is being updated
DSP-Upd The control software is
being updated

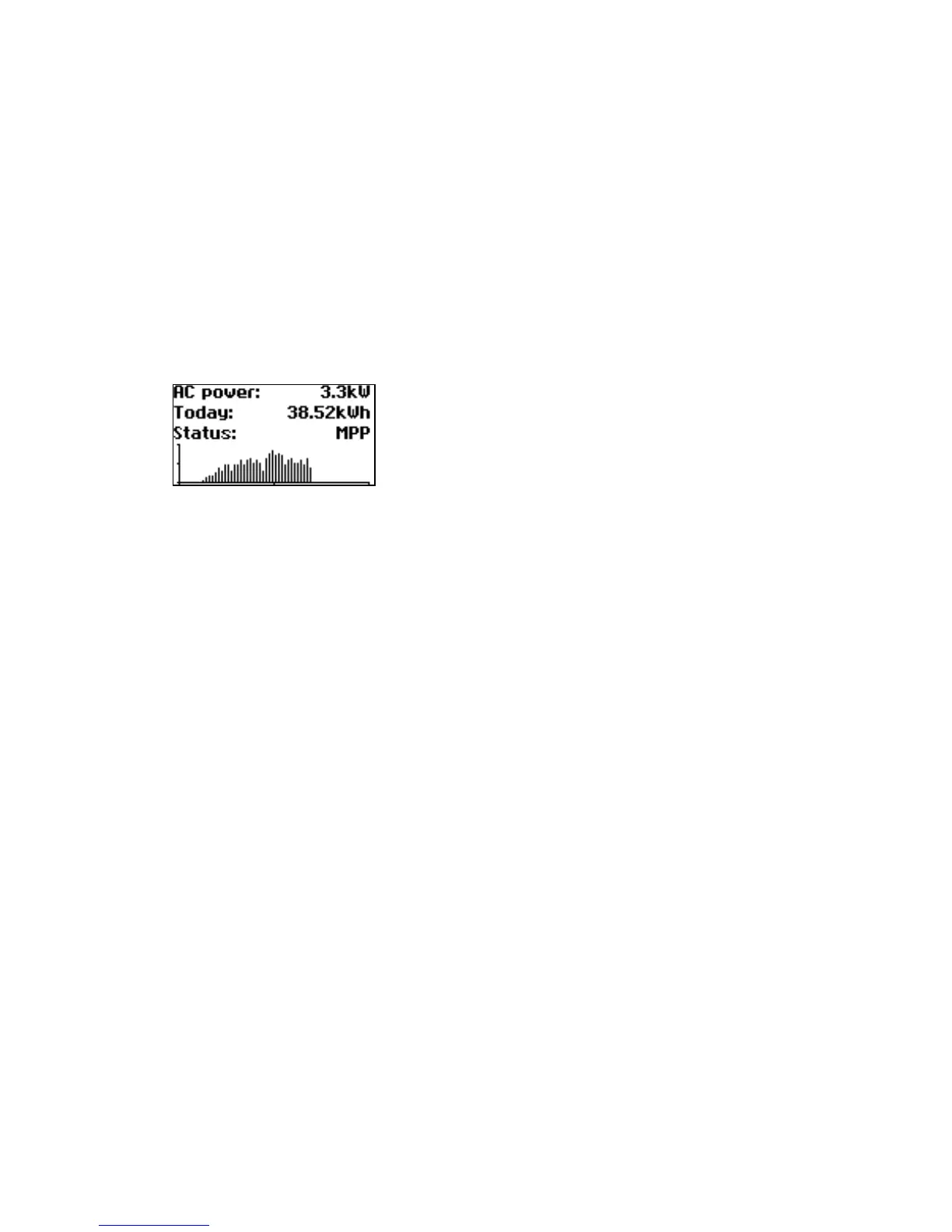

The graphic in the lower section of the
screen shows the energy fed in for the
day as a bar graph. The current period
is shown as a flashing bar, as it is still
increasing.
