Fuel System: 1G-10
Fuel Tank Removal and Installation
B823H11706010
Removal
WARNING
!
• Keep away from fire or spark.
• Spilled gasoline should be wiped off
immediately.
• Work in a well-ventilated area.

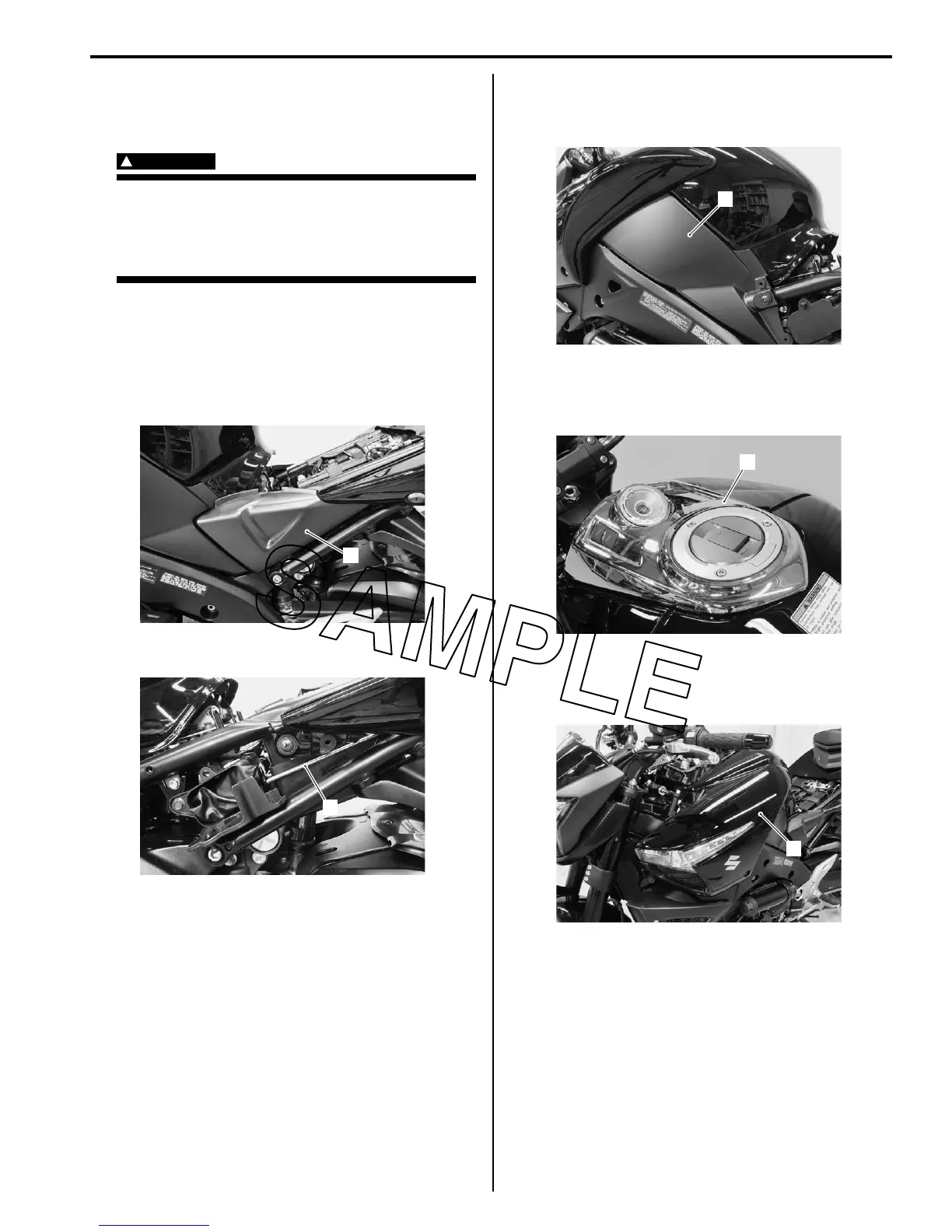

1) Remove the front seat. Refer to “Exterior Parts
Removal and Installation in Section 9D (Page 9D-
14)”.
2) Remove the frame side covers (1). Refer to “Exterior
Parts Removal and Installation in Section 9D
(Page 9D-14)”.
3) Take out the fuel tank prop stay (2).
4) Remove the front frame side covers (3). Refer to
“Exterior Parts Removal and Installation in Section
9D (Page 9D-14)”.
5) Remove the fuel tank upper cover (center) (4). Refer
to “Exterior Parts Removal and Installation in Section
9D (Page 9D-14)”.
6) Remove the fuel tank side covers (5). Refer to
“Exterior Parts Removal and Installation in Section
9D (Page 9D-14)”.
1
I823H1170001-01
2
I823H1170002-01
3
I823H1170003-01
4
I823H1170004-01
5
I823H1170005-01
To Next Page
