Suzuki GSX1300BK B-King - Cushion Lever Bearing Removal and Installation

Rear Suspension: 2C-7
Cushion Rod
Refer to “Swingarm Related Parts Inspection (Page 2C-
11)”.

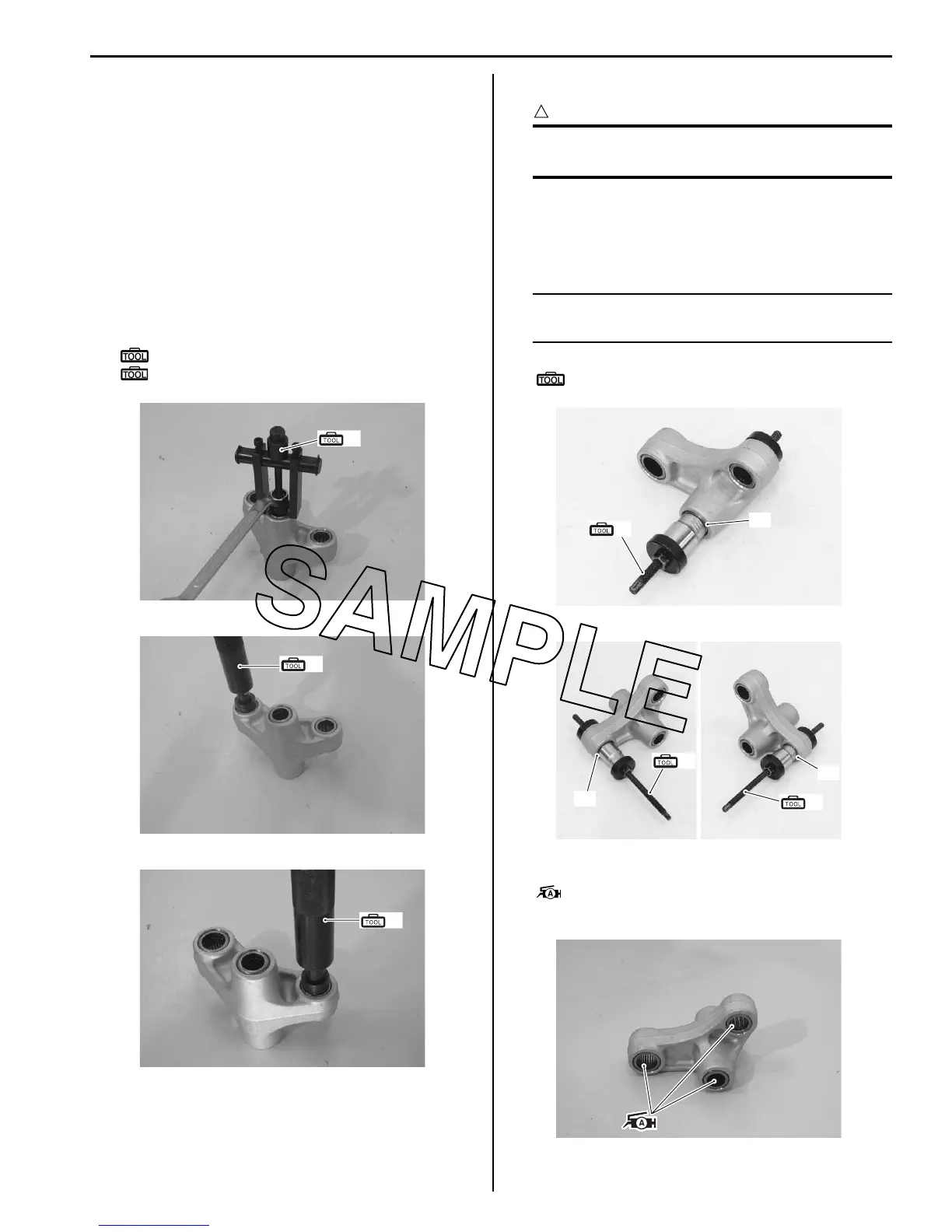

Cushion Lever Bearing Removal and
Installation
B823H12306010
Removal
1) Remove the cushion lever. Refer to “Cushion Lever
Removal and Installation (Page 2C-6)”.
2) Remove the cushion lever bearings using the special
tools.
Special tool
(A): 09921–20240 (Bearing remover set)
(B): 09913–70210 (Bearing installer set)
Installation
CAUTION
!
The removed bearings must be replaced with
new ones.
1) Press the bearings into the cushion lever at 1 mm
(0.04 in) depth “A” and 0.5 mm (0.02 in) depth “B”
from the cushion laver surface with the special tool
and suitable size socket wrench.
NOTE
When installing the bearing, stamped mark
on the bearing must face outside.
Special tool
(A): 09924–84521 (Bearing installer set)
2) Apply grease to the bearings.
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
3) Install the cushion lever. Refer to “Cushion Lever
Removal and Installation (Page 2C-6)”.
(A)
I823H1230016-01
(B)
I823H1230017-02
(B)
I823H1230018-01
“A”
(A)
I823H1230043-01
(A)
(A)
“B”
“B”
I823H1230044-01
I823H1230019-01
