Suzuki GSX1300BK B-King - Repair Instructions; Heated Oxygen Sensor (HO2 S) Construction; Heated Oxygen Sensor (HO2 S) Removal and Installation

Emission Control Devices: 1B-9
Repair Instructions

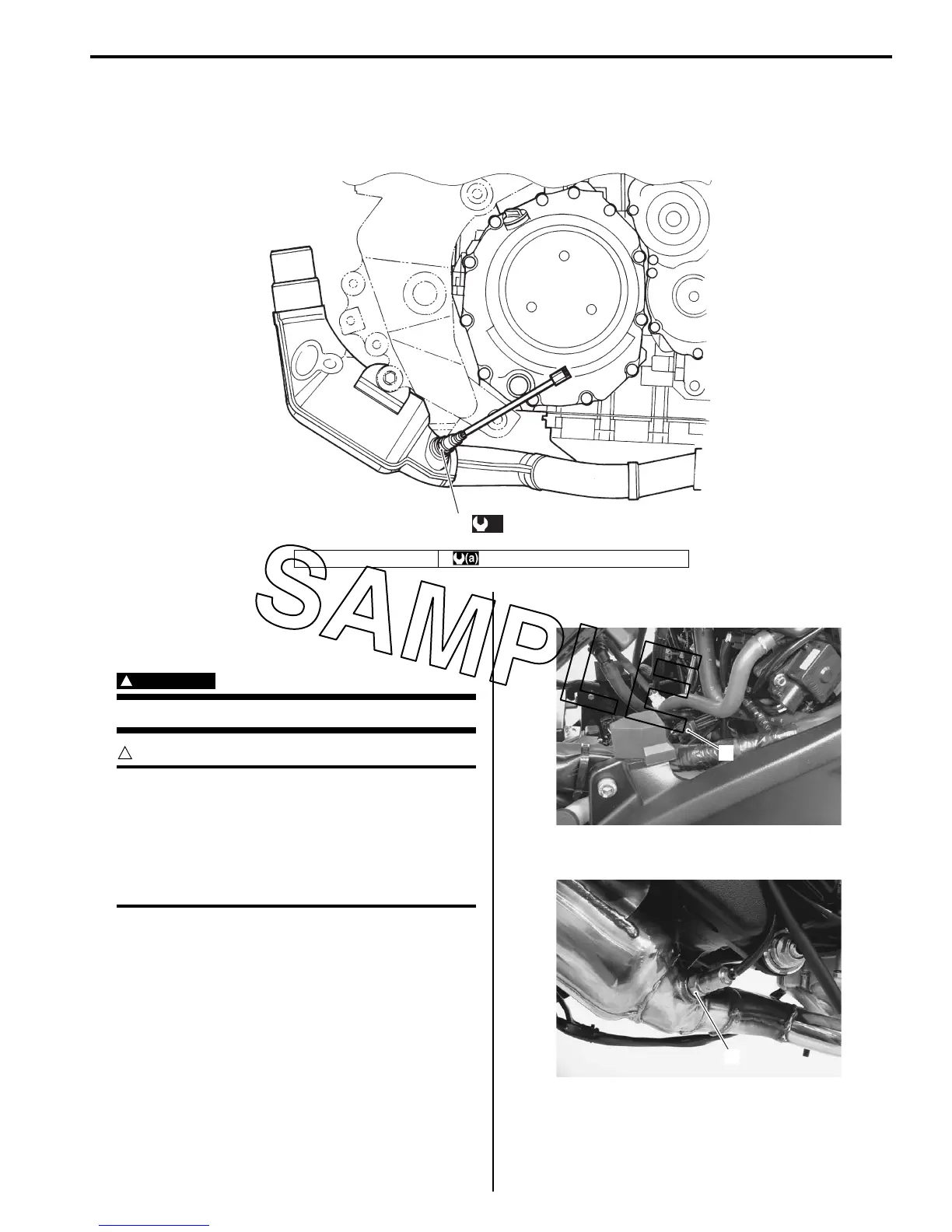

Heated Oxygen Sensor (HO2S) Construction
B823H11206011
Heated Oxygen Sensor (HO2S) Removal and
Installation
B823H11206001
Removal
WARNING
!
Do not remove the HO2 sensor while it is hot.
CAUTION
!
• Be careful not to expose the HO2 sensor to
excessive shock.
• Do not use an impact wrench when
removing or installing the HO2 sensor.
• Be careful not to twist or damage the
sensor lead wires.
1) Remove the under cowling. Refer to “Exterior Parts
Removal and Installation in Section 9D (Page 9D-
14)”.
2) Lift and support the fuel tank. Refer to “Fuel Tank
Removal and Installation in Section 1G (Page 1G-
10)”.
3) Disconnect the HO2 sensor coupler (1).
4) Remove the HO2 sensor (2).
(a)
1
I823H1120040-04
1. HO2 sensor : 25 Nm (2.5 kgf-m, 18.0 lb-ft)
1
I823H1110152-01
2
I823H1120006-01
